1.1 Introduction to the user interface

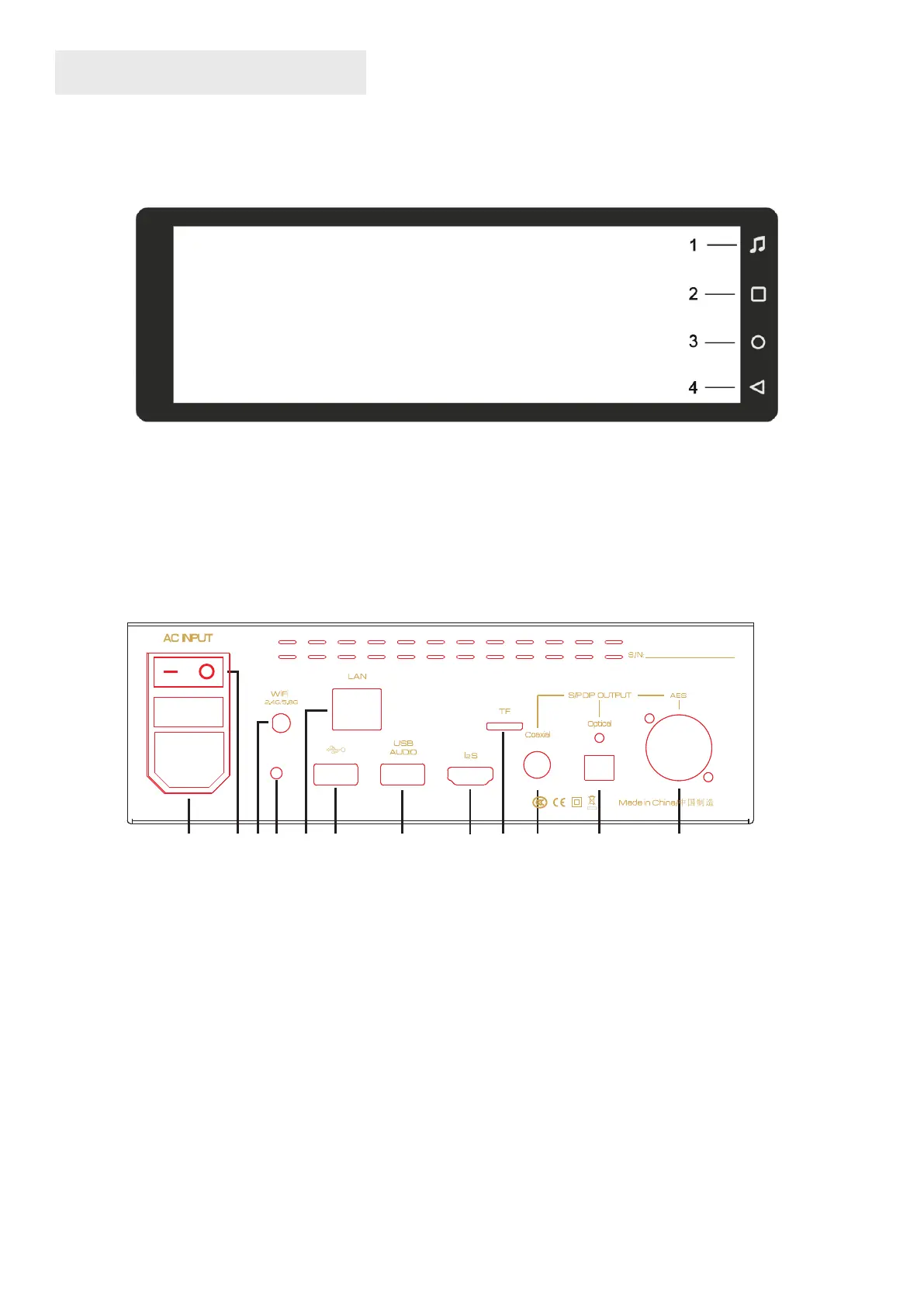

Front：（MX- , MX-1A ）Pro , MX-2A Pro
1. HiFiPlayer software short key
2. Android system touch button [task button]
3. Android system touch button [home button], switch back to the desktop
4. Android system touch button [Back button]
1 Getting started
4
1
2
3
4
5
6
7
8 9 10
11 12
MX-Pro:
MX Pro
1. Power supply AC110 / 230V connector;
2. Power on / off switch button;
3. WIFI2.4G / 5G, Bluetooth 4 antenna connector;
4. System button: short press: screen on / off, long press: soft shutdown / restart;
5. 100MBit / 1GBit Ethernet interface: connect to 100MBit / 1GBit Ethernet through the
network cable;
6. USB1 device connector: connect local devices, such as mobile hard disk, USB
drives;
7. USB2 audio output connector: connect external decoder with the USB cable;
8. I2S output connector, (I2S interface definition map see Section 2.4);
9. TF card reader;
10. S/PDIF (coaxial) output connector;
11. Optical (Toslink) output connector;
12. Balanced output connector;
