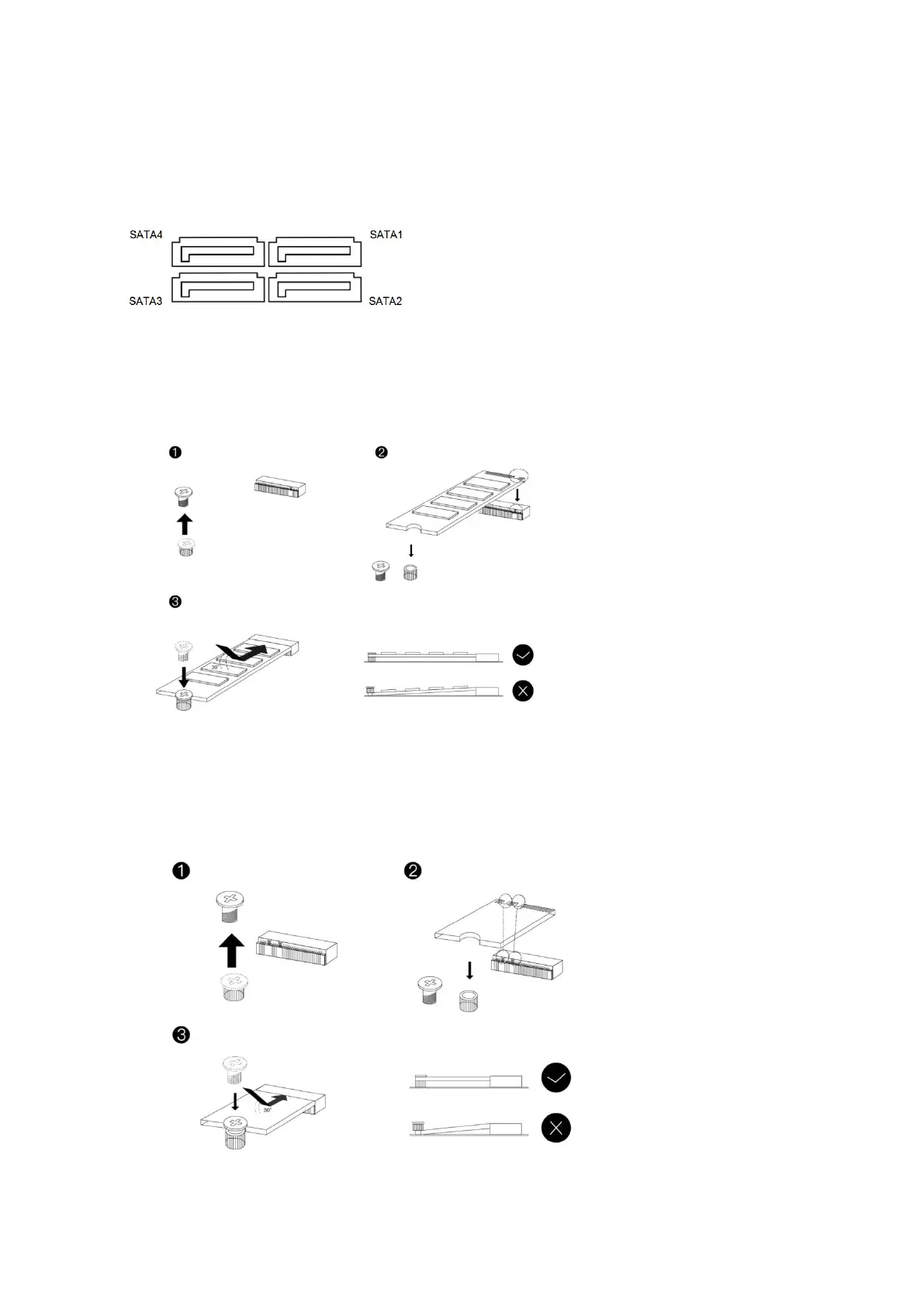

SATA1~4: SATA 3.0 Connectors
These connectors are SATA 6Gb/s interface ports. Each SATA connector supports a single
SATA device.
M.2 Slot
Insert your M.2 SSD into the M.2 slot at a 30-degree angle. Secure the M.2 SSD in place with
the scr ew.
WLAN-1 Slot
The M.2 WiFi interface, which is compatible with WiFi AC standard expansion cards, can be
used after the M.2 WiFi module is installed and the corresponding driver is loaded.
