JL Audio Fathom f113v2 User Manual

Pg 27 | EN
|
Fathom
®
v2
EN

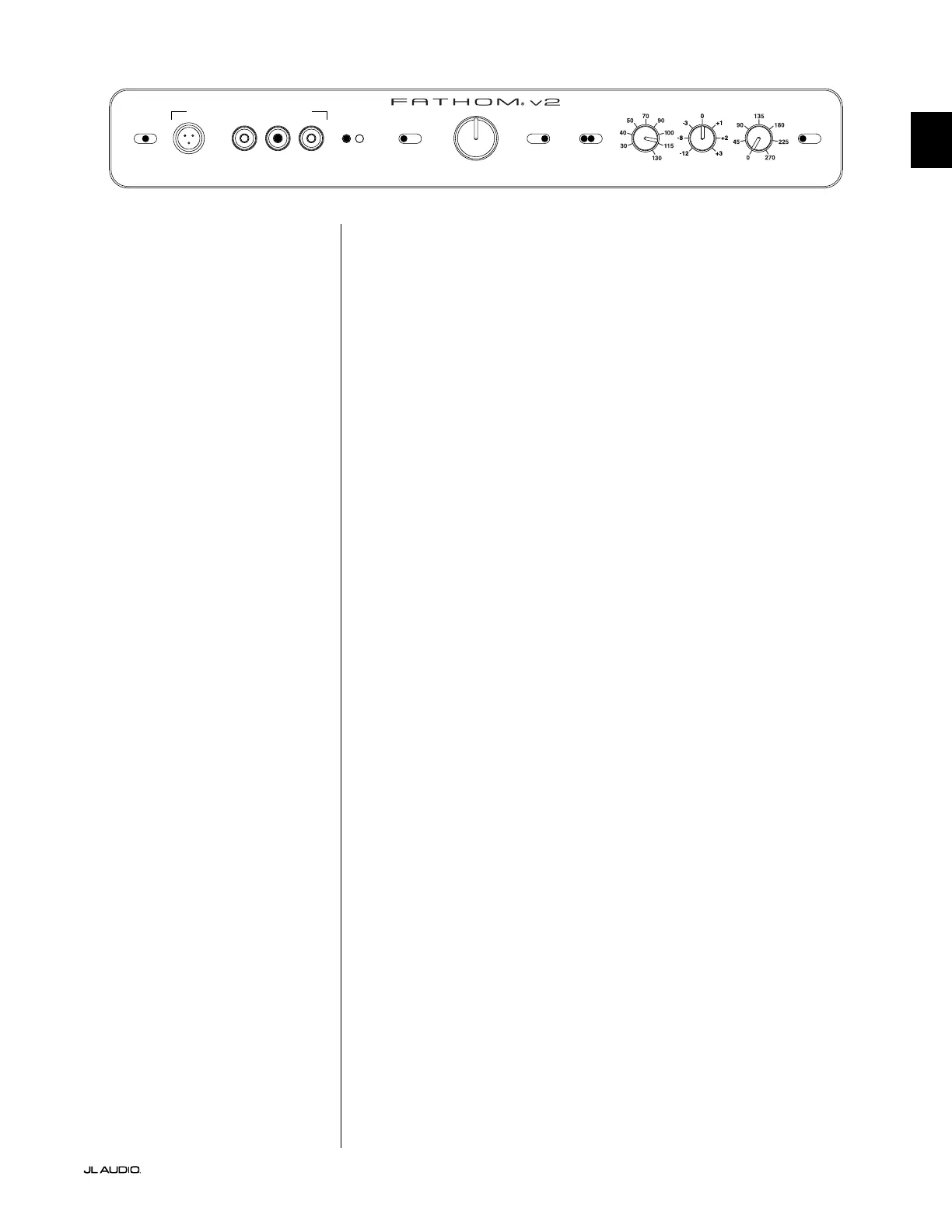

On the Fathom v2’s Front Panel:
Please turn o the home theater receiver or preamp/processor to make these
adjustments.
1. “Power” Switch
Flip each Fathom v2’s “Power” switch to the “On” position.
2. “Lights” Switch
Flip each Fathom v2’s “Lights” switch to the “On” position. If you don’t see
any lights on the front panel, you may have forgotten to plug the Fathom v2
in or there may be a problem with the electrical circuit.
3. “Input Mode” Indicator Lights
If you are using a single Fathom v2, conrm that its “Input Mode” indicator
light is on the “Master” position. If not, you will need to access the upper
“Input Mode” switch on the rear panel of the Fathom v2.
If you are using multiple Fathom v2s in a Master/Slave conguration,
conrm that the unit connected directly to your receiver or preamp/
processor is indicating “Master” on its “Input Mode” lights and that all other
units are indicating “Slave” on their “Input Mode” lights. If not, you will
need to access the upper “Input Mode” switches on the rear panels of the
Fathom v2s.
4. “Level Mode” Switch
Flip the master Fathom v2’s “Level Mode” switch to the “REF” position.
5. “LP Filter” Switch
If your home theater receiver/processor is handling bass management
(speakers set on “small”) or if you are using an outboard crossover/bass-
management processor, ip the master Fathom v2’s “LP Filter” switch to
“OFF.” If not, select the “12 dB” position.
6. “LP Freq. (Hz)” Knob
Rotate the “LP Freq.” knob to the “80 Hz” position.
7. “e.l.f. trim (dB)” Knob
Rotate the “e.l.f. trim” knob to “0”
8. “Polarity” Switch
Flip the “Polarity” switch to “0”.
9. “phase (deg.)” Knob
Rotate the “phase” knob to “0” degrees
10. D.A.R.O. Defeat Switch
Press the D.A.R.O. defeat switch so that the
red light in the switch remains lit.
LP freq. (Hz) e.l.f. trim (dB) phase (deg.)
Polarity
0
|
180 deg.
LP Filter
o
|
12dB
|
24dB
Master Level
max
0
Lights
o
|
dim
|
on
-∞
Level Mode
ref.
|
variable
Input Mode
master
|
slave
calibration mic. demo defeat calibrate
Power
o
|
on
|
auto
Digital Automatic Room Optimization
