b. 3-Phase (3ø) Wiring Connections (hookup) - For Non-Reversing Models Only
The electrical connections on ALL 3-phase (3ø) gas model dryers are made into the rear service box
located at the upper left area of the dryer.
NOTE: A CIRCUIT SERVICING EACH DRYER MUST BE PROVIDED.
If local codes permit, power to a gas dryer can be made by the use of a flexible U.L. listed power cord/
pigtail (wire size must conform to rating of dryer), or the dryer can be hard wired directly to the
service breaker panel. In ALL cases, a strain relief must be installed where the wiring enters the
dryer.

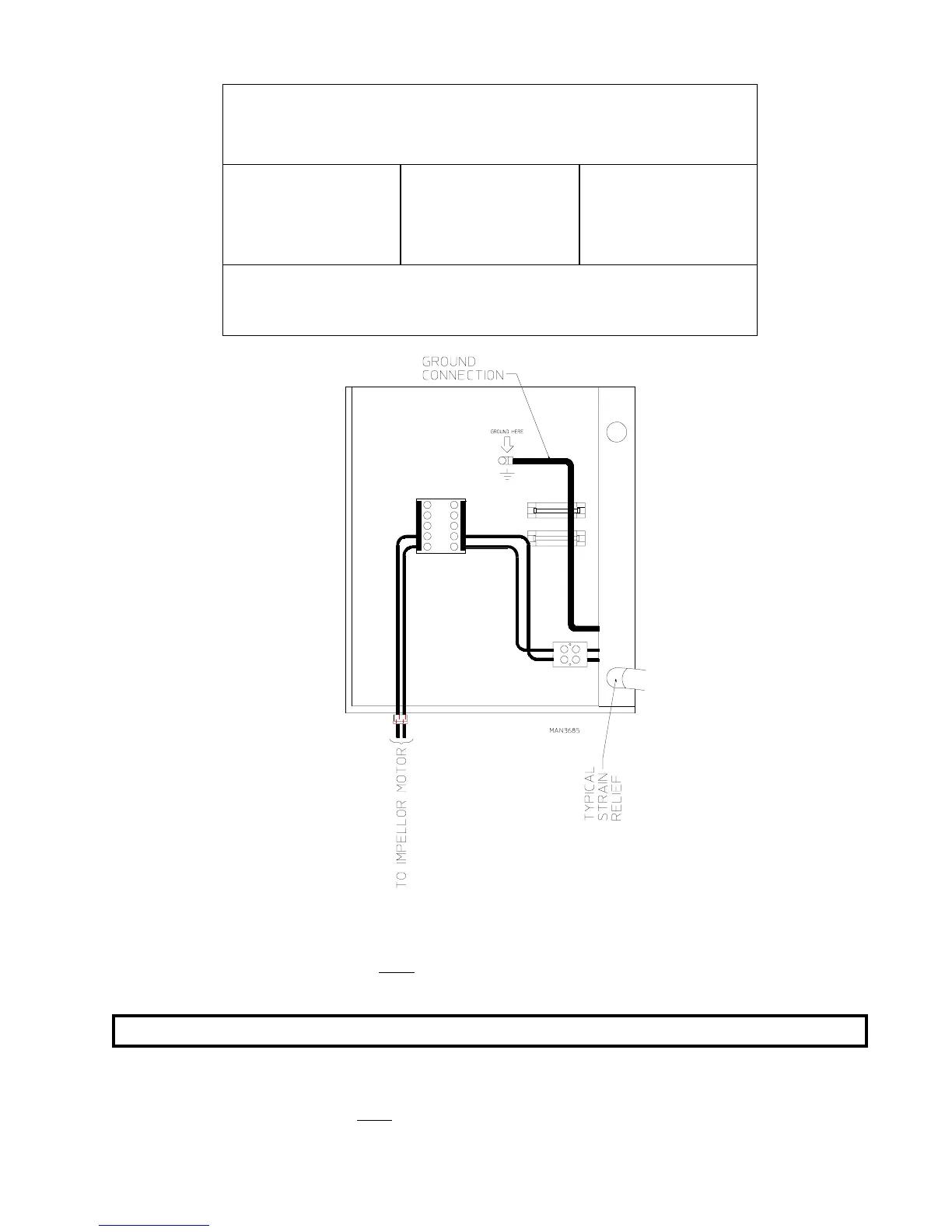

SINGLE-PHASE (1Ø) ELECTRICAL
CONNECTION LEADS
Black
+
Positive
White
-
Neutral
Green
Ground
or
L2
