BEFORE YOU START!
CHECK LOCAL CODES AND PERMITS
Call your local water company or the proper municipal authority for information regarding local codes.
IMPORTANT: It is your responsibility to have ALL plumbing connections made by a qualified
professional to assure that the plumbing installation is adequate and conforms to local,
state, and federal regulations or codes.
IMPORTANT: It is the installation or owners responsibility to see that the necessary or required
water, water pressure, pipe size, or connections are provided. The manufacturer
assumes no responsibility if the sensor activated fire extinguishing (S.A.F.E.) system is
not connected, installed, or maintained properly.
INSTALLATION
1. Requirements
The connection point to the electric water solenoid valve is a 3/4” M.P.T., the S.A.F.E. system must be
supplied with a minimum water pipe size of 1/2” and be provided with 40 psi +/- 20 psi (2.75 bar +/- 1.37
bar) of pressure. For use of optional manual bypass, a second source with the same piping and pressure
requirements is required.
Flexible 1/2 feeds must be provided to avoid damage to electric water solenoid valve by vibration.
IMPORTANT: Flexible supply line/coupling must be used. Solenoid valve failure due to hard
plumbing connections WILL VOID WARRANTY.
If the rear area of the dryer, or the water supply is located in an area where it will be exposed to cold/
freezing temperatures, provisions must be made to protect these water lines from freezing.
WARNING: If the water in the supply line or water solenoid valve freezes, the S.A.F.E. system will
be INOPERATIVE!!
IMPORTANT: Appliance is to be connected to the water mains using a new hose set and the old
hose set should not be reused.

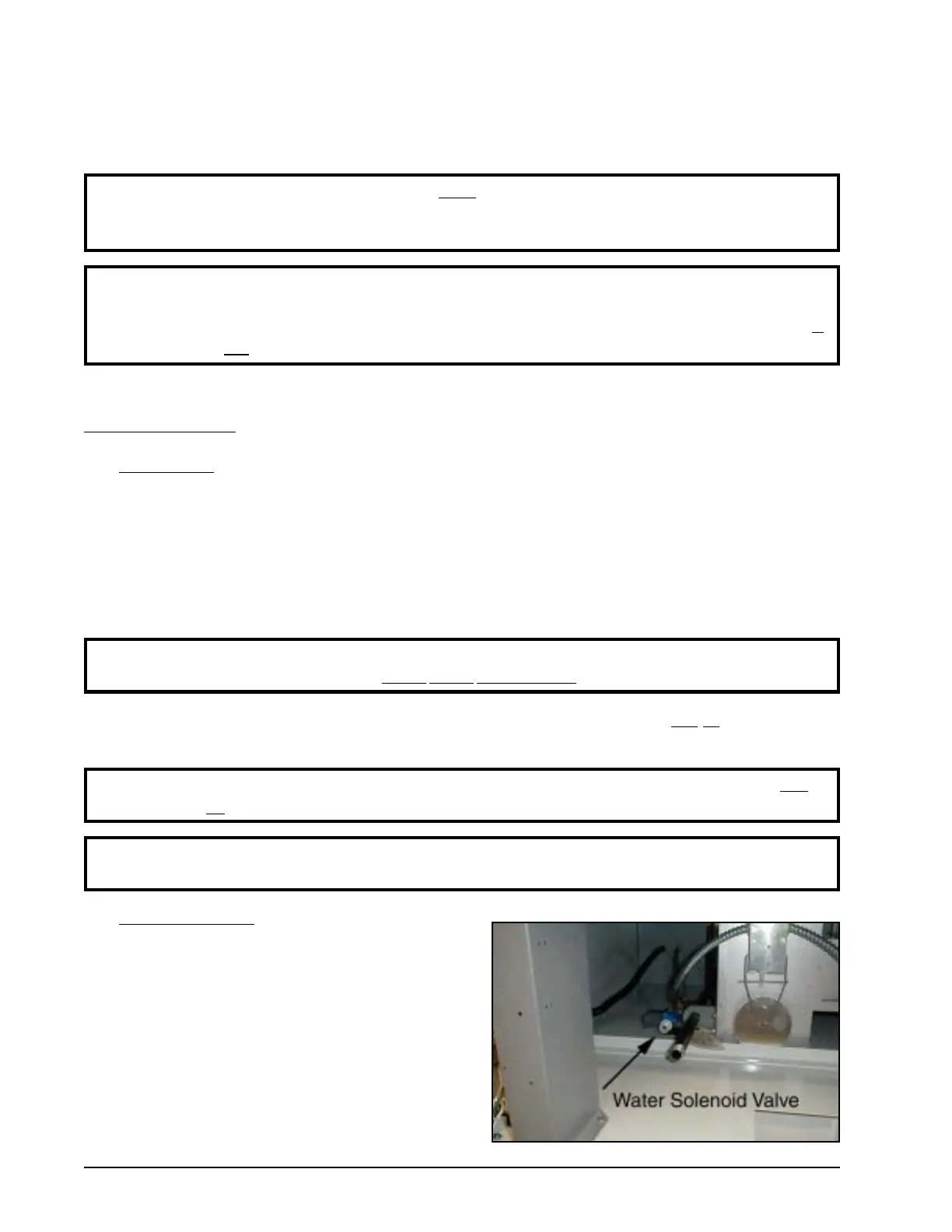

2. Water Connections:
The water connection is made to the 3/4” M.P.T.
bushing, located at the rear upper left area of the
dryer (refer to photograph). The water solenoid
valve has a 3/8” M.P.T. connection and a 3/4”
bushing is supplied to provide the minimum 1/2”
supply (feed) line. Flexible supply line/coupling
must be used in effort to avoid damage to electric
water solenoid valve.
