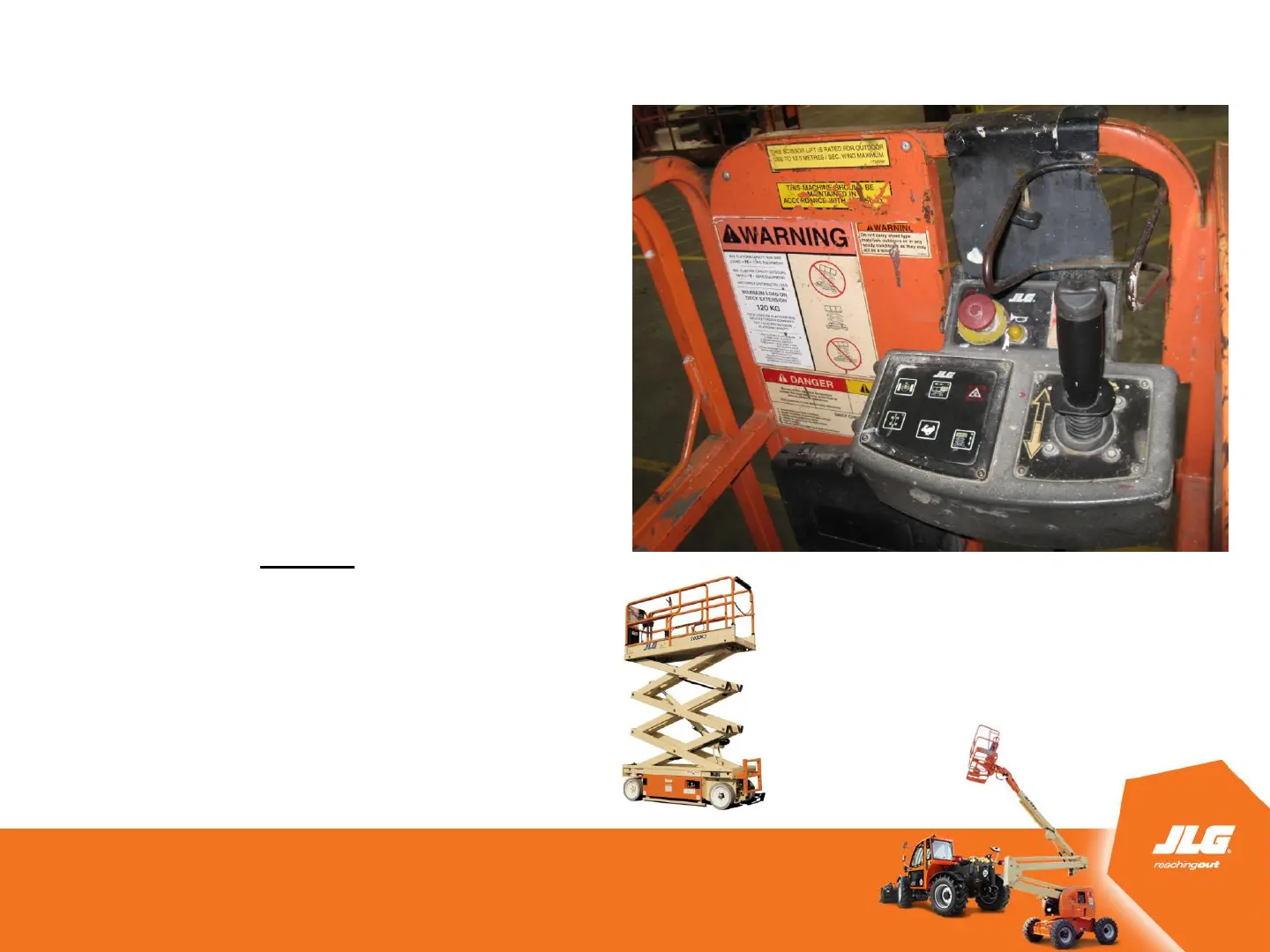

JLG E3 Series Scissor lift 1532E3,1932E3, 2033E3, 2046E3, 2646E3, 2658E3
Mechanical protection:
Joystick controller protected by external
metal guard over the control box.
Platform control Box mounted on front
rail.
Control System:
Red Emergency switch shuts down all
platform functions.
Drive and lift momentary selector switch
allows either drive or lift. Operator to
select. Times out after 3 seconds.
Joystick activation without the trigger
switch will prevent movement.
Trigger switch times out after 3 second
inactivity to prevent misuse.
Joystick proportional function requires
trigger switch to be activated before
moving joystick.
