SECTION 3 - CHASSIS & TURNTABLE
3121813 – JLG Lift – 3-33
17. Elbow Fitting
18. Fittings
19. Ferrule
20. Tubing Assembly
21. Fitting
29. Plug
31. Motor Control Valve
33. Washers
34. Bolts

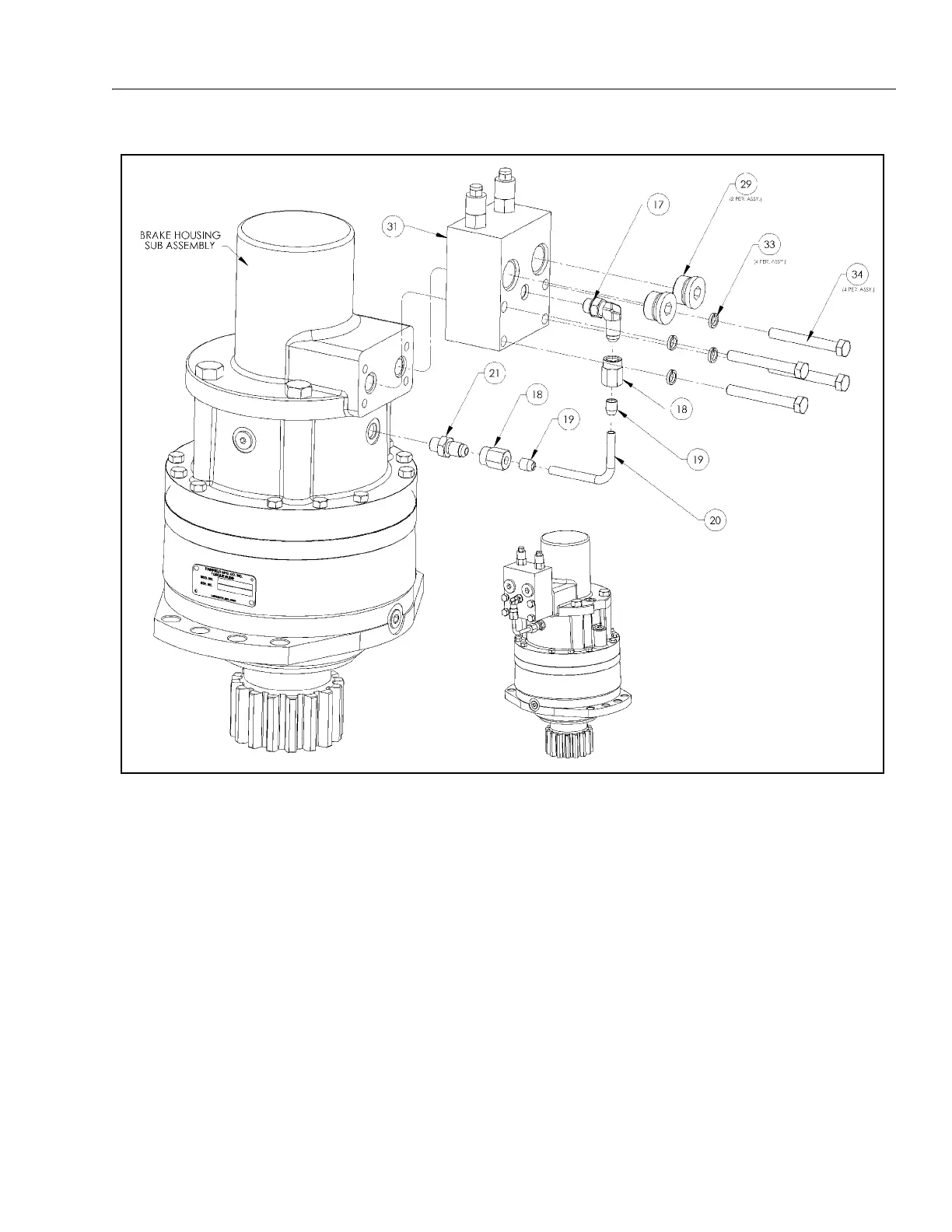

Figure 3-18. Motor Control Valve Disassembly
