• State of Charge (SOC) Percentage
• Hour Glass Indicator: Remaining time of the current battery ca-
pacity based on the last 30 minutes of usage (configurable by
the operator).

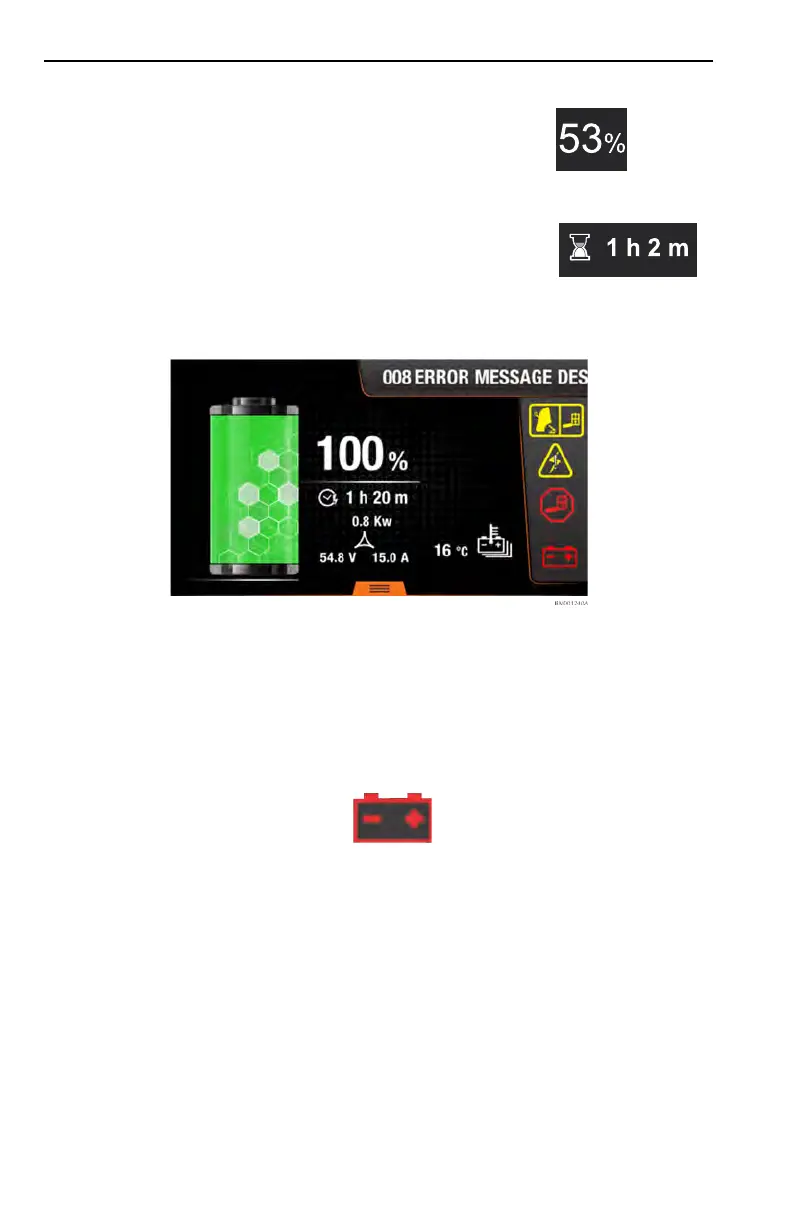

4.15.2 Multifunction Display Charging
• Clock: Time remaining until bulk phase and equalization charge phase have
completed
• Power: How much charge current the batteries are receiving
• State of Charge (SOC) Percentage
• 12V System Low Voltage Warning: Indicates the 12V system has low voltage..
When the batteries are charging, the white hexagons will move in sequence from
bottom to the top.
The hexagons light up in an irregular pattern when the SOC os 100%.
53
%
1 h 2 m
