JLG EC520AJ - Platform Control Station

Machine Controls and Indicators
EC450AJ, EC520AJ
31219187
47

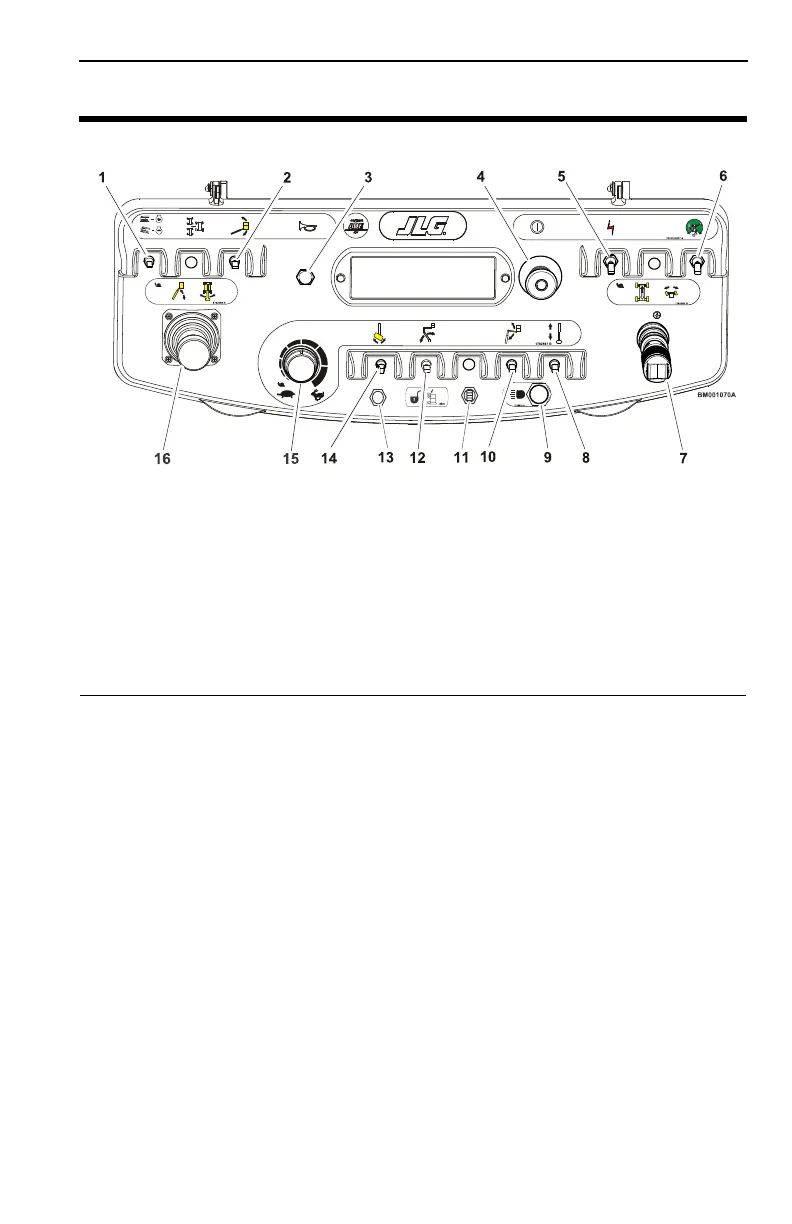

3.5 PLATFORM CONTROL STATION
1. Maximum Speed / Reduced Speed 9. Lights
2. Platform Leveling Override 10. Jib Lift
3. Horn
11. SkyGuard Override
4. Power / Emergency Stop
12. Tower Boom Lift
5. Auxiliary Descent 13. SkyGuard Indicator
6. Drive Orientation Override 14. Platform Rotate
15
1001107677 A
1702676 D
1702566 B
1702565 B
1702567 B
1705170 A
1
2
3
4
7
6
5
8
9
10
11
12
13
14
16
BM001070A
