IC300 ASSEMBLY
The bike has been assembled and tested at the factory, so you shouldn’t have any
problems putting all the parts together. Components are designed to fit together, and
only basic tools are required for the assembly process. Inside the box you will find a Tools
Pack (Hex Allen Key, Multi-tool, Washers and Bolts). See previous page.
To assemble your JLL IC300 please follow these easy steps:

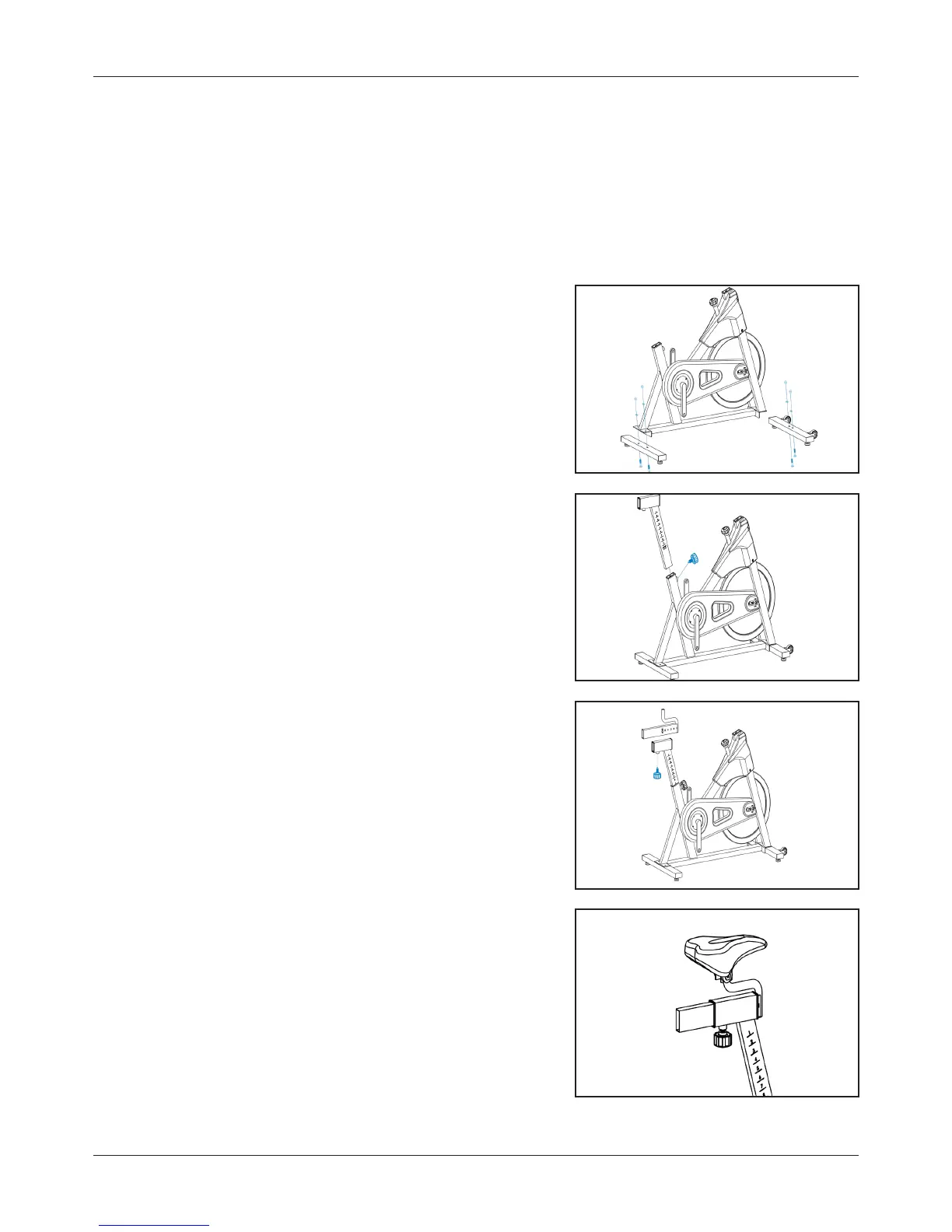

STEP 1
Attach the front and rear stabilisers to the main
frame using 4 x M8*42 carriage bolts, 4 x flat
washers and 4 x M8 domed nuts.
STEP 2
Slide the verticle seat post into the frame and secure
using the spring loaded knob.
STEP 3
Attach the horizontal seat post to the verticle seat
post and secure using another spring loaded knob.
STEP 4
Attach the saddle to the seat post and tighten both
sides using the mutli-tool and spanner.
To Next Page
