主机翼与机身对接
Main wing and fuselage docking

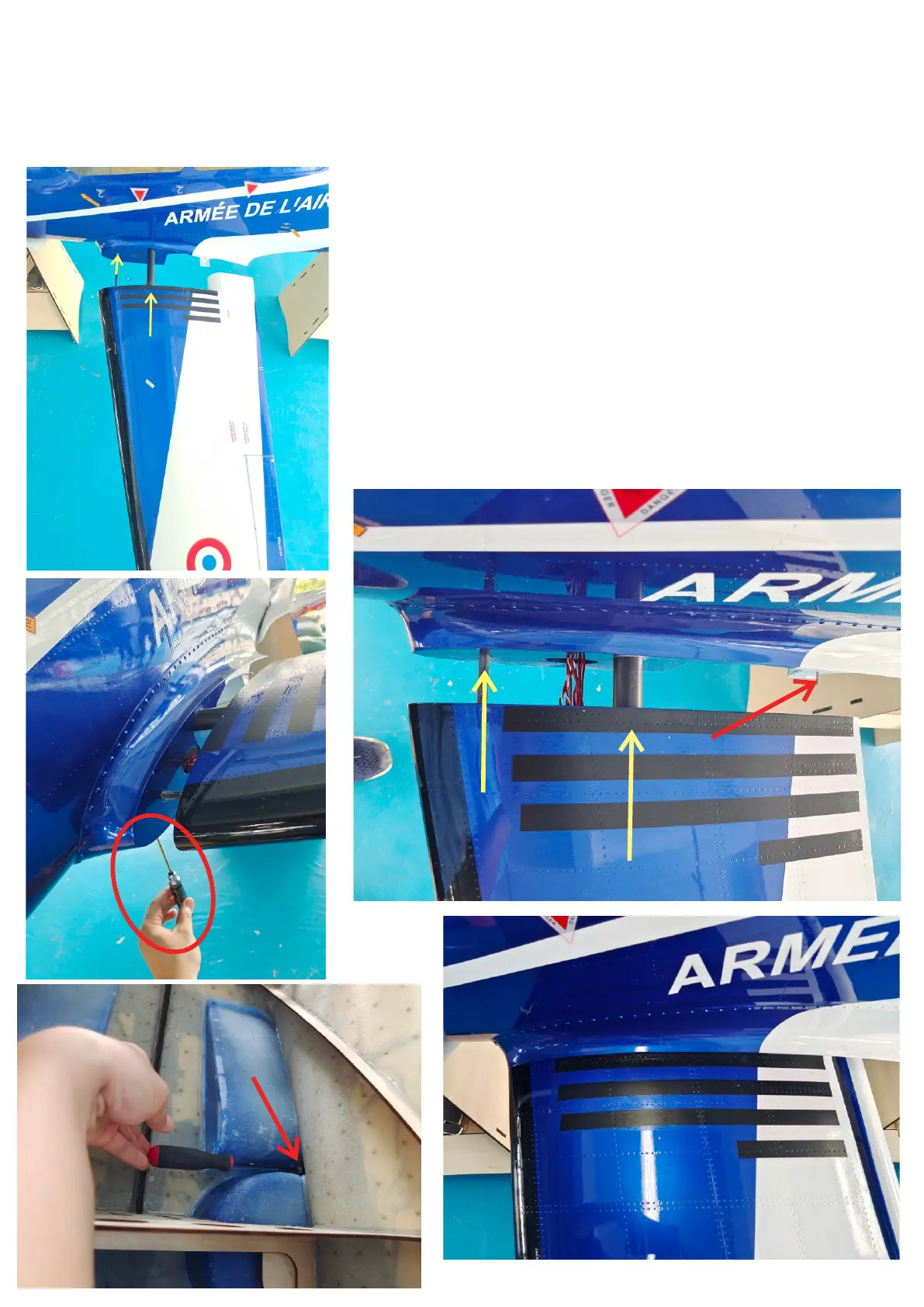

①主机翼使用的是φ30x1380mm碳纤维管将两个机翼对接到机身上。
②如图2红箭头所示，螺丝规格：M4x25mm内六角螺丝，对应的螺丝孔是在机翼上。
机翼机身对接到位后使用3.0六角螺丝刀在机身里用适当的力拧紧，如图4所示。
③如图3红圈所示，机翼机身对接到位后，在机身下
表面有颗孔，用2.5六角螺丝刀插入，用适当的力拧
紧。
① The main wing uses φ30x1380mm carbon fiber tubes to
connect the two wings to the fuselage. ② As shown by the
red arrow in Figure 2, the screw specification: M4x25mm
hexagon socket screw, the corresponding screw hole is on
the wing. After the wing fuselage is docked in place, use a
3.0 hex screwdriver to tighten it from the inside of the
fuselage, as shown in Figure 4. ③ As shown by the red circle
in Figure 3, after the wing fuselage is docked in place, there
is a hole on the lower surface of the fuselage. Insert it with a
2.5 hex screwdriver and tighten it with appropriate force.
