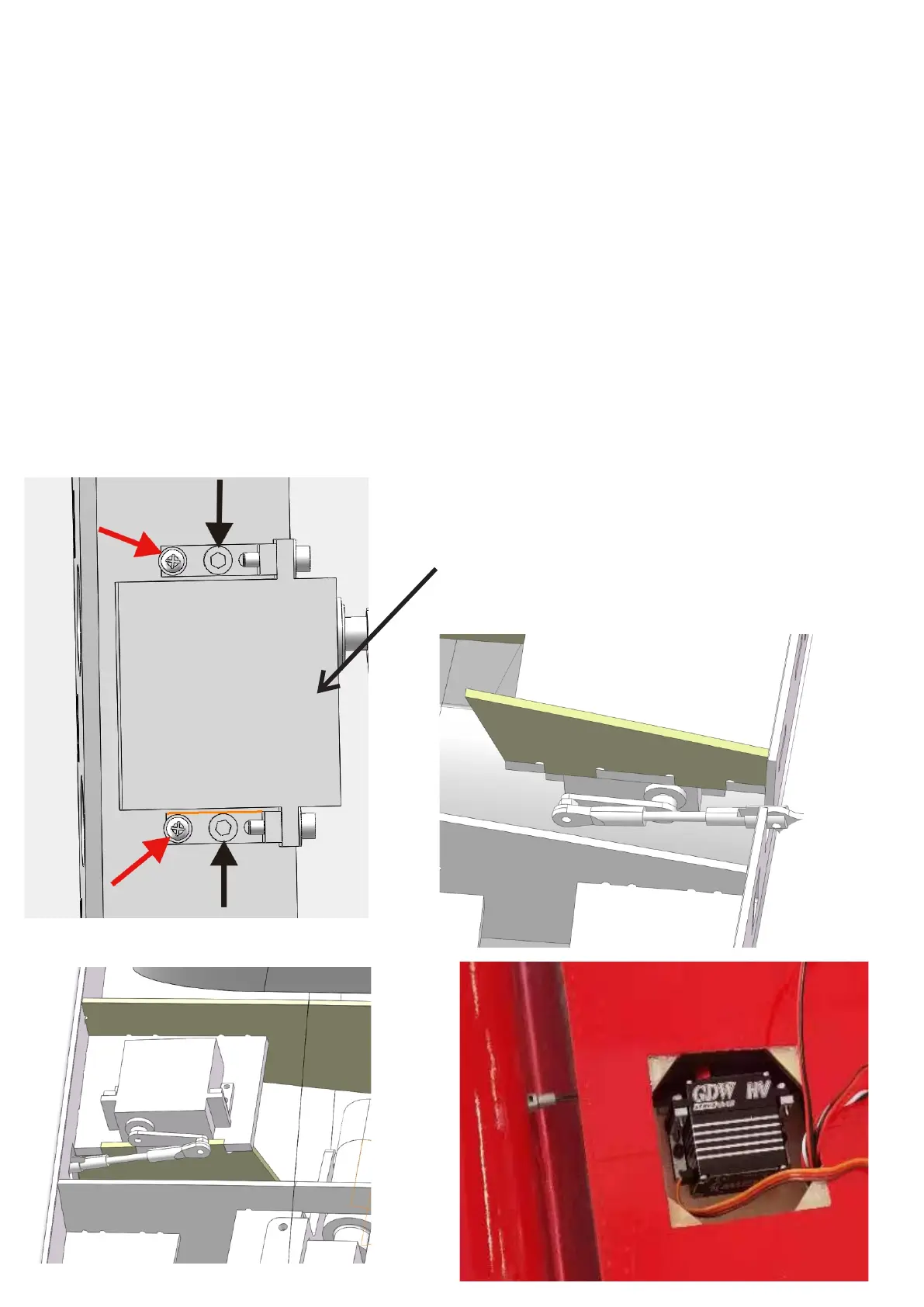

如图1黑色箭头指的螺丝规格：M3x10内六角自攻螺丝红色
箭头指的螺丝规格：M2x10十字自攻螺丝
As shown in Figure 1, the black arrow refers to the screw specification:
M3x10 hexagon socket self-tapping screw The red arrow refers to the
screw specification: M2x10 Phillips self-tapping screw
标准舵机
Standard Servo
1
5
襟翼舵机安装
Flap servo installation
注：调试襟翼收紧后，舵机的行程量再适当的退一些，让襟翼适当的松一点，
以免憋舵，损坏舵机。
Note: After the adjustment flaps are tightened, the stroke of the steering gear
should be properly retracted, and the flaps should be loosened appropriately
to avoid jamming the steering gear and damaging the steering gear.
