4
5
6

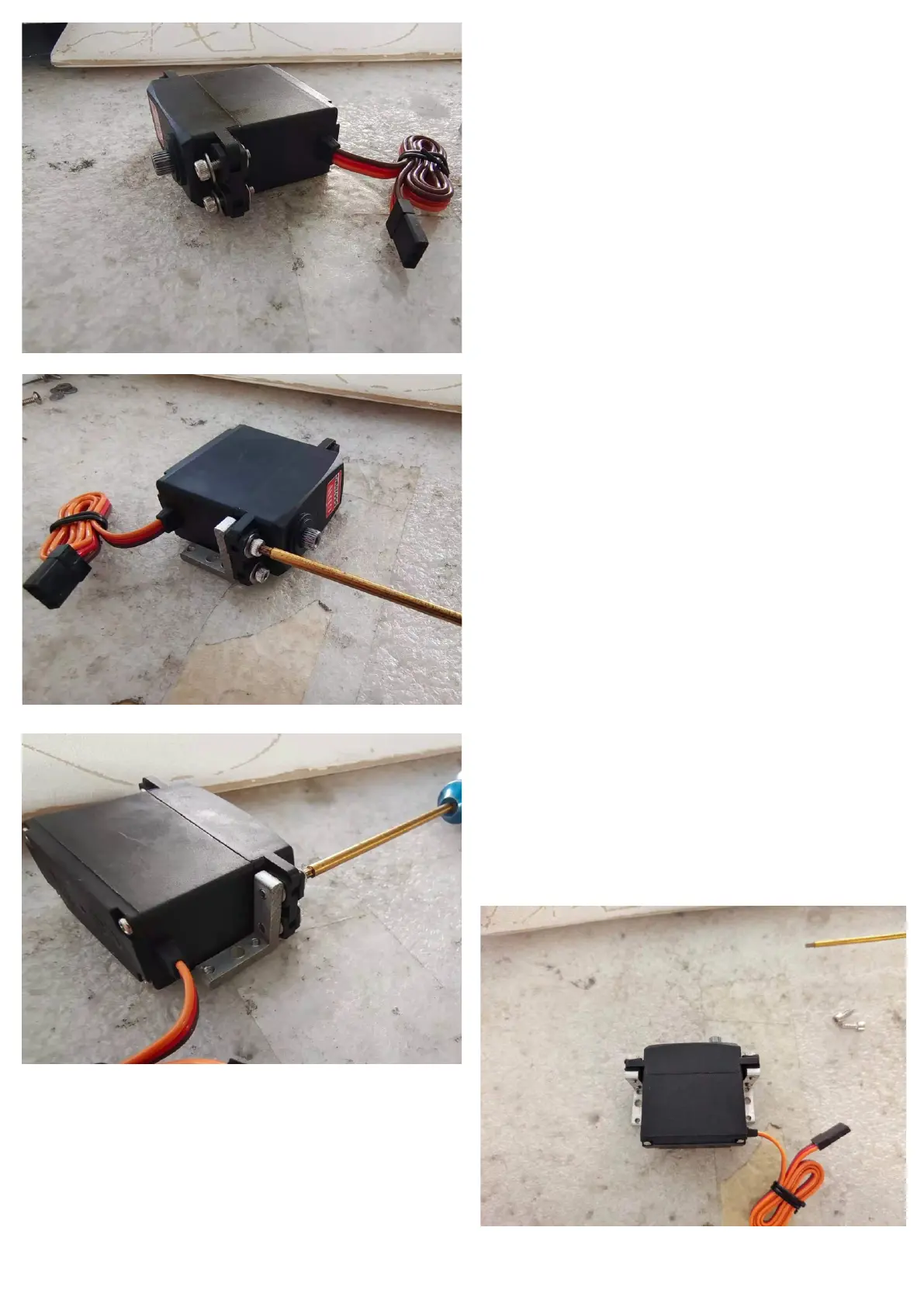

4 如图
螺丝规格：M2.5x10内六角
垫圈规格：φ2.6x7x0.5
4 As shown
Screw specification: M2.5x10
inner hexagon
Washer specifications: φ2.6x7x0.5
5.6 如图
先确认舵机输出轴的安装
位置，再确定安装支架的
方向。
注：要在螺纹上涂抹适量
的中等强度螺丝锁固剂
5.6 As shown
output shaftPosition, and then
determineFirst confirm the
installation of the servo motor
the mounting bracketDirection.
Note:Apply a moderate amount
of medium-strength thread locking
agent on the threads
2
