副翼舵机安装

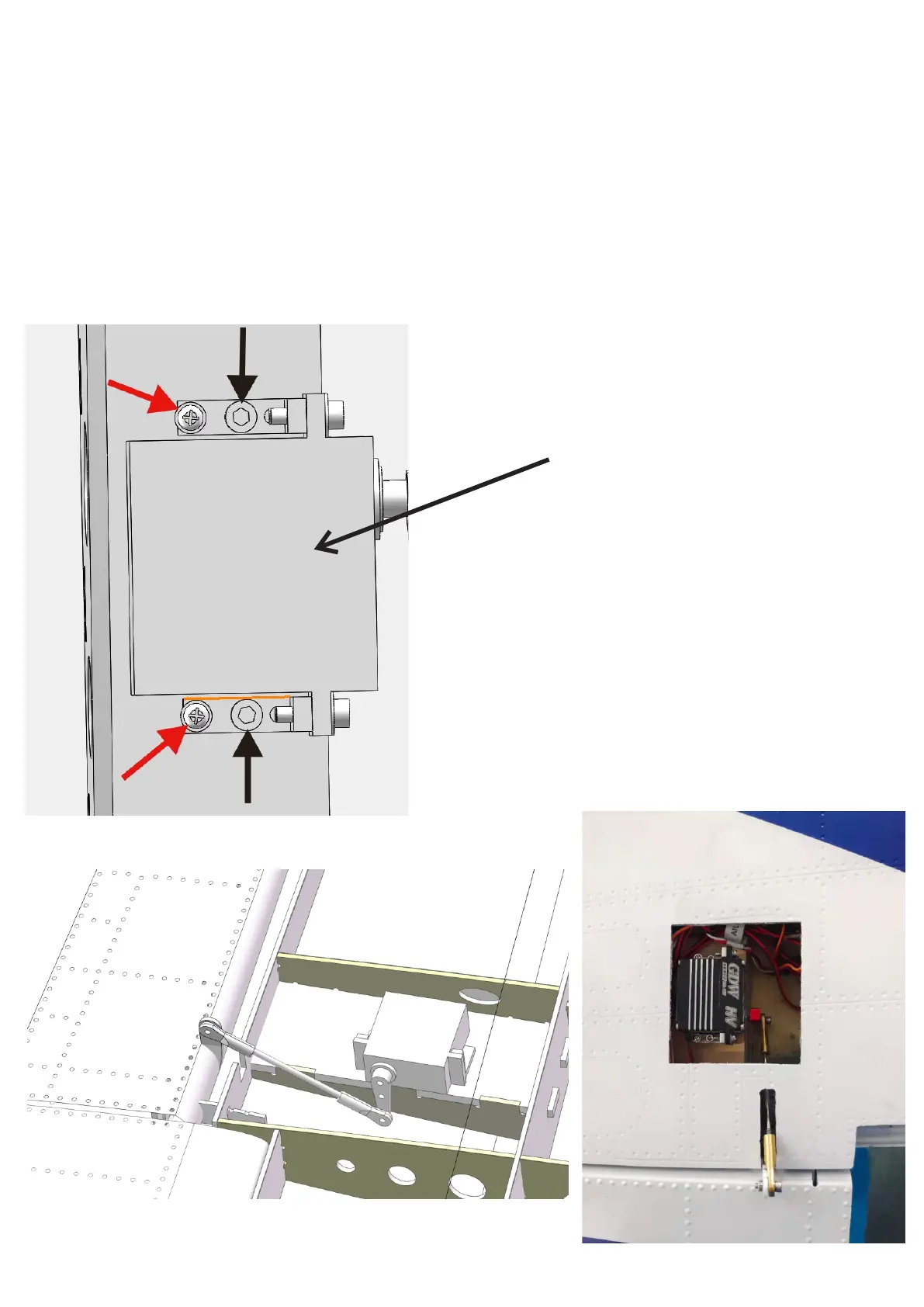

如图1黑色箭头指的螺丝规格：M3x10内六角自攻螺丝红色
箭头指的螺丝规格：M2x10十字自攻螺丝
As shown in Figure 1, the black arrow refers to the screw specification:
M3x10 hexagon socket self-tapping screw The red arrow refers to the
screw specification: M2x10 Phillips self-tapping screw
4
标准舵机
Standard Servo
1
2
3
Aileron servo installation
