JNGE Power JW2450 User Manual

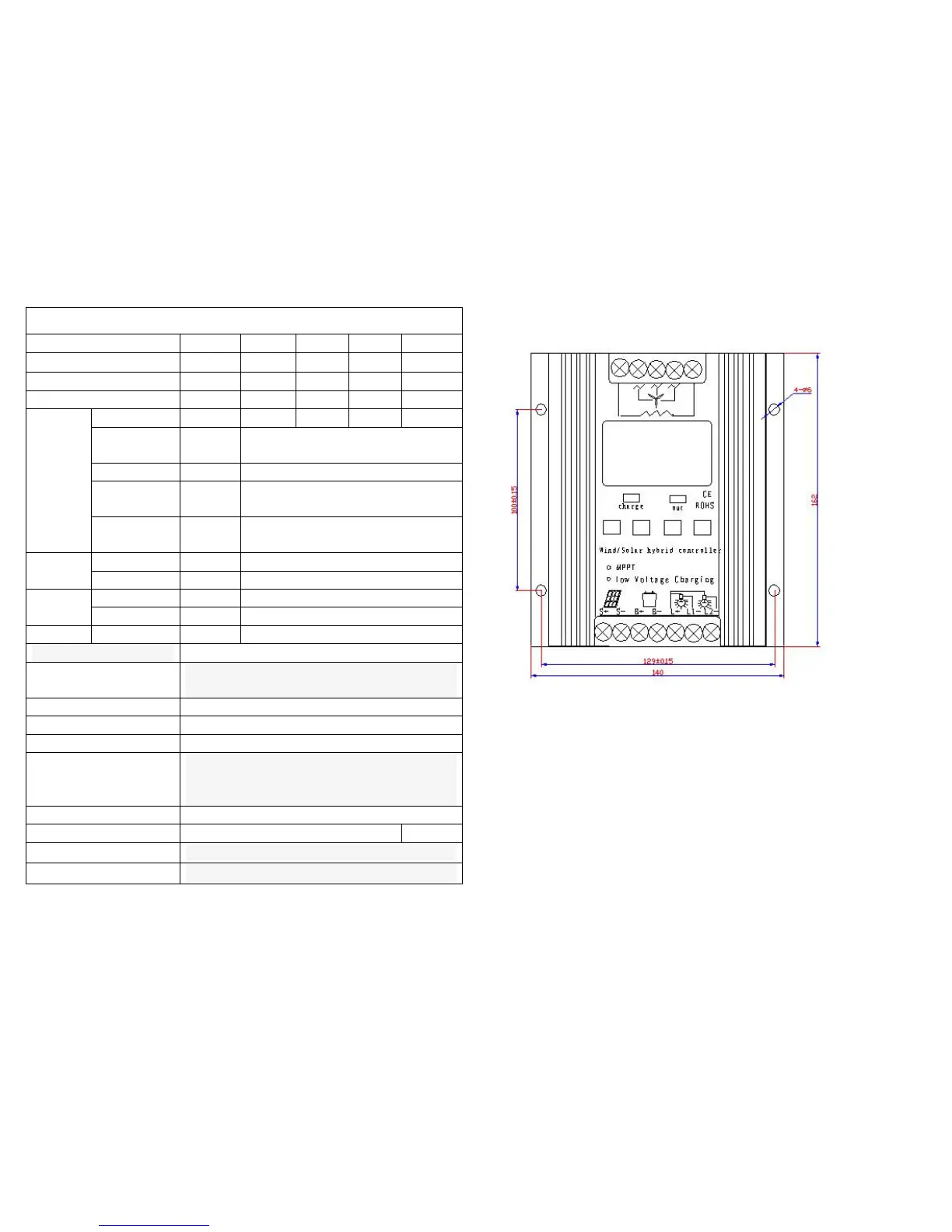

Ⅶ. Dimension
14
15
Ⅸ.Technical Parameters
Model
JW1230
JW2430
JW2450
JW2460
JW2480
Rated voltage
12v/24v
24V
24V
24V
24V
Component power
100W
200W
300W
400W
400W
Power of fan
300W
300W
500W
600W
800W
Charging
Charging current
33.33A
21A
33.33A
42A
50A
Equalization
charge
14.4V±1%
28.8V±1%
Floating Charge
13.8V±1%
27.6V±1%
Equalization
charge recovery
13.2V±1%
26.4V±1%
Temperature
Compensation
-24mV/℃
-48mV/℃
Over
Discharge
Disconnect (DC)
10.8V±1%
21.8V±1%
Recovery (DC)
12.3V±1%
24.6V±1%
Over
Voltage
Shut off (DC)
16V±1%
32V±1%
Recovery (DC)
15V±1%
30V±1%
No-load
≤0.1A
≤0.1A
Voltage drop (DC)
≤0.5V
Control mode
Wind generator MPPT charge function, PWM uninstall
function, PWM over-current limiting
Boost charge
Flexible independent step-up circuit (optional)
Display
LCD
Show parameters
Voltage、charge current，battery voltage
Protected type
Lightning protection, solar cell anti-reverse protection, open
battery protection, reverse battery protection, over-wind
speed and over-voltage soft automatic braking protection
Heat emanation way
Radiator
Working Temperature
-25℃~+55℃
Height
≤5500m(2000m above the need to reduce power use)
Environment humidity
0~90%
，
No condensation

JNGE Power JW2450 Specifications

General

Brand	JNGE Power
Model	JW2450
Category	Controller
Language	English
