G. Power supply and lateral
sensing
Fig. 28

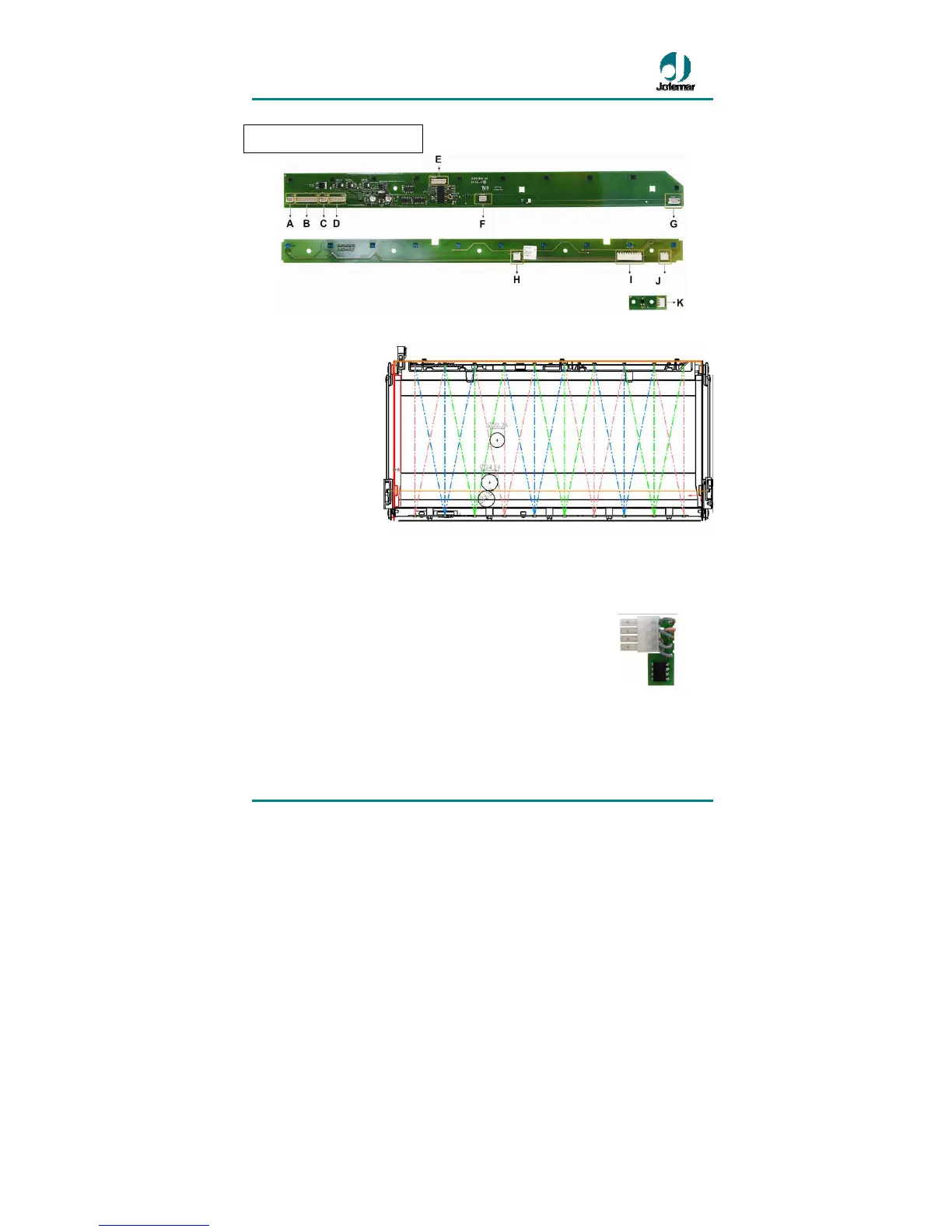

The following graph
(fig. 29) shows
communication and
distance between the
photodiodes,
phototransistors and
the side photodiode of
the product delivery
bin (top view).
Fig. 29
4.7. Electronic thermometer card
The temperature of the product hold is measured with an
electronic thermometer which can be placed in different
locations of the product hold. Normally, it is located half way up
the hold.
Fig. 30
