Installation Instructions
i. Installation requirements
Space requirements

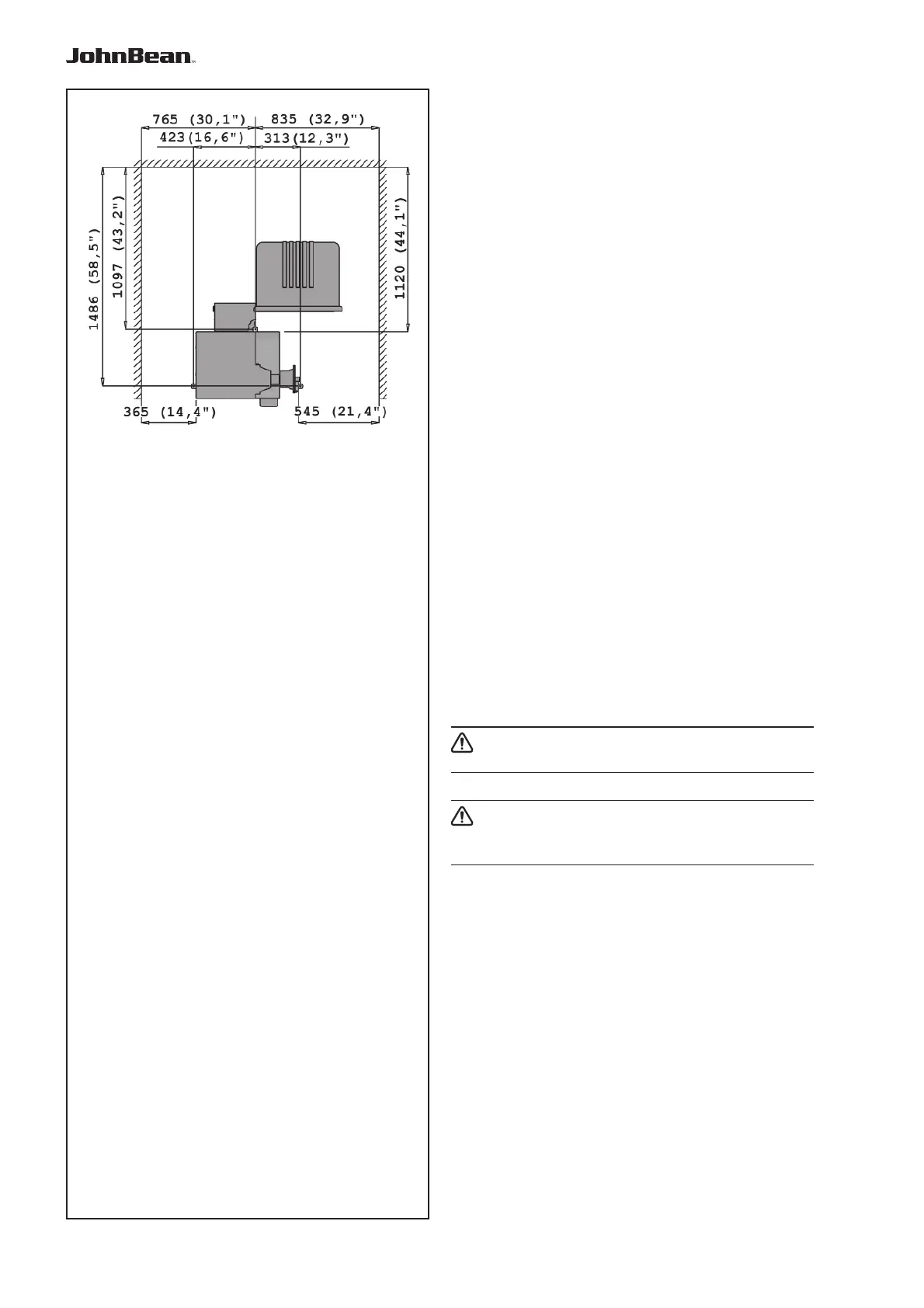

The drawing show the minimum safety requirements:
i.1
The drawing has two sets of dimensions:
1 from the wall to the center of the holes: on
the left and top of the drawing
2 from the wall to the outline of the cabinet: on
the right and bottom of the drawing
Floor requirements
The ! oor should be:
- horizontal;
+/- 1° tolerance
- even; within 2 mm
- able to bear the weight of the balancer as stated in
Chapter 2 of the Operator’s Manual.
The ! oor on which the balancer will be installed
should not relay vibrations from other devices or
from outside the building. External vibrations may
affect the accuracy of the unit.
Note: The balancer must be positioned directly
on the ! oor. Do not use spacers to " ll
gaps.
If the above conditions are satis" ed, the balancer
does not need " xing to the ! oor.
Power supply requirements
Refer to Chapter 2 of the Operator’s Manual for mains
power requirements.
ENSURE THAT AN APPROVED WALL MAINS
OUTLET IS AVAILABLE.
NEVER GUIDE POWER SUPPLY CABLES
OVER THE FLOOR, UNLESS PROTECTED
BY AN APPROVED COVER
.
.
