4.1 STEERING WHEEL
Turns the front wheels.
4.2 THROTTLE
This regulates the engine's r.p.m. The positions are indicated on a plate showing the
following symbols:
«CHOKE» cold starting
«SLOW» for minimum engine speed
«FAST» for maximum engine speed
– The «CHOKE» position enriches the mixture so must only be used for the time nec-
essary when starting from cold.
– When moving from one area to another, put the lever in a position between «SLOW»
and «FAST».
– When cutting, shift into «FAST».
4.3 4.3 KEY IGNITION SWITCH
This key operated control has three positions:
«OFF» everything is switched off;

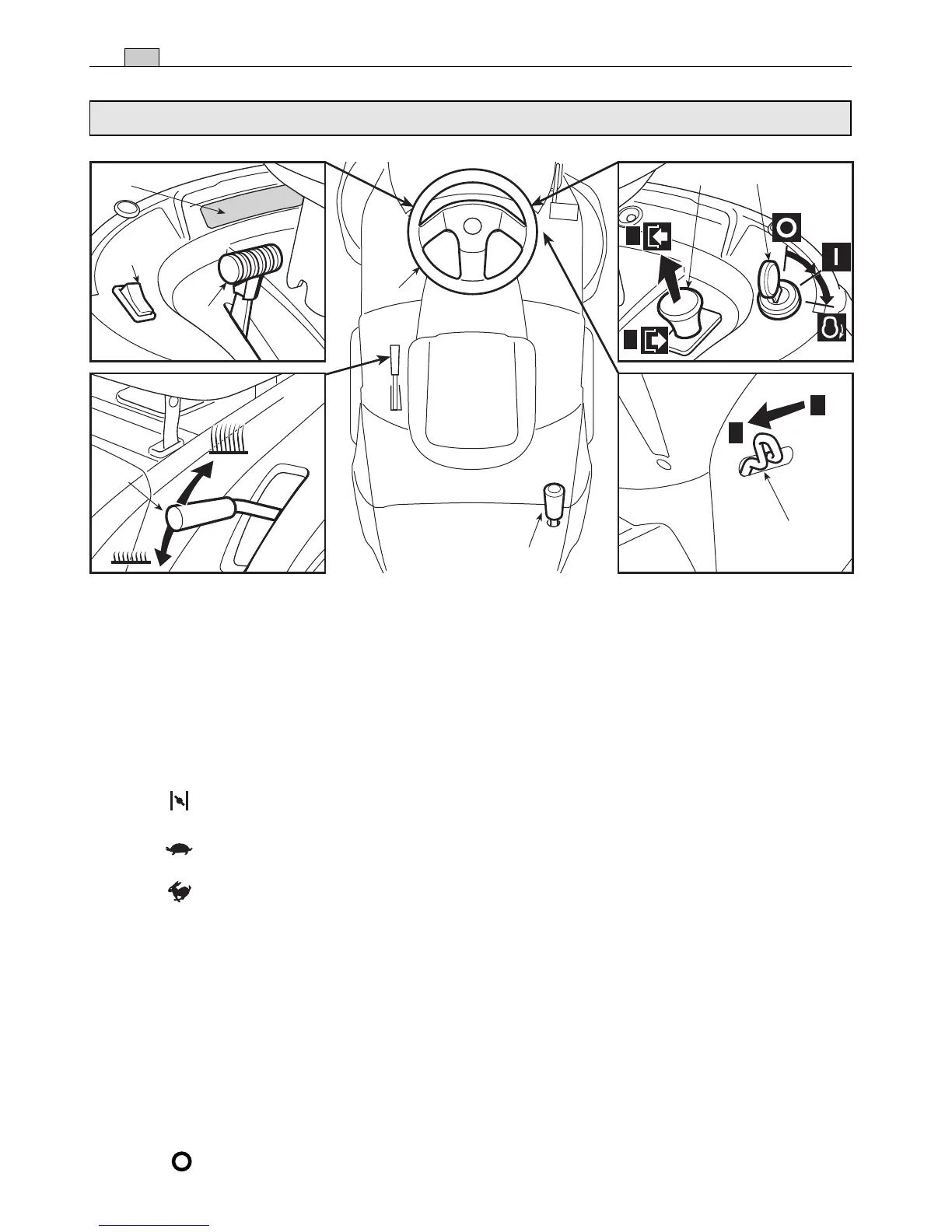

CONTROLS AND INSTRUMENTS
4. CONTROLS AND INSTRUMENTS
4.2
4.8
4.3
4.5
B
A
4.4
4.9
4.1
4.7
A
B
4.6
