User guide

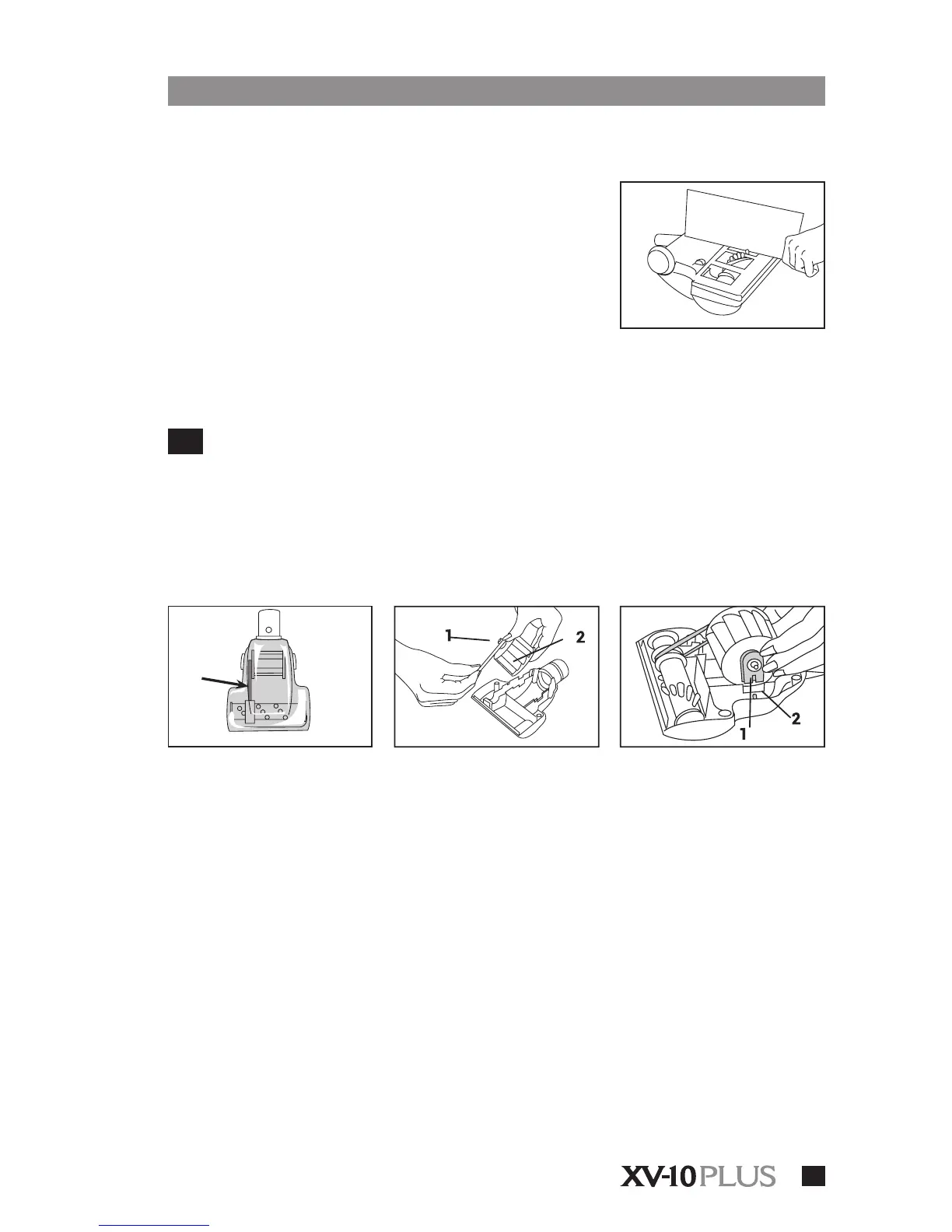

Brushroll replacement
When to replace
• When the agitator brushroll brush-
es are worn, the brushroll should be
replaced.
• To check condition of brushes,
move edge of a card across bot-
tom plate while turning brushroll.
To maintain cleaning effectiveness,
replace brushroll if brushes do not
touch card.
• The mini air nozzle belt is designed
to last a long time and is not normal-
ly replaced. However, if the belt is
cracked, gouged or broken, it should
be replaced.
Inspecting the belt
• The belt can be seen through the
top of the nozzle or by removing the
bottom plate and belt guard.
Replacing the belt
1. Remove bottom plate, belt guard
and brushroll.
2. Grasp turbine ( 1 ) and pull rmly
to remove.
3. Remove belt from turbine pulley
( 2 ). Replace with new belt.
4. With flat sides of turbine retainers
( 1 ) pointing down. slide retainers
into grooves ( 2 ) on both sides of
tool housing and snap into place.
5. Replace brushroll, belt guard, and
bottom plate.
6- MAINTENANCE ( suite )
How to replace
Disconnect cleaner from electri-
cal outlet.
1. Remove hood, duct cover, belt and
brushroll as shown in Figs. A to F.
2. Discard old brushroll.
3. Replace new brushroll and belt as
shown in Figs. G to I.
Mini air nozzle ( optional )
6.4
