SECTION XXI: INSTALLATION AND
MAINTENANCE OF HEALTHY FILTER
(ACCESSORY)
INSTALLATION OF HEALTHY FILTER (ACCESSORY)
1. Lift up the front panel from its two ends and remove the factory sup-
plied air filter as shown in Fig. A.
2. Attach the healthy filter to the air filter as shown below in Fig. B.
3. Install the air filter properly as shown below in Fig. C and then close
the panel.
CLEANING AND MAINTENANCE
1. Remove the healthy filter and clean thoroughly. Make sure you
don't use a brush or any hard objects to clean the filter.
2. Make sure you dry the air filter before reinstalling it.
SECTION XXII: TYPICAL UNIT WIRING
DIAGRAM
The indoor unit wiring diagram is located on the inside of the cabinet by
the terminal block. It is necessary to remove the front panel from the
unit to see the diagram. The outdoor unit wiring diagram is located on
the underside of the outdoor unit control access cover.

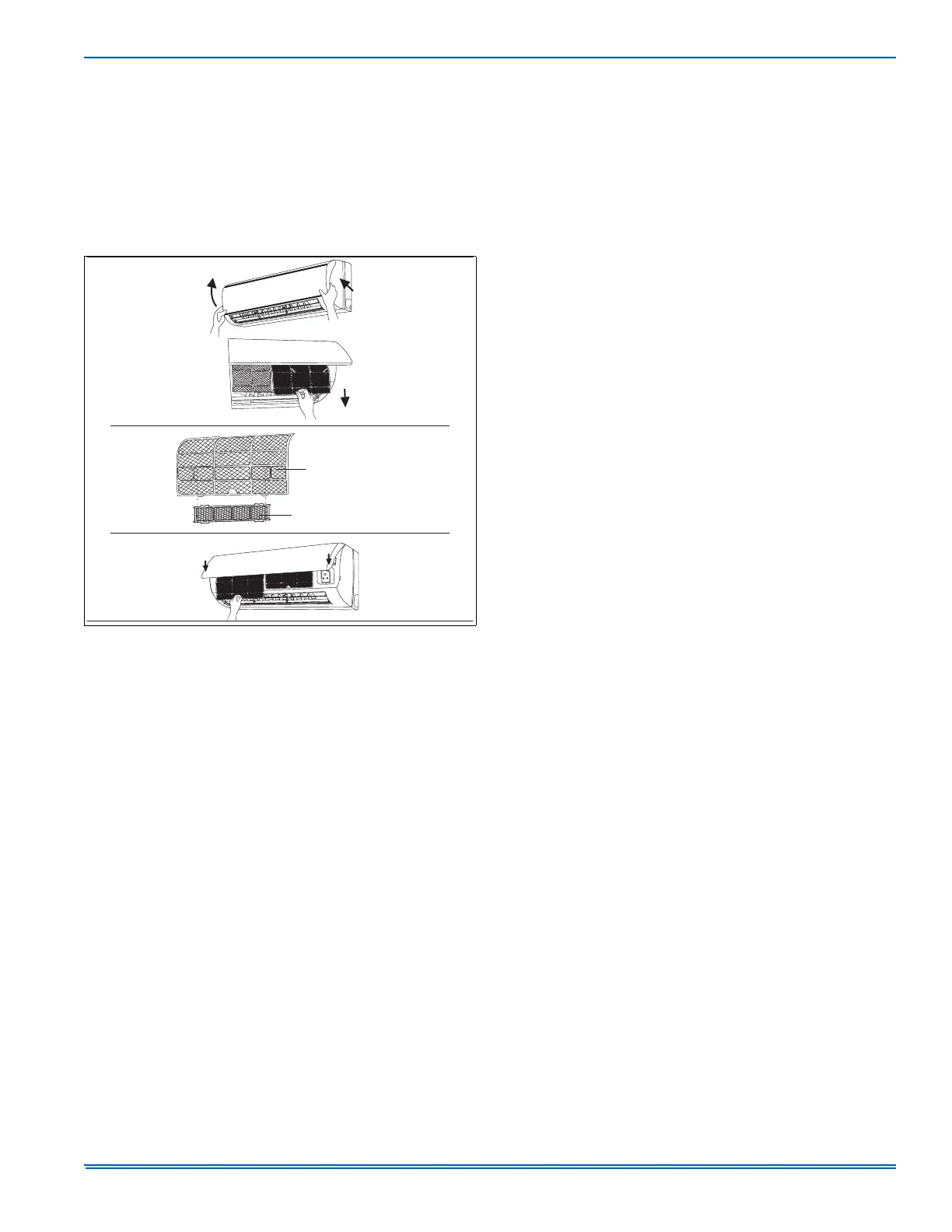

FIGURE 45: Filter Replacement
AIR FILTER
HEALTHY FILTER
Fig. A
Fig. B
Fig. C
