VYPER

™

VARIABLE SPEED DRIVE

INSTALLATION

S100-200 IOM (MAY 08)

Page 11

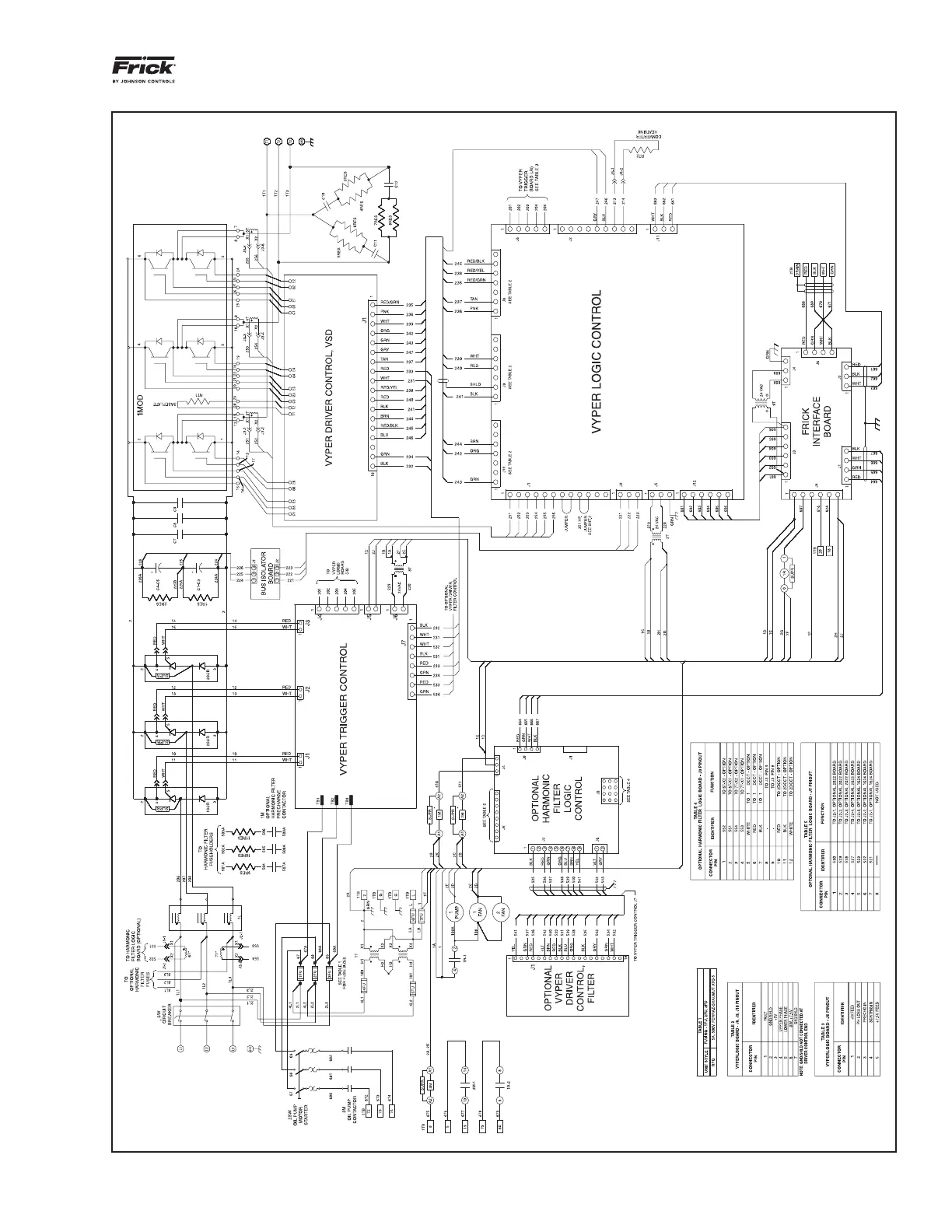

Figure 6 - Vyper

™

Elementary Wiring Diagram

NOTE: Drawings for speciﬁ c units can be

found in the door of the Vyper drive or

check with Frick Engineering department.
