VYPER
™
VARIABLE SPEED DRIVE
OPERATION
S100-200 IOM (MAY 08)
Page 41
Compressor Safeties Screen
To prevent the Slide Valve from unloading beyond a high
setpoint level (97%) and permit rapid compressor response
under load, make the following setting adjustments on the
Compressor Safeties Screen:
Step 1: Press the [MENU] key and then selecting “Setpoints”
and “Compressor”. Press the [ENTER] key to advance to the
Compressor Safeties Screen.
Step 2: (Refer to Figure 47) Use the cursor arrow and
[Tab] keys to navigate to the “Highest Capacity To Permit
Starting” (Callout 1) and “Compressor Automatic Mode
Minimum Capacity” (Callout 2). Use the keypad to program
the setpoints to “97%”. Press the [Enter] key to accept the
value for each fi eld.
Step 3: Press the [Submit] key to accept the changes and
return to the operating status screen.

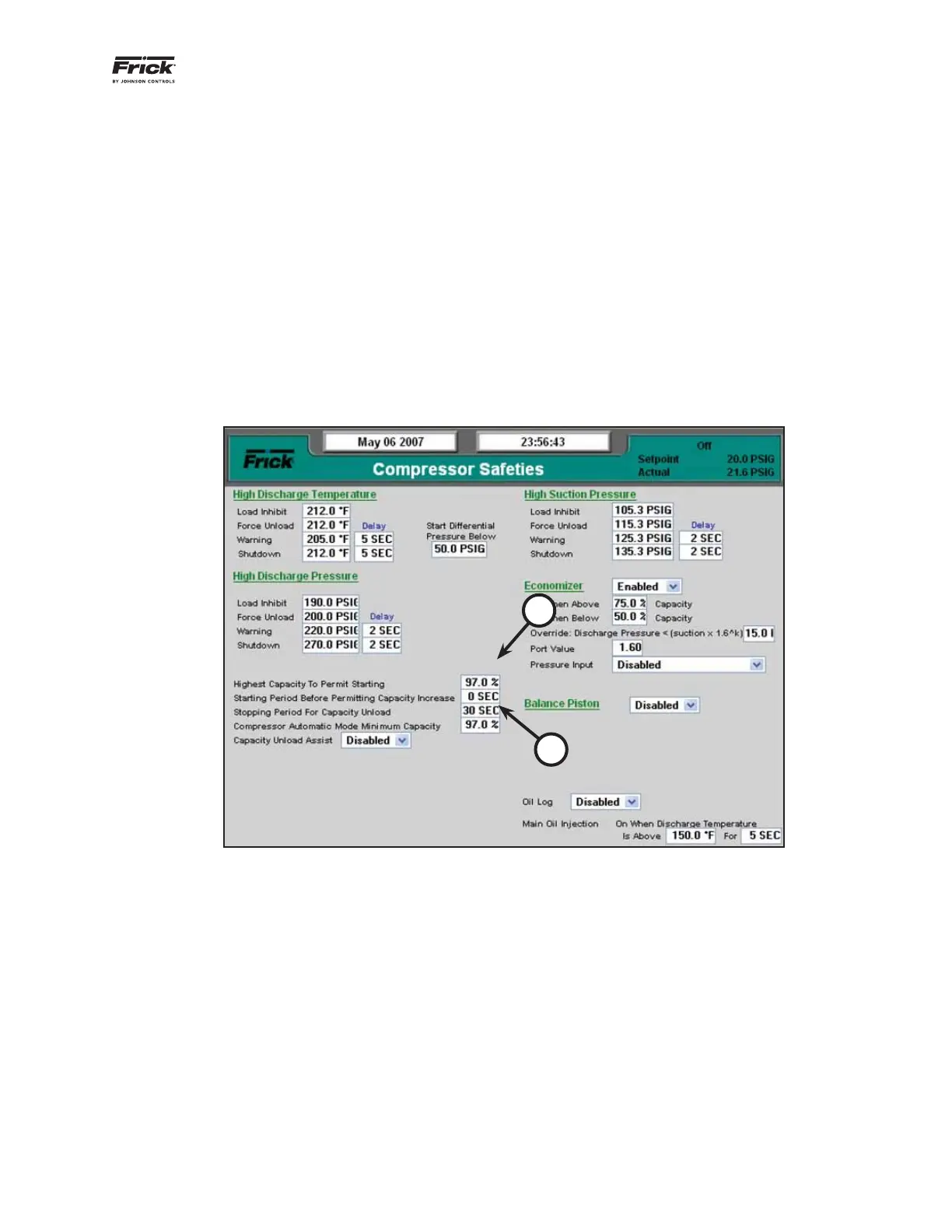

Figure 47 - Compressor Safeties Screen
1
2
