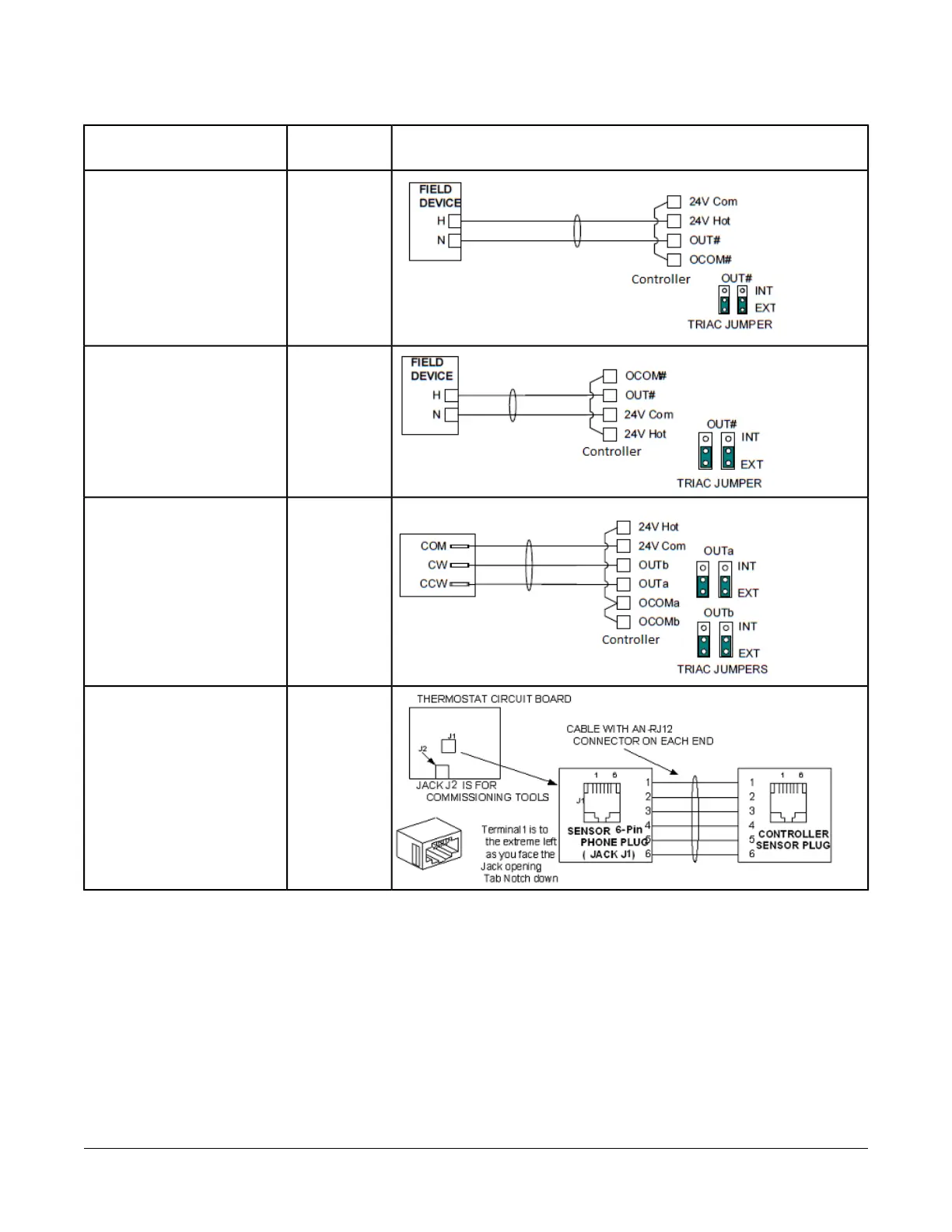

Table 2: Termination Details

Termination DiagramsType of

Input/Output

Type of Field Device

BO24 VAC Binary Output (Switch

Low, Externally Sourced)

BO24 VAC Binary Output (Switch

High, Externally Sourced)

SA BusNetwork Stat with Phone Jack

(Fixed Address = 199)

10FX-PCX47 Expansion Input/Output Module Installation Instructions
