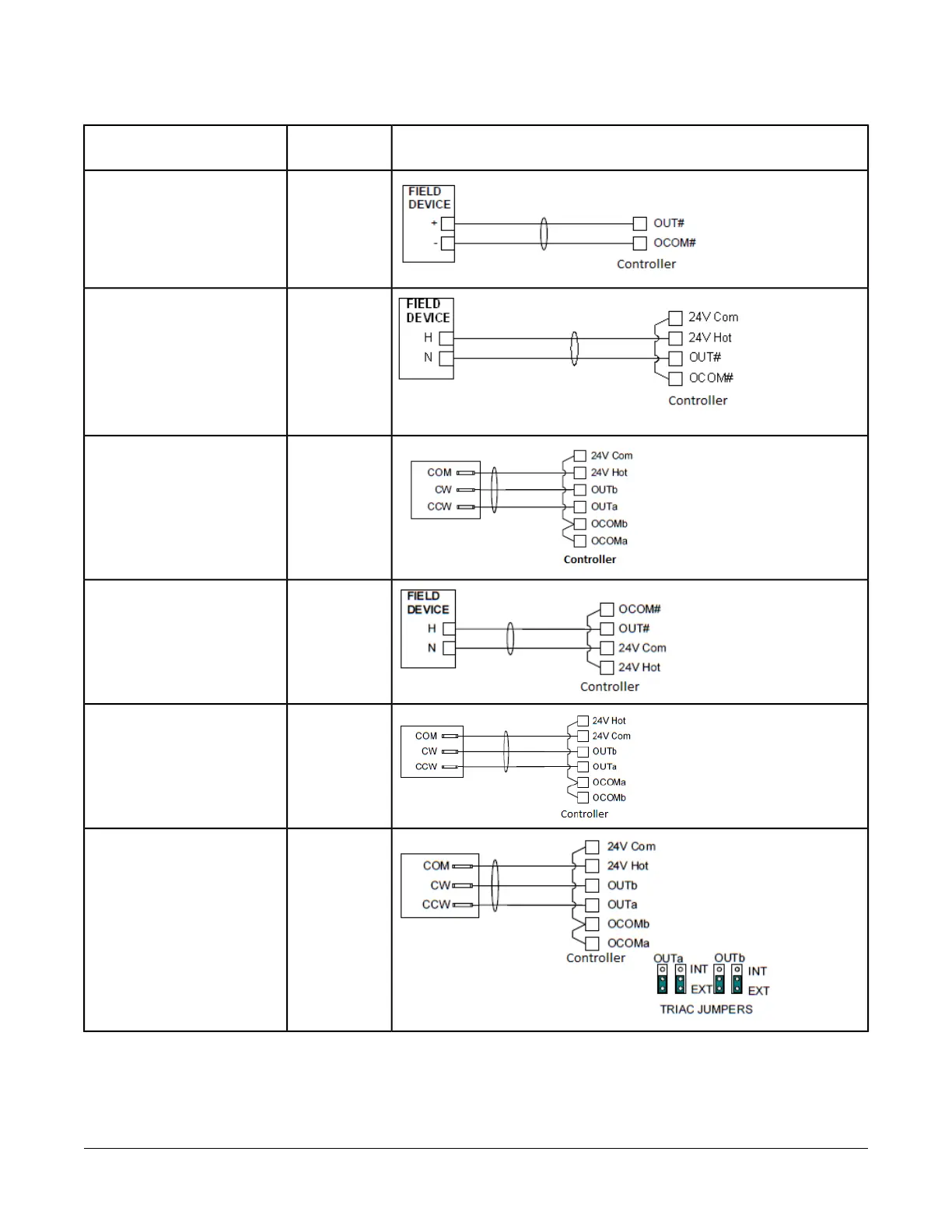

Table 2: Termination Details
Termination DiagramsType of
Input/Output
Type of Field Device
AOAnalog Output (Current)
CO24 VAC Triac Output (Switch
Low, External Source)
CO
CO
CO
BOIncremental Control to
Actuator (Switch Low,
Externally Sourced)
9FX-PCX47 Expansion Input/Output Module Installation Instructions
