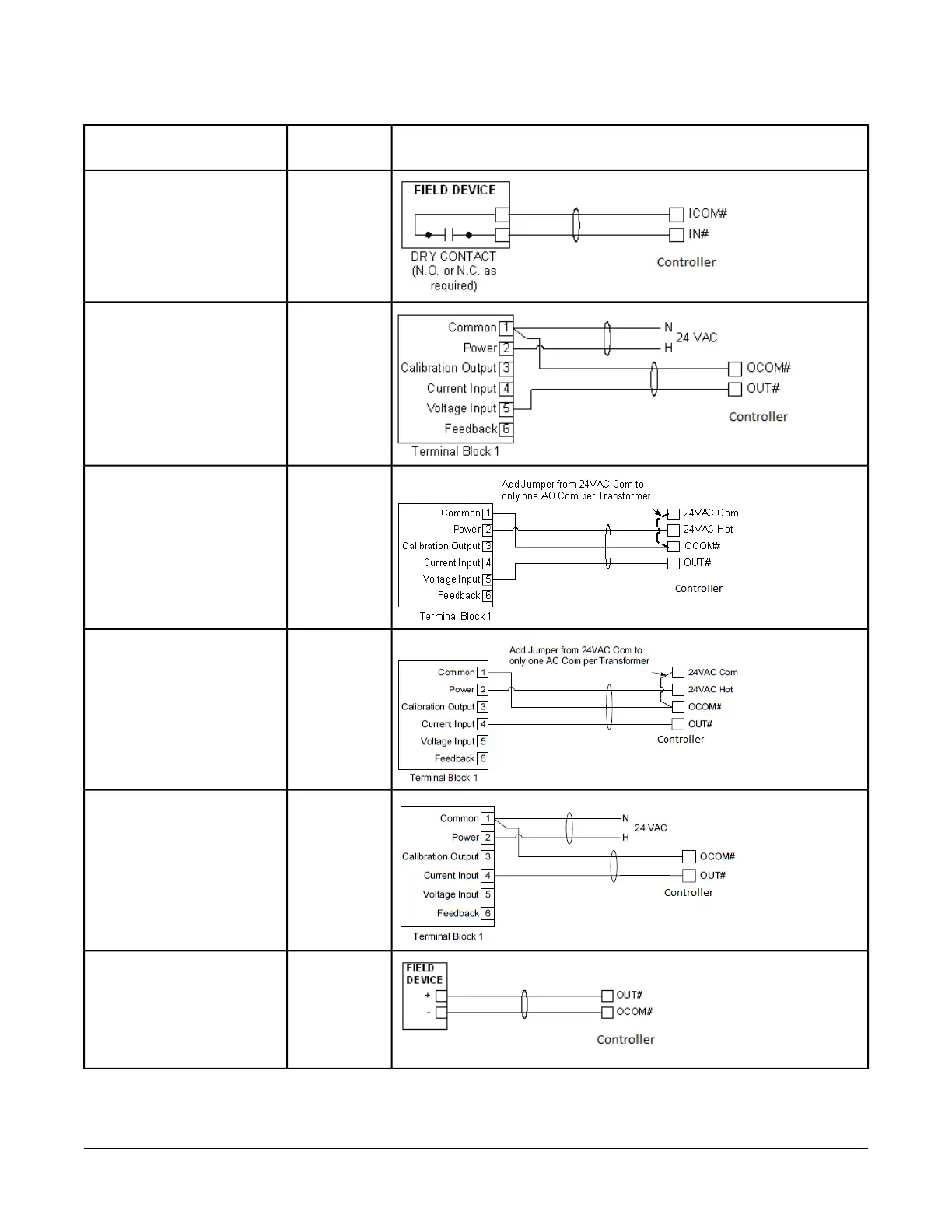

Table 2: Termination Details

Termination DiagramsType of

Input/Output

Type of Field Device

UI or BIDry Contact (Binary Input)

CO or AO0–20 VDC Output to Actuator

(External Source)

CO or AO0–10 VDC Output to Actuator

(Internal Source)

CO or AO0-20 mA Output to Actuator

AOVoltage (Analog Output)

8FX-PCX47 Expansion Input/Output Module Installation Instructions
