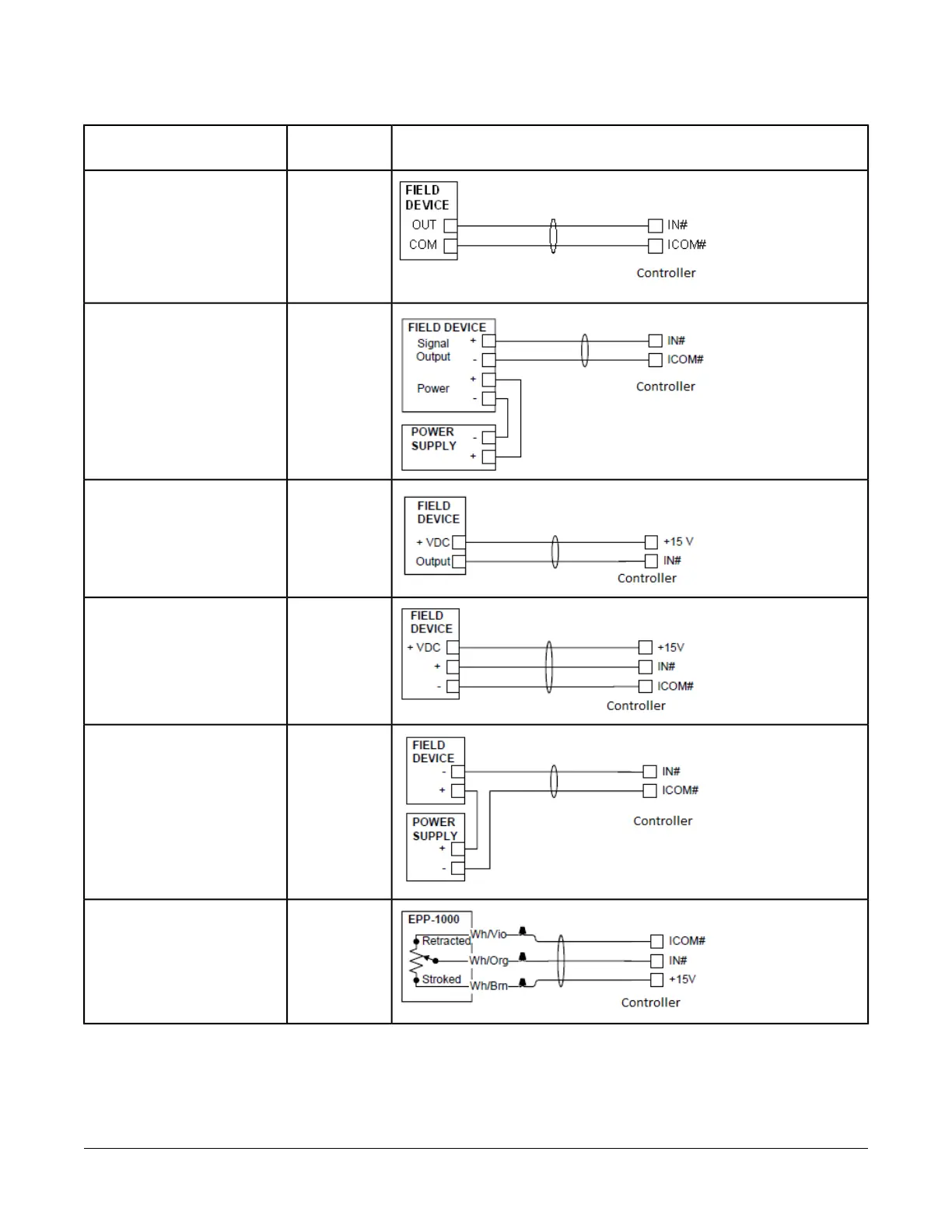

Table 2: Termination Details

Termination DiagramsType of

Input/Output

Type of Field Device

UIVoltage Input (Self-Powered)

UICurrent Input - External

Source (Isolated)

UICurrent Input - Internal Source

(2 wire)

UICurrent Input - Internal Source

(3 wire)

UICurrent Input - External

Source (in Loop)

UIFeedback from EPP-1000

7FX-PCX47 Expansion Input/Output Module Installation Instructions
