Johnson Controls IFC-320 - C.2 M300 CJ and M302 MJ

64 Johnson Controls, Inc. SLC Wiring Manual — P/N 51870:G 04/23/2009

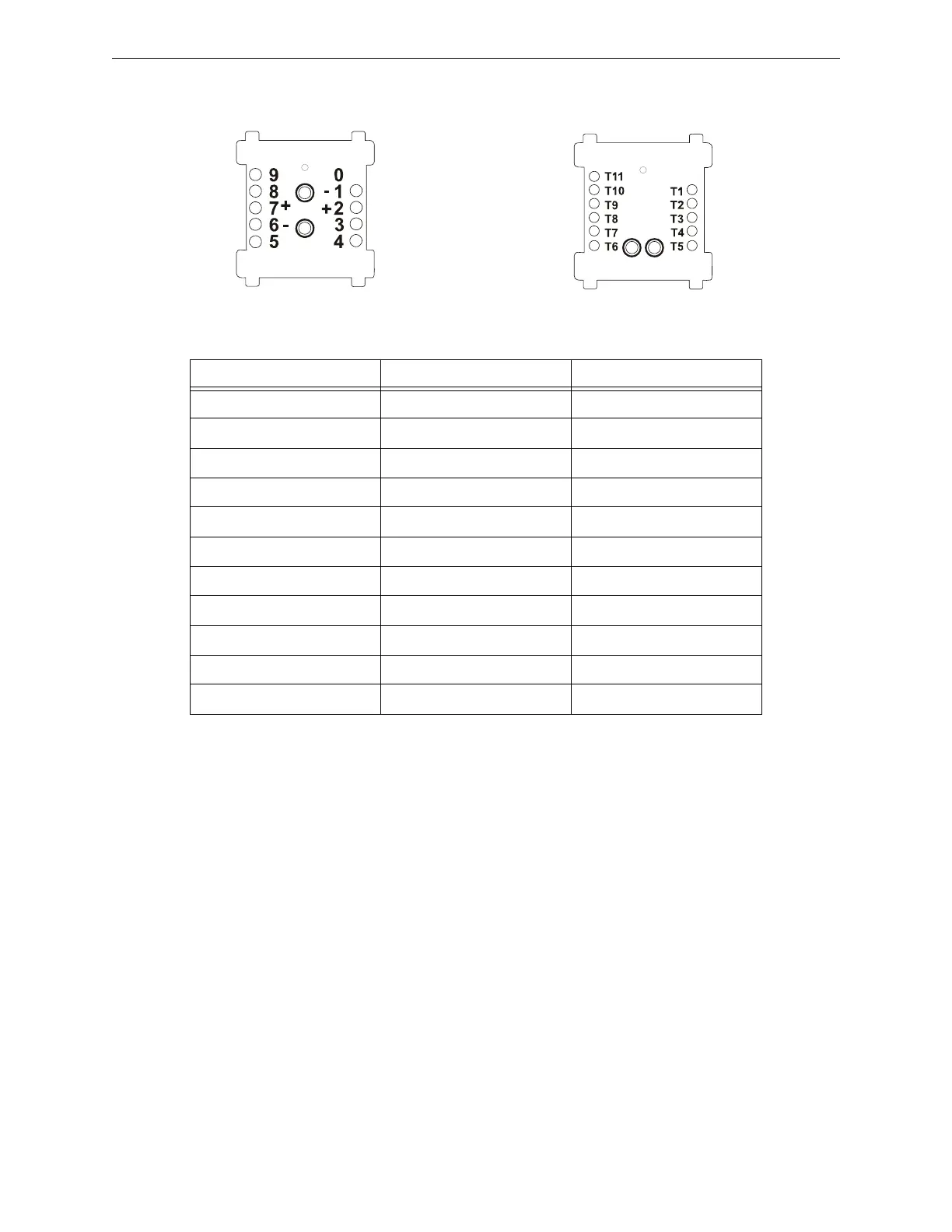

Terminal Conversion Charts for V-type and H-type Devices M300CJ and M302MJ
C.2 M300CJ and M302MJ
Table C.2 M300CJ and M302MJ Terminal Conversions
V-type Terminal Number Terminal Function H-type Terminal Number
1SLC -1
2SLC +2
3 VDC - 11
4 VDC + 10
5Unused5
6 Solenoid B/A - 6
7 Solenoid B/A + 7
8 Solenoid A + 8
9 Solenoid A - 9
N/A Unused 3
N/A Unused 4
VDC -
VDC +
SLC -
SLC +
SLC -
SLC +
VDC -
VDC +
Solenoid A-
Solenoid A+
Solenoid B/A +
Solenoid B/A -
Solenoid A-
Solenoid A+
Solenoid B/A +
Solenoid B/A -
Type V
Type H
