Johnson Controls IFC-320 - C.3 M300 MJ

Johnson Controls, Inc. SLC Wiring Manual — P/N 51870:G 04/23/2009 65

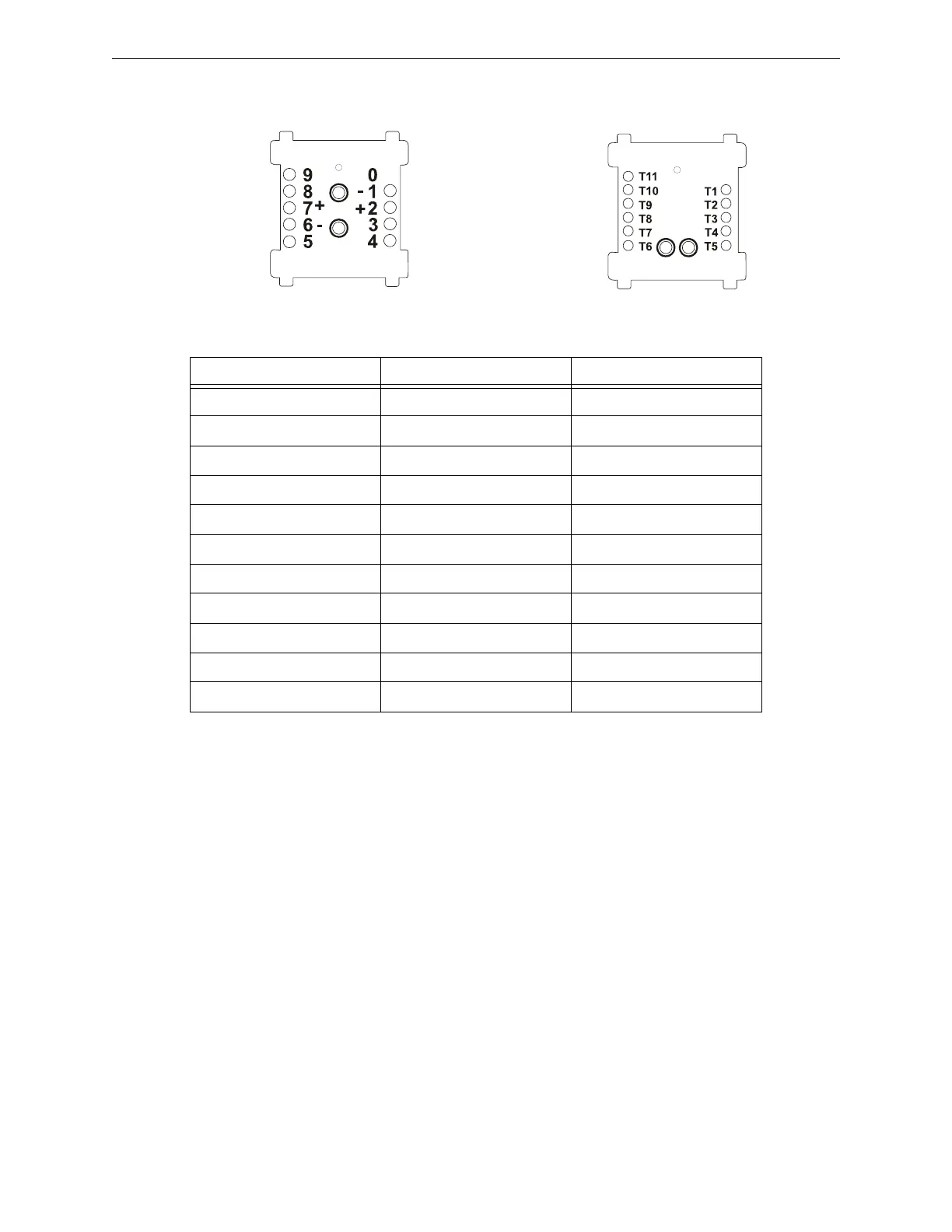

M300MJ Terminal Conversion Charts for V-type and H-type Devices
C.3 M300MJ
Table C.3 M300MJ Terminal Conversions
V-type Terminal Number Terminal Function H-type Terminal Number
1SLC -1
2SLC +2
3Unused3
4Unused4
5Unused5
6 Class A/B Supervision - 6
7 Class A/B Supervision + 7
8 Class A Supervision + 8
9 Class A Supervision - 9
N/A Unused 10
N/A Unused 11
SLC -
SLC +
Class A Supervision -
Class A Supervision+
Class A/B Supervision +
Class A/B Supervision -
Class A Supervision -
Class A Supervision+
Class A/B Supervision +
Class A/B Supervision -
SLC -
SLC +
Type V
Type H
