Johnson Controls IFC2-640 - 5: Ifc-300;Ifc-400; 6: IFC-1010;IFC-2020 with JLIB-200 A or JLIB-400

22 Johnson Controls, Inc. SLC Wiring Manual — P/N 51870:G 04/23/2009
Wiring Requirements Control Panel Terminal Blocks
2.4.5 IFC-300/IFC-400
IFC-300 supports one SLC loop; IFC-400 supports two SLC loops. The loops are CLIP mode only.
SLC loops connect to TB6 on IFC-300; SLC loops connect to TB5 and TB6 on IFC-400.

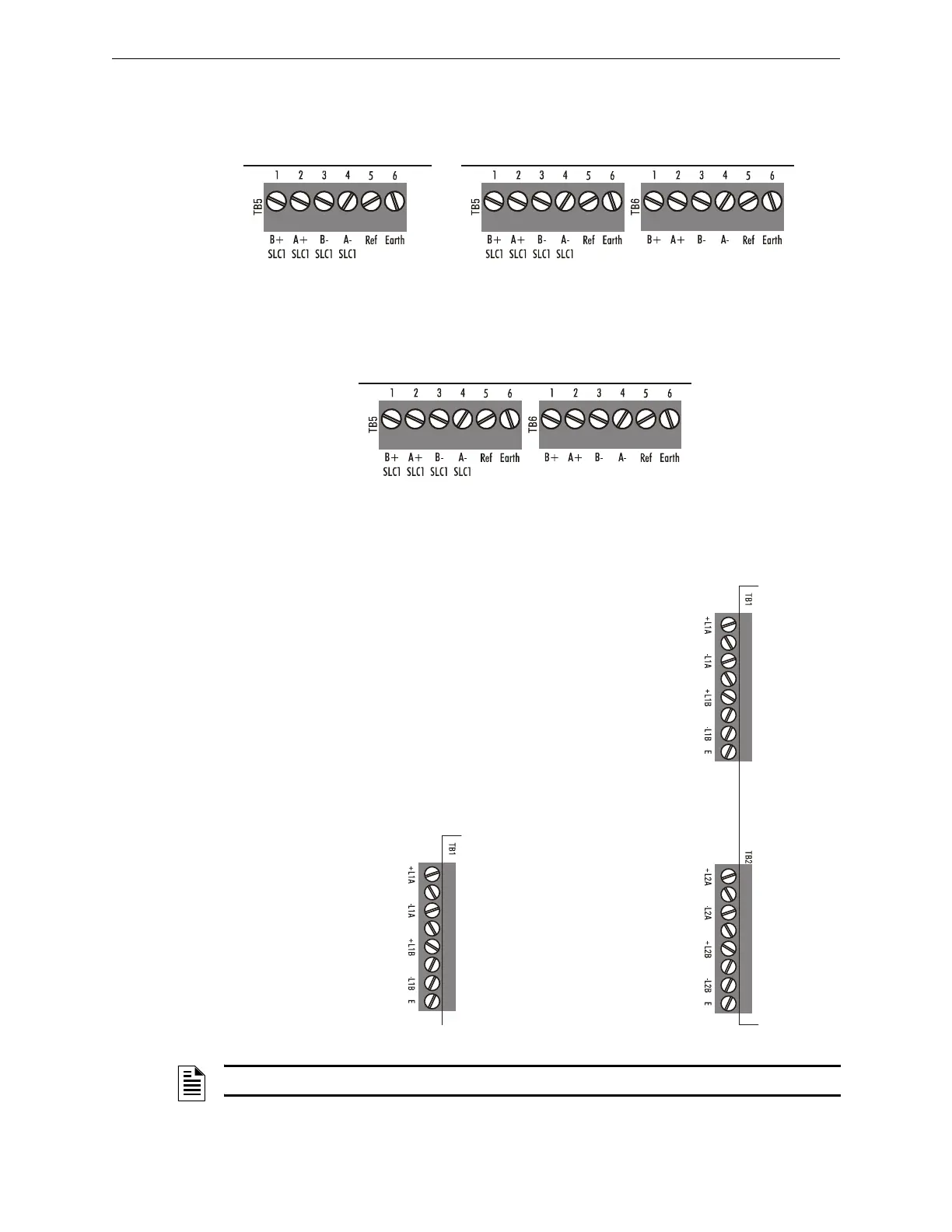

Figure 2.9 IFC-300/IFC-400.
2.4.6 IFC-1010/IFC-2020 with JLIB-200A or JLIB-400
IFC-1010/IFC-2020 supports up to ten SLC loops using JLIB-200A (one SLC loop per board)
and/or JLIB-400 (one or two SLC loops per board). The loops are CLIP mode only. SLC loops
connect to TB1 and TB2 on JLIB-400, and TB1 on JLIB-200A.
Figure 2.10 SLC Connections for JLIB-200A & JLIB-400
SLC Loop #1 Connections
on’s main circuit board
SLC Loop Connections
on’s main circuit board
slc-300.wmf, slc-400.wmf
SLC Loop #1 Connections
on FACP’s main circuit board
slc-400.wmf
slc-lib-200a.wmf,slc-lib-400.wmf
Pin 1 SLC Loop Port A+
Pin 3 SLC Loop Port A-
Pin 5 SLC Loop Port B+
Pin 7 SLC Loop Port B-
Pin 8 Earth Ground
Pin 1 SLC Loop Port A+
Pin 3 SLC Loop Port A-
Pin 5 SLC Loop Port B+
Pin 7 SLC Loop Port B-
Pin 8 Earth Ground
Pin 1 SLC Loop Port A+
Pin 3 SLC Loop Port A-
Pin 5 SLC Loop Port B+
Pin 7 SLC Loop Port B-
Pin 8 Earth Ground
JLIB-200A JLIB-400
NOTE: JLIB-200 has been replaced by JLIB-200A.
