Physical features
The following figure displays the physical features
of the IOM, and the accompanying table provides a
description of the physical features and a reference
to further information where required.

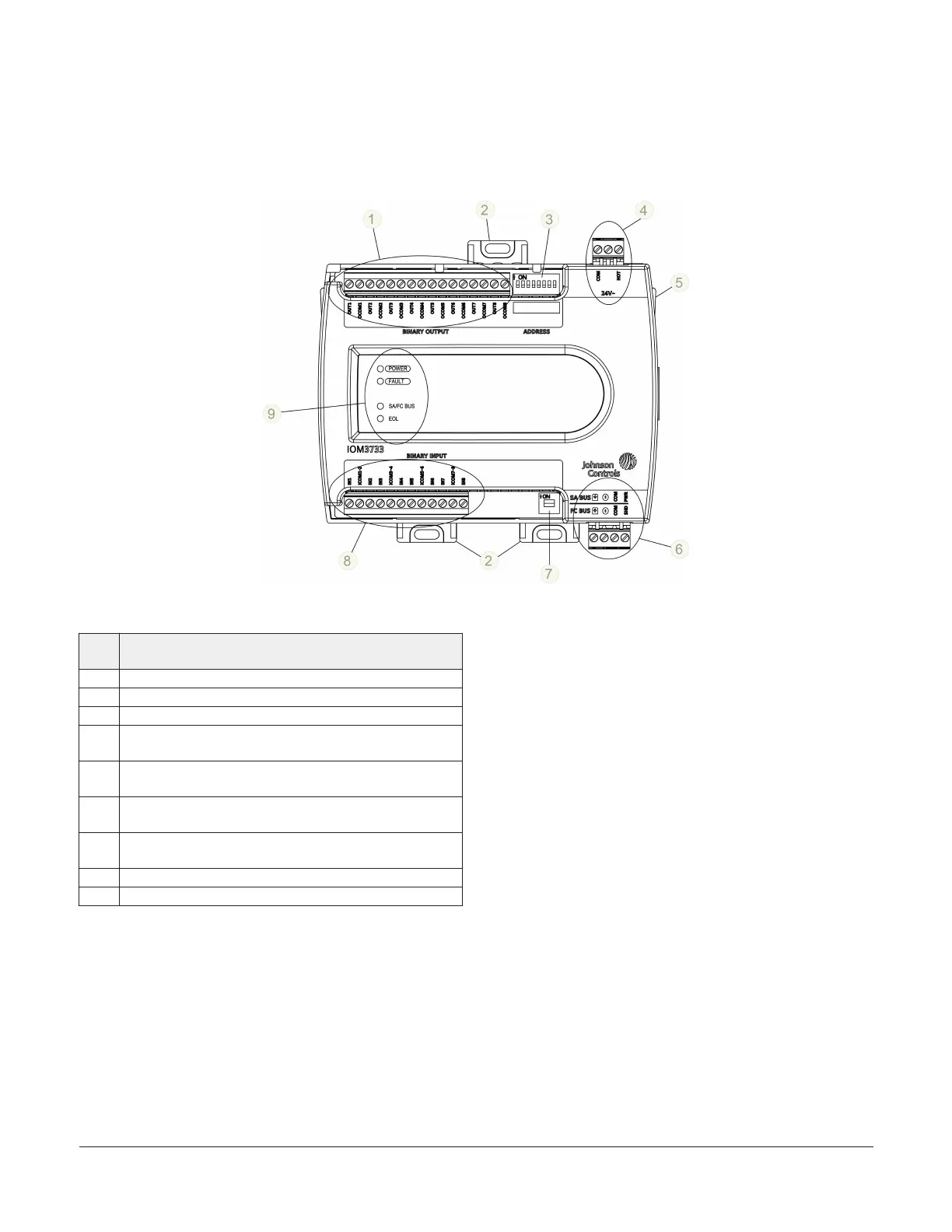

Figure 1: IOM3733 physical features
Table 1: IOM3733 feature callouts and
descriptions
Callo
ut
Physical feature: description and references
1 Binary Output (BO) Terminal Block (see Table 2)
2 Mounting Clip (Three Total) (see Figure 1)
3 Device Address DIP Switch Block (see )
4
24 VAC, Class 2 Supply Power Terminal Block (see Supply
Power Terminal Block)
5
Cover Lift Tab (One of Two) (see Removing the expansion
module cover)
6
Sensor Actuator (SA) Bus / Field Controller (FC) Bus
Terminal Block (see SA/FC bus terminal block)
7
End-of-Line (EOL) Termination Switch (see Setting the
End-of-Line (EOL) switch)
8 Binary Input (BI) Terminal Block (see Table 2)
9 LED Status Indicators
Mounting
Observe these guidelines when mounting a
controller.
Ensure the mounting surface can support the
controller, DIN rail, and any user-supplied
enclosure.
Mount the controller horizontally on 35 mm DIN
rail whenever possible.
Mount the controller in the proper mounting
position.
Mount the controller on a hard, even surface
whenever possible in wall-mount applications.
Use shims or washers to mount the controller
securely and evenly on the mounting surface.
Mount the controller in an area free of corrosive
vapors and observe the Ambient Conditions
requirements in Technical specifications.
Provide for sufficient space around the controller
for cable and wire connections for easy cover
removal and good ventilation through the
controller (50 mm [2 in.] minimum on the top,
bottom, and front of the controller).
Do not mount the controller on surfaces prone to
vibration, such as duct work.
Do not mount the controller in areas where
electromagnetic emissions from other
devices or wiring can interfere with controller
communication.
IOM3733 Input/Output Module Installation Guide2
