LN Series Free Programmable LN-PRGxxx-12 Controllers Installation Instructions 5

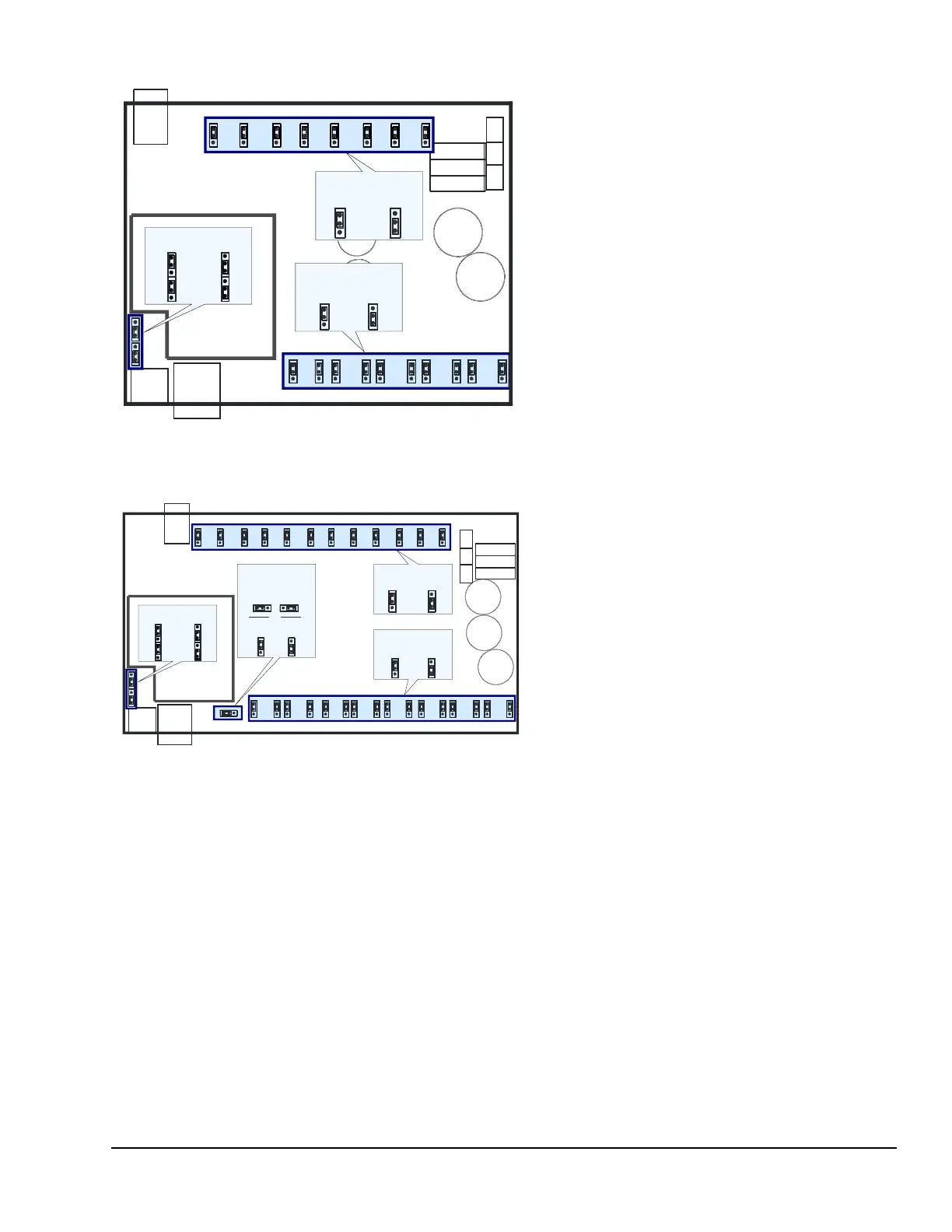

Figure 6: LN-PRG300-12 Controller Jumper
Locations
* Factory-default positions
Universal Outputs (UO)
0-10V / 0-20mA Select
0-10V* 0-20mA
Subnet
Port
Wireless
Port
Universal Inputs (UI)
0-20mA Enable / Disable
0-20mA
Disable*
0-20mA
Enable
L ON W ORKS Network Board
Net to Subnet Settings
Enabled Disabled*
Figure 7: LN-PRG4x0-12 and 6x0-12
Controller Jumper Location
* Factory-default positions
L ON W ORKS Network Board
Universal Outputs (UO)
0-10V / 0-20mA Select
0-10V* 0-20mA
Universal Inputs (UI)
0-20mA Enable / Disable
0-20mA
Disable*
0-20mA
Enable
PRG6x0-12 ONLY:
Subnetwork EOL
Termination
Subnet
Port
EOL Off
(Disabled)*
EOL On
(Enabled)
EOL Off
(Disabled)*
EOL On
(Enabled)
OR
Wireless
Port
Typical locations: Quantity may vary according to controller model
Net to Subnet Settings
Enabled Disabled*
