Note: When Connected appears, the blue LED on the BTCVT device turns on and remains
solid (not flashing), indicating a successful connection to the CCT. The SA/FC on the
BTCVT turns on and flashes, indicating that communications to the field controller are
established.
Bluetooth Quick Start Guide for Windows 10
1. Right-click the Bluetooth icon ( ) in your system tray, and then select Add a Device from
the pop-up menu. Alternatively, go to Start > Settings > Devices > Bluetooth & other devices.
Confirm that Bluetooth is turned on.
2. To pair your device, click on the button Add Bluetooth or other device. The Add a Device
wizard appears.
3. In the Add a Device wizard, click on the first option for Bluetooth. Click on the device to
connect.
Note: Your device's 12 digit MAC address is printed on the case of the device. To identify
your device in the Add a Device wizard, match the address on your BTCVT hardware to
the address listed in the wizard.
4. When you are prompted to enter the pairing code for the device, enter BTCVT. Follow
additional instructions as they appear, and then select Close.
5. Under Related Settings, select More Bluetooth Options to display the Bluetooth Settings
control panel.
6. In the Bluetooth Settings control panel, select the COM Ports tab. Two ports will be listed.
The port that includes COM1 in the name is the port number CCT requires.

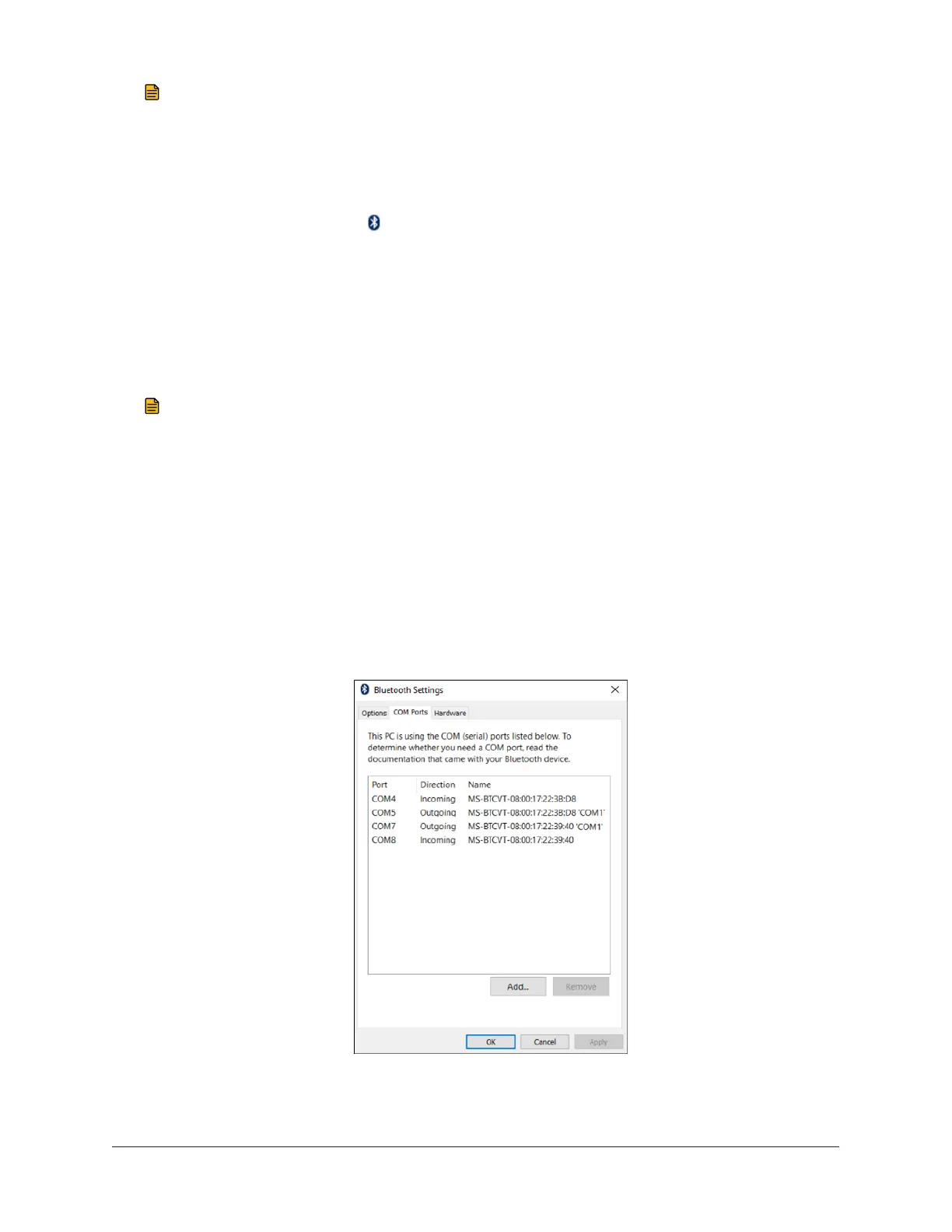

Figure 3: Selecting the COM Port
7. Launch the CCT and select Transfer > Transfer to Computer (Upload).
Metasys® CCT Bluetooth® Technology Communication Commissioning Guide6
