Johnson Controls NAE35 User Manual

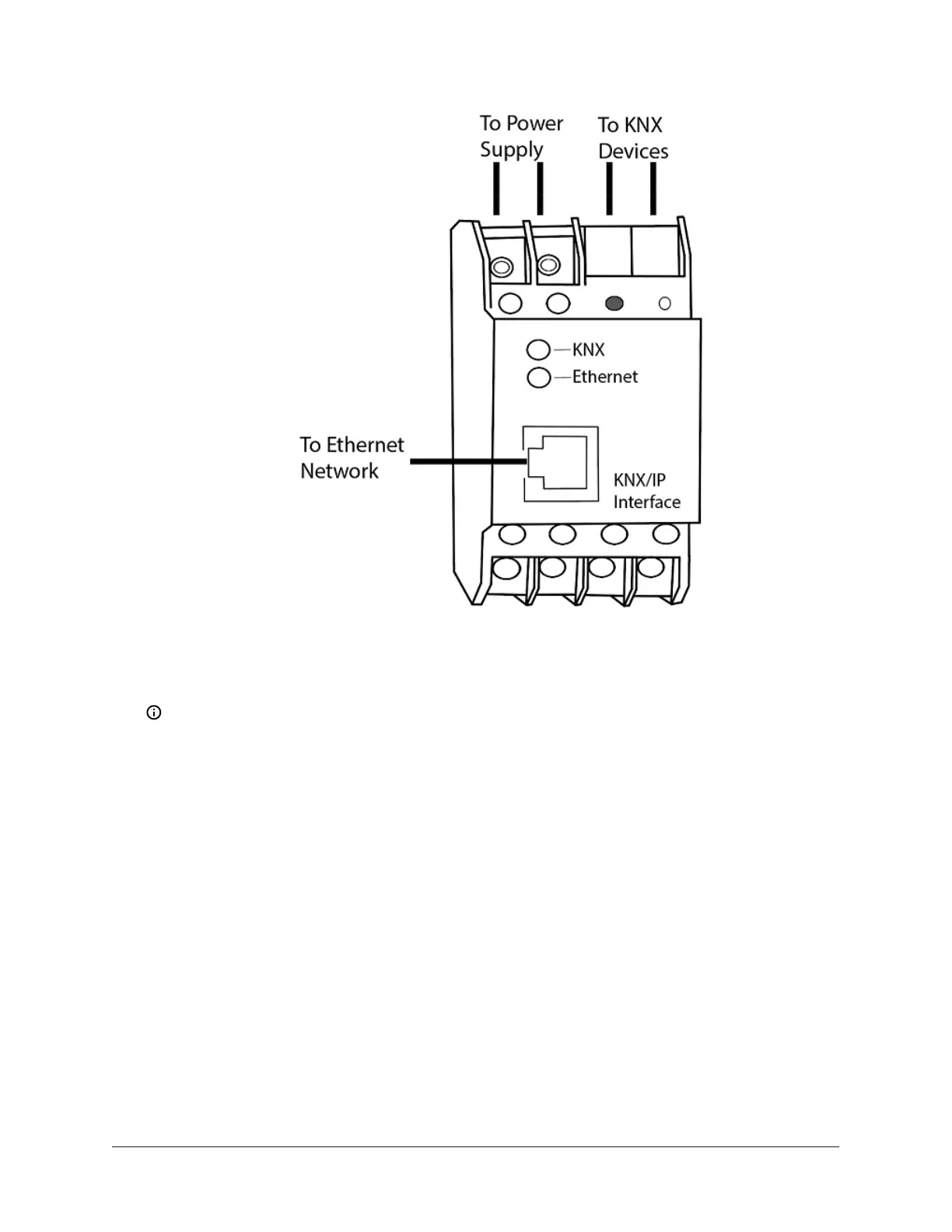

Figure 10: KNX/IP Interface Router
3. For a single KNX line, wire from the red and black terminals on the gateway to the devices. For
multiple KNX lines, wire from the red and black terminals on each gateway to the devices on
the same KNX line.
Note: Specific cabling can vary depending on the topology and site. See Wiring rules and
guidelines for network integrations.
4. Wire each KNX gateway to its own dedicated power supply on the KNX line.
13NAE35/NAE45 Installation Guide

Johnson Controls NAE35 Specifications
