Network Control Module 300 Series Technical Bulletin 91
C
NCM Diagnostics
Metasys
Release 9.01 or
Later Installed?
No
Return
Data Collected
Map AD Objects to
NCM Diagnostics
No
Idle Time >
70%?
Take Corrective
Action
Acquired
Memory
Depleted?
Take Corrective
Action
JCB TIME >
12%
Take Corrective
Action
Return
Yes
Yes
Yes
Yes
Yes
No
No
No

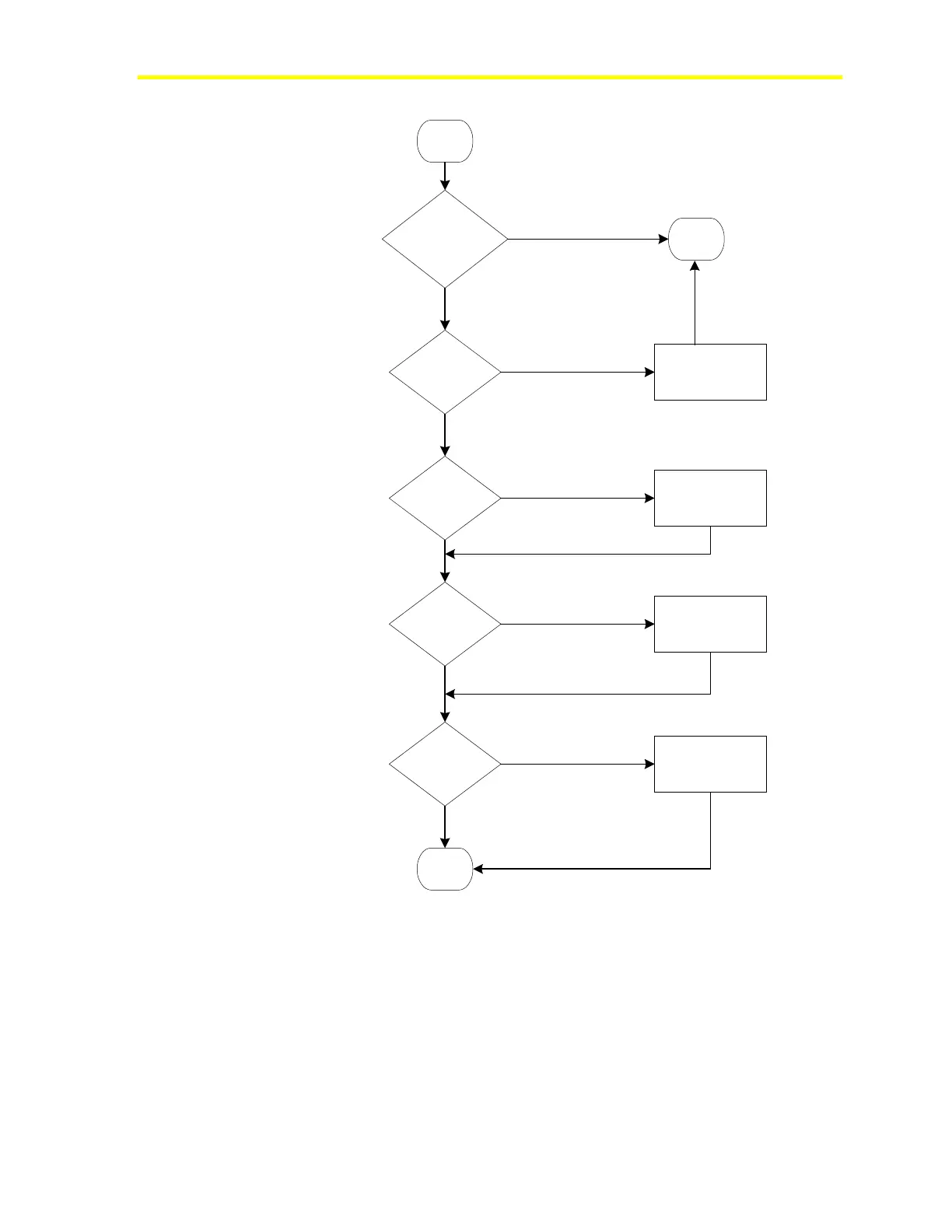

Figure 36: NCM Diagnostics Flowchart
