D
imensions

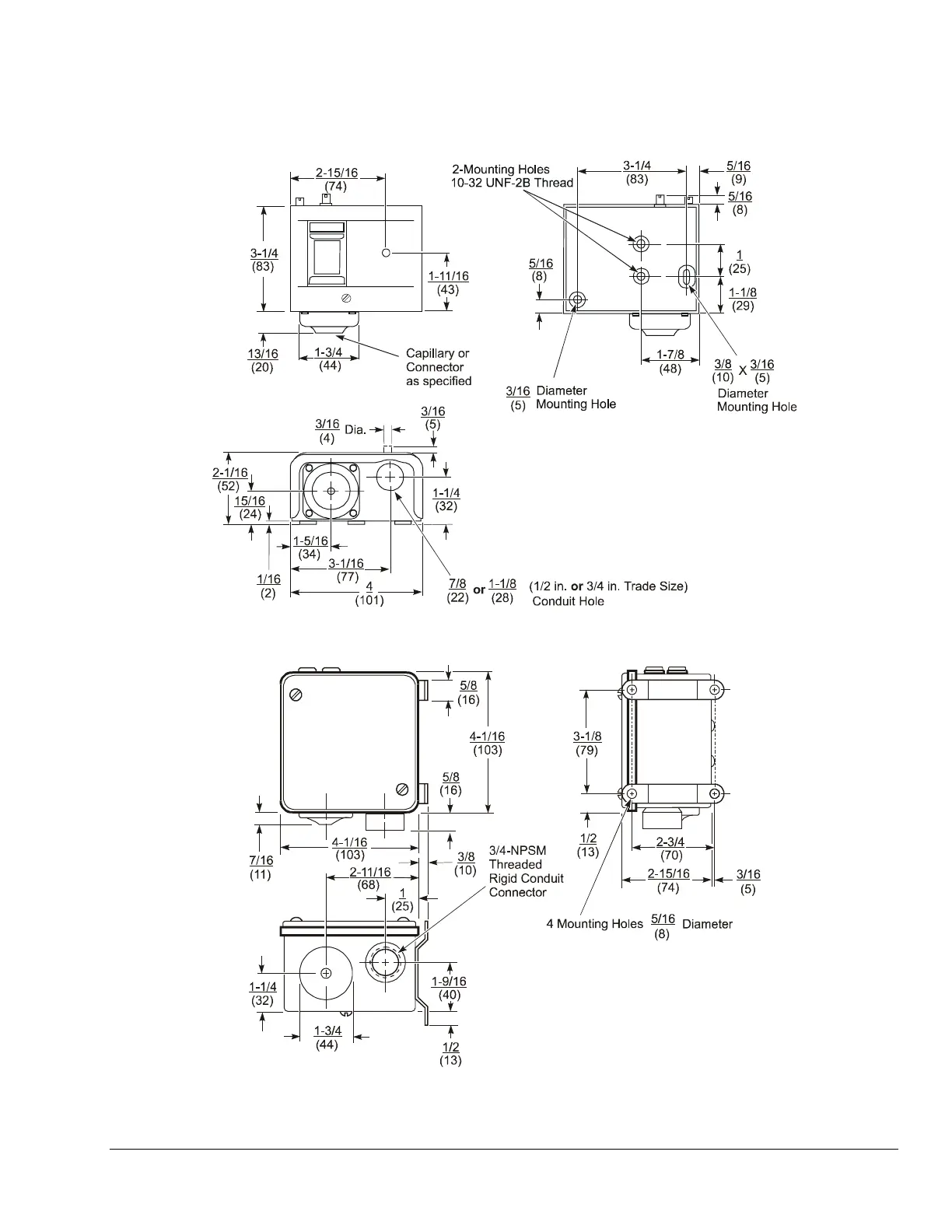

Figure 2: Dimensions for Low Pressure Controls with NEMA 1 Enclosure (in./mm)
Figure 3: Dimensions for Low Pressure Controls with NEMA 3R Enclosure (in./mm)
Note: These dimensions are nominal and are subject to accepted manufacturing tolerances and application variables.
P70, P72, and P170 Controls for Low Pressure Applications Product/Technical Bulletin 3
