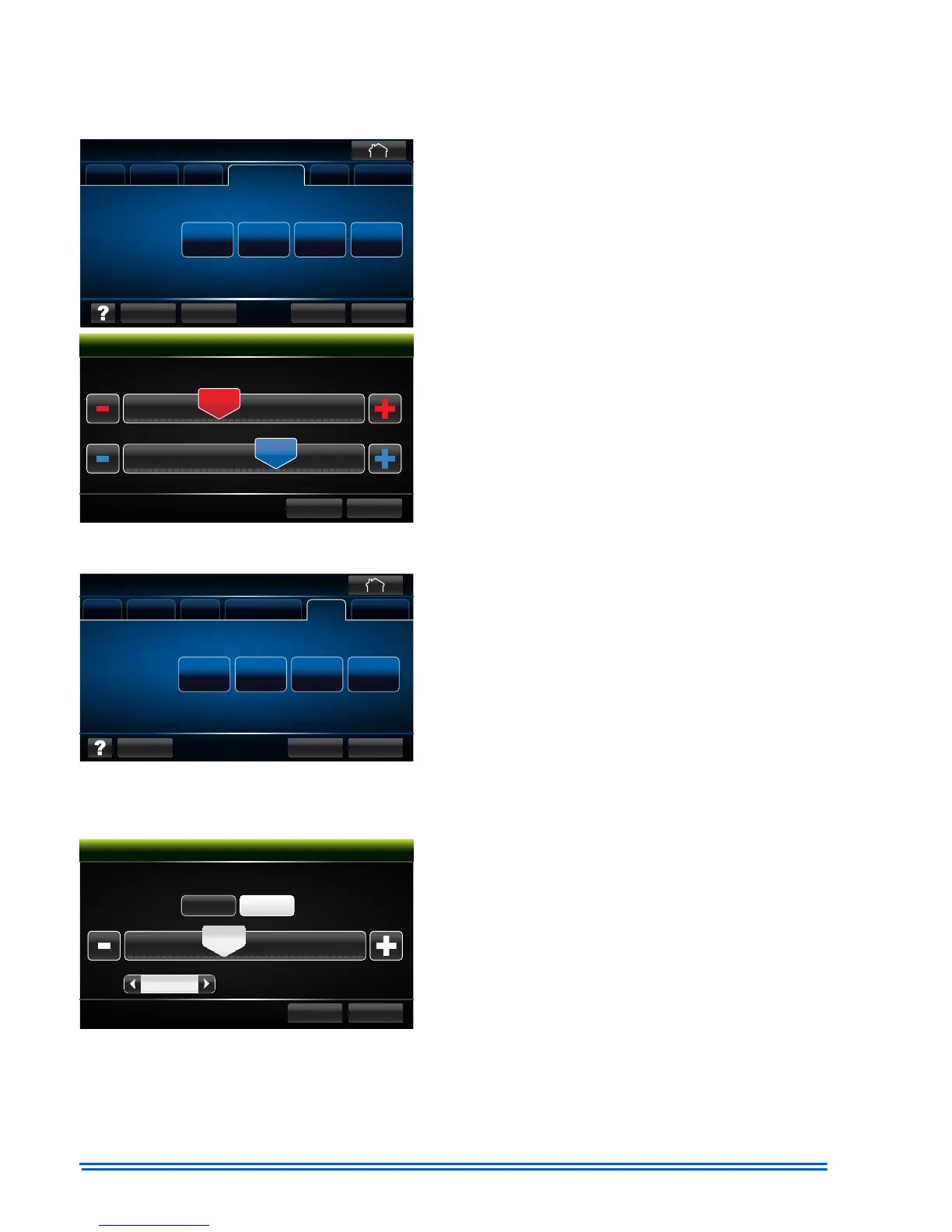

Step 10 - Select Event to edit temperature set-
points.
Step 11 - Adjust your Heating and Cooling set-
points.
Step 12 - Select OK.
Step 13 - Repeat steps 10-12 to program tempera-
ture for other events.
Step 14 - Press Next.
Step 15 - Select Event to edit fan settings.
Step 16 - Select the Fan function.
a. Auto
b. Manual
NOTE: Manual mode is not available for all
systems.
i. Adjust the speed of your fan motor.
NOTE: The lower the speed the less electricity
consumed.
ii. Select the fan run time. Choices are
15, 30, and 45 minutes per hour or
Always.
Step 17 - Select OK.
Step 18 - Repeat steps 15-17 to select fan mode for
other events.
Step 19 - Press Next.
NAME DAY TIME TEMPERATURE FAN HUMIDITY
Awake Day Return Sleep
Wed
73° 70° 73° 70° 73° 70° 73° 70°
Schedule
Select Event
to edit:
NextCancel Save
+
Quit
Previous
Schedule / Temperature Adjust
Adjust temperatures for Return
Cancel OK
50% 100%
85°50°
65°
75°
NAME DAY TIME TEMPERATURE FAN HUMIDITY
Schedule
NextCancel
Previous
Awake
Auto
Day
85%
Return
Auto
Sleep
75%
Wed
Select Event
to edit:
Cancel OK
Schedule / Fan Adjust
Awake:
Auto
Manual
Run fan
xx% 100%
Always
Function
45%
