Humidity

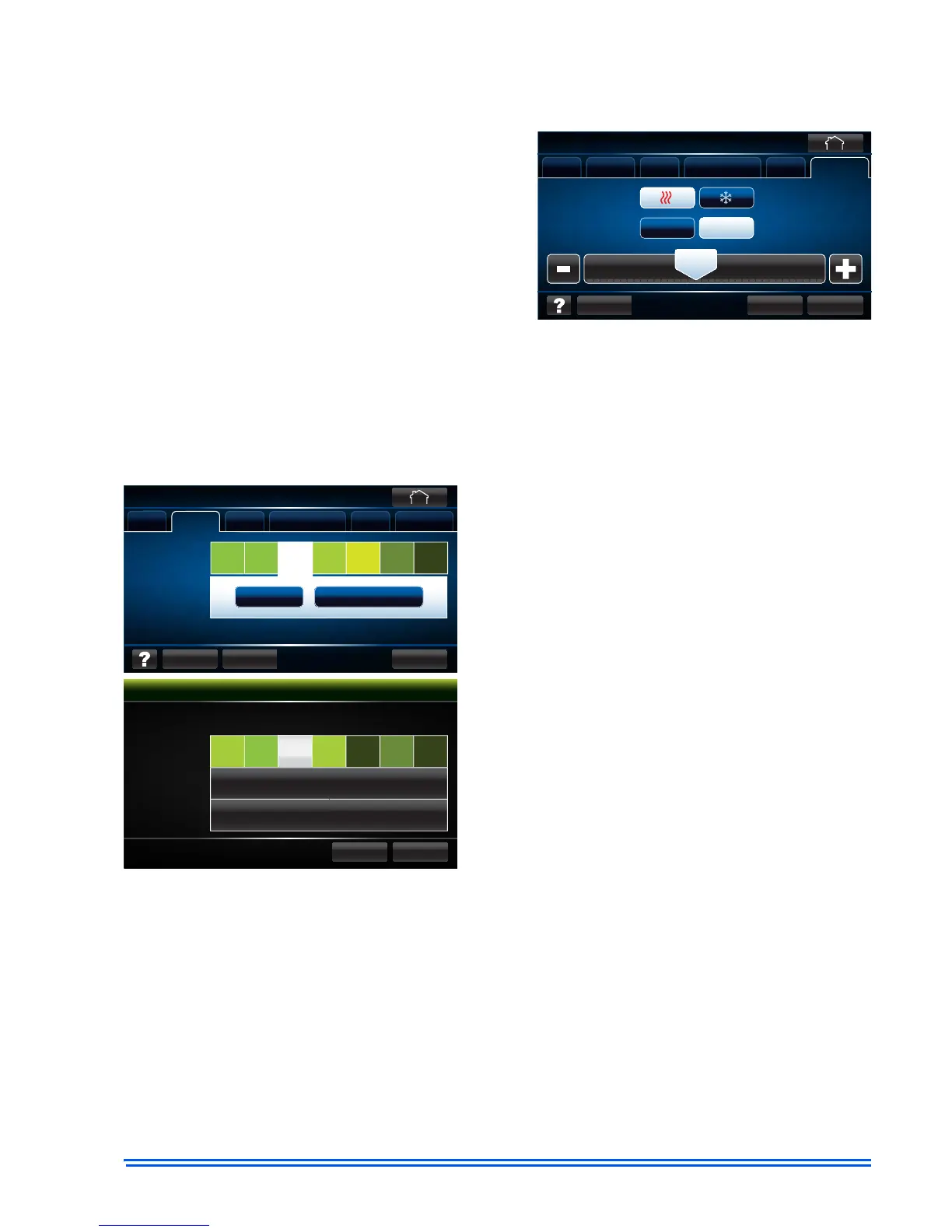

Step 20 - Select the Humidity mode.
a. Humidification – select the Heat mode
symbol.
b. Dehumidification – select the Cool
mode symbol.
Step 21 - Select the Humidity function.
a. Auto – automatically sets the humidity
setpoint based on indoor temperature.
NOTE: Auto mode requires an outdoor sensor.
b. Manual – manually set the humidity setpoint.
i. Select your desired indoor humidity percentage level.
Step 22 - Press Next.
NOTE: Steps 3-22 illustrate how to set a single day’s program schedule. You can copy this day to
subsequent days (see Copy Day section below), or set another day by repeating steps 3-22.
Copy Day
Saving a Program Schedule
Step 27 - Select Save + Quit.
Step 23 - Press Copy.
Step 24 - Select individual days, Weekdays,
Weekend or Everyday.
Step 25 - Press OK.
Step 26 - Repeat steps 23-25 to copy settings to
other days.
NAME DAY TIME TEMPERATURE FAN HUMIDITY
Schedule
Auto
Manual
NextCancel
Previous
xx% 100%
Wed
%RH When Heating...
Function:
Mode:
45%
Edit
Schedule
Cancel
Schedule 3
Tu Fr Sa SuTuMo ThWe
Copy... Use Energy Saver
NAME DAY TIME TEMPERATURE FAN HUMIDITY
Save
+
Quit
Select day
to edit:
Edit
Schedule
Cancel
Schedule 3
Tu Fr Sa SuTuMo ThWe
Copy... Use Energy Saver
NAME DAY TIME TEMPERATURE FAN HUMIDITY
Save
+
Quit
Select day
to edit:
Copy Day to...
Mo Tu Th Fr Sa SuWe
Everyday
Weekdays Weekends
Cancel OK
Select Day or Group to Apply Copied Day (We)
