B. Deleting an Existing Program Schedule
C. Viewing an Existing Program Schedule
D. Importing / Exporting Program Schedules
Step 1 - Select Import or Export functionality.
For Import
Step 2 - Insert the USB into the bottom of the thermostat when prompted.
Step 3 - When prompted that import is complete, remove USB from drive.
Step 4 - Select OK after import is complete.
For Export
Step 1 -
Step 2 - Insert the USB into the bottom of the thermostat when prompted.
Step 3 - When prompted that export is complete, remove USB from drive.
Step 4 - Select OK after export is complete.

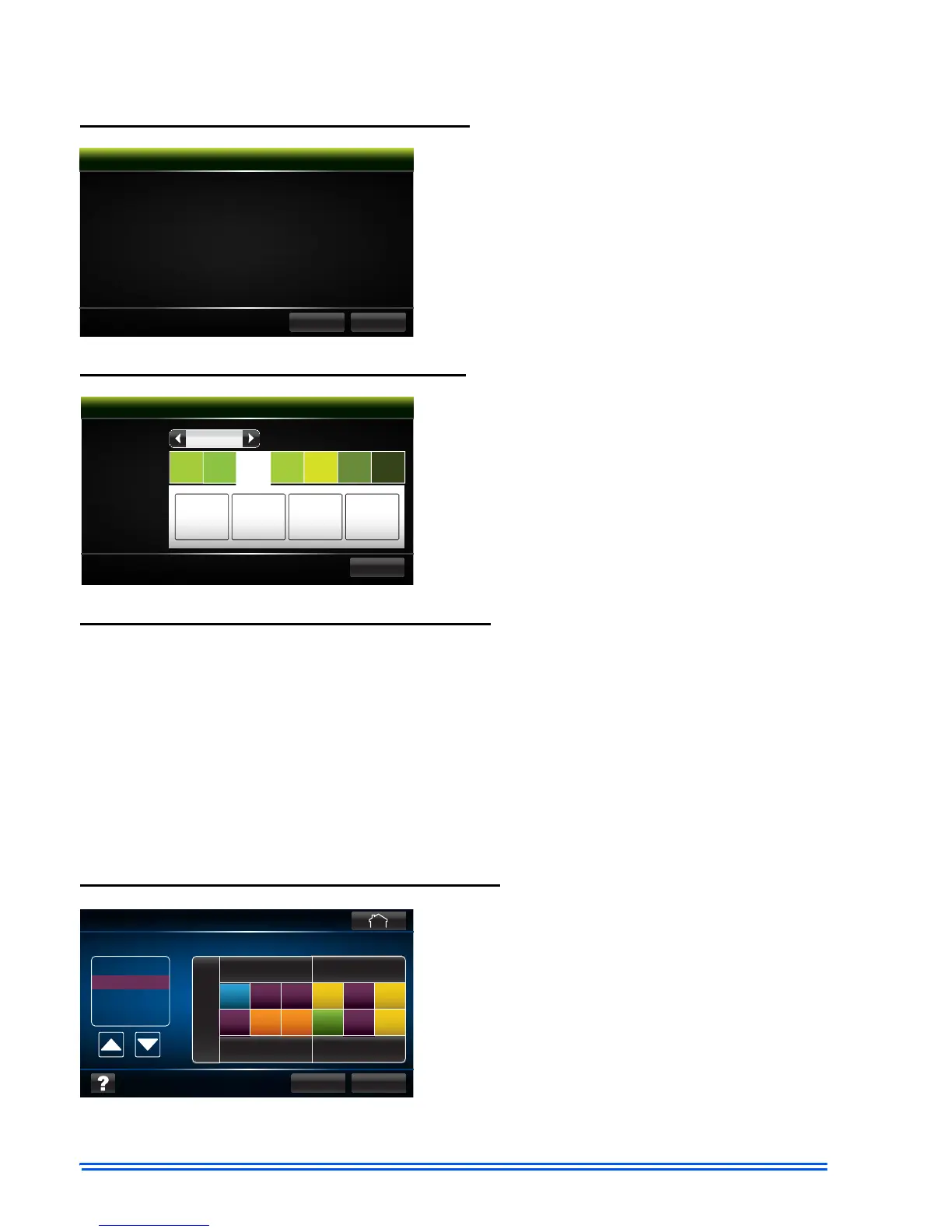

E. Assigning Program Schedules to Calendar
Step 1 - Press Yes.
Step 1 - Select Schedule to view by pressing left or
right arrows.
Step 2 - Select Day to view.
Step 3 - Press Close.
Step 1 - Select Schedule to assign to calendar by
pressing up or down arrows.
Step 2 - Select individual months, Seasons, or All
Year.
Step 3 - Repeat steps 1-2 for each schedule's cal-
endar assignment.
Step 4 - Press Done.
NOTE: In order to run a program schedule, it must
be assigned to the calendar.
Delete?
Delete this schedule?
YesNo
Close
View
(Active in Calendar)
Schedule 3
Schedule Viewer
Awake
6:00am
73° 70°
Day
8:00am
73° 70°
Return
5:00pm
70° 65°
Sleep
10:00pm
73° 70°
Mo Tu Th Fr Sa SuWe
Cancel Done
Schedule
Energy Saver
Schedule 1
Schedule 2
Schedule 3
Select Schedule: Assign to Calendar
Dec Jan Feb Mar
Spring
FallSummer
Winter
All Year
Apr May
June July Aug Sep Oct Nov
