Johnson Controls TEC3030 - Wiring Diagrams

Wiring diagrams
See Table 3 for terminal identification.

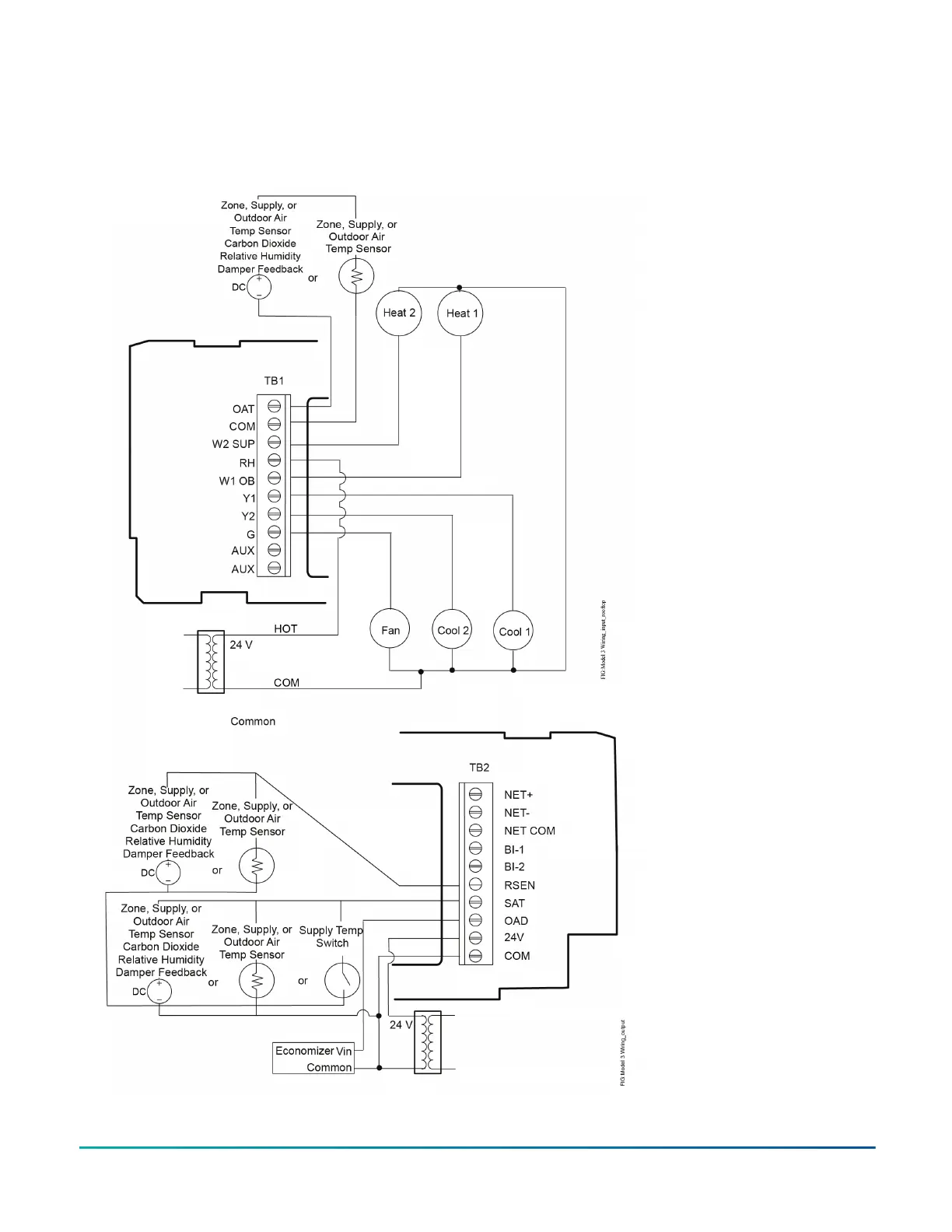

Figure 5: Staged wiring diagram - rooftop unit
TEC3000 Series Networked and Wireless Single- or Two-stage Economizer Thermostat Controllers Quick Start Guide6
