Johnson Controls V46SA Series User Manual

V46SA
Issue 27/02/02
Catalogue Section 7 © 1997 Johnson Controls, Inc.
Order No. PD-V46SA-E
4
Type Number Selection Table
V46SA-9101
75 cm capillary style 45A soldered
to power element
V46SA-9110
75 cm capillary style 50 (separate)
V46SA-9111
Nickel plated seat,
75 cm capillary style 50 (separate)
V46SA-9300
Style 5
V46SA-9600
75 cm capillary style 13 (separate)
V46SA-9950
75 cm capillary style 34 (separate)
V46SA-9951
75 cm capillary style 34 soldered to
power element
Repair and Replacement
Repair is not possible. In case of an improperly
functioning control, please check with your
nearest supplier. When contacting the supplier
for a replacement you should state the type-
model number which can be found on the data
plate.

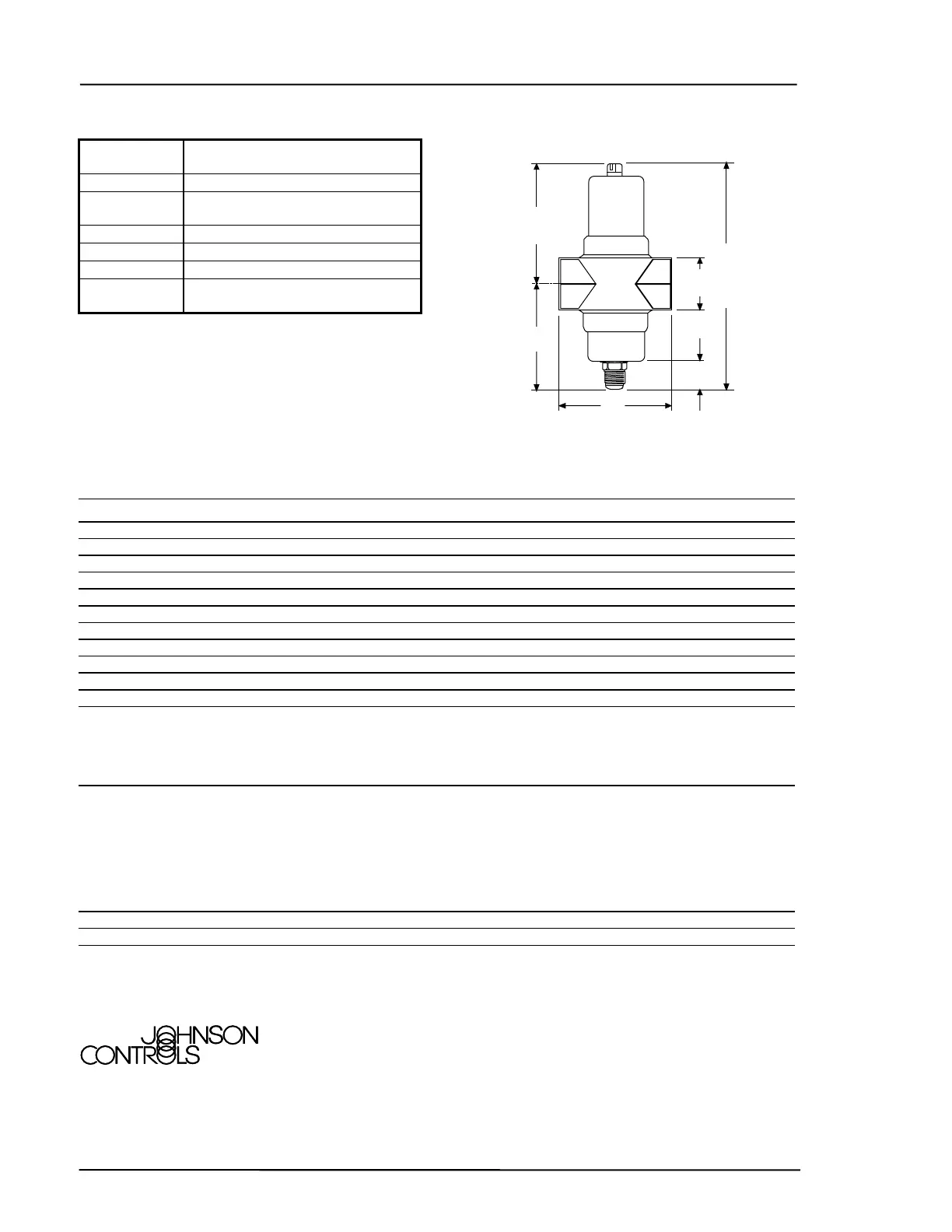

Dimensions
109
23.819
51
50 59
Fig. 7
Specifications
Size
3
/
8
"
Control action direct (open on pressure increase)
Operating pressure range 5-23 bar (non-corrosive refr.)
Max. refrig. overrun pressure 28 bar
Max. water pressure 23 bar
Operating water pressure max. 10 bar
Max. ∆p across valve 6 bar
Max. water supply temp. 90°C
Min. water supply temp. -20°C (care should be taken, the valve does not freeze up)
Valve hysteresis ≈ 2.5 bar at 10 bar setting
K
v
value 0.5
Pipe connection ISO 228 ( ISO 228 = DIN 259-Rp = BSPP)
Pressure connections Style 5
Style 13 incl. 75 cm capillary
Style 50 incl. 75 cm capillary
Style 34 incl. 75 cm capillary
Style 45A incl. 75 cm capillary
Materials body : brass
seat : alum. bronze
disc : BUNA-N
disc cup : brass
stem : brass
diaphragms : BUNA-N
bellows : phosphor bronze
bellows cup : brass
Package individual pack
Weight 0,45 kg
The performance specifications are nominal and conform to acceptable industry standards. For applications at conditions beyond
these specifications, consult the local Johnson Controls office or representative. Johnson Controls shall not be liable for damages
resulting from misapplication or misuse of its products.
Johnson Controls International, Inc.
Headquarters: Milwaukee, WI, USA
European Headquarters: Brussels, Belgium
European Factories: Lomagna (Italy), Leeuwarden (The Netherlands) and Essen (Germany)
Branch Offices: Principal European Cities.
www.johnsoncontrols.com
This document is subject to change Printed in Europe
