Johnson Controls VA-7700 Series Installation Instructions

VA-7700 Series
P/N 14-88328-55 - Rev. G Issue Date 05 2016
VA-7740-xx01 VA-7740-xx03 VA-7700-xx01 VA-7700-xx03

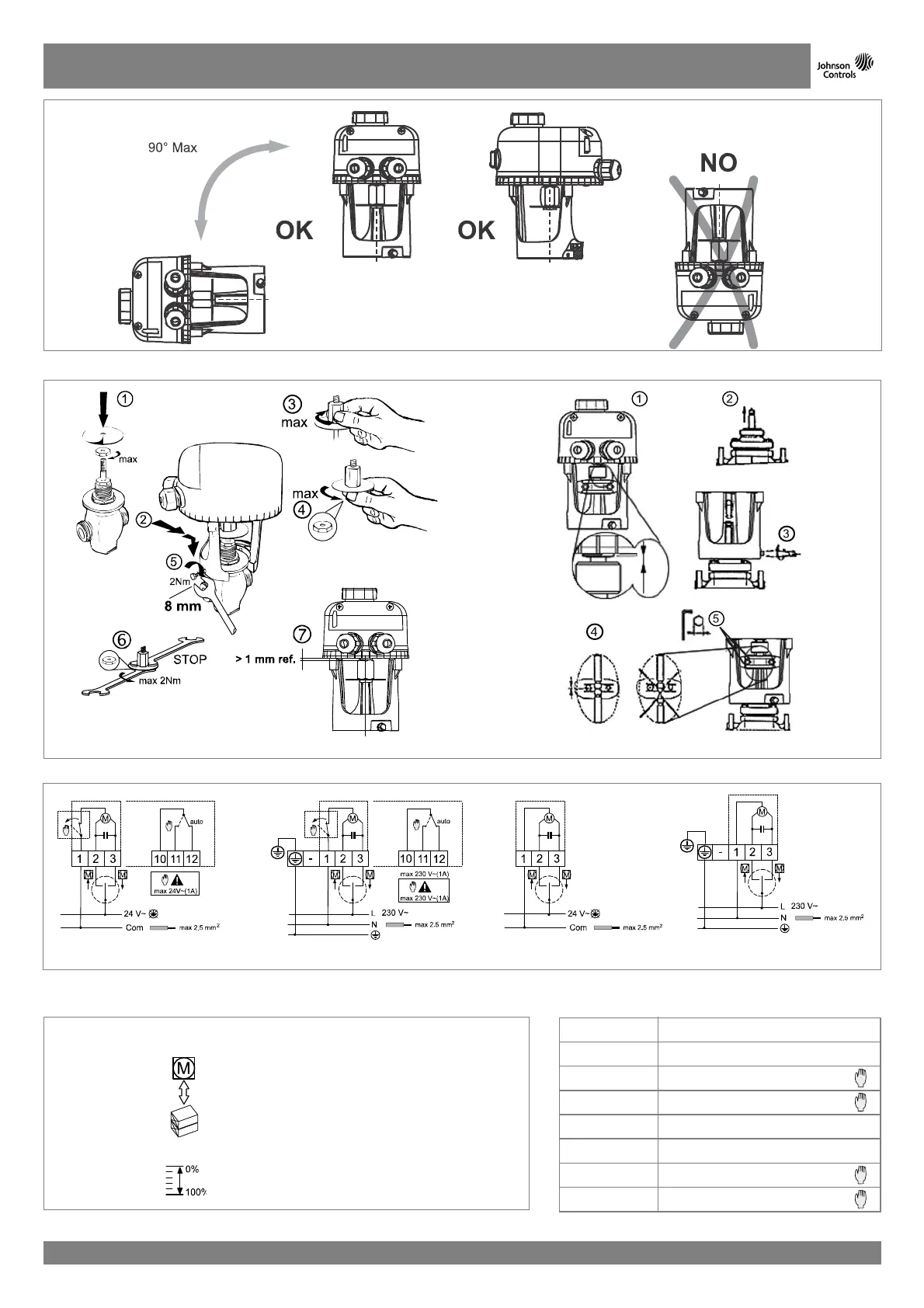

Figure 7: Wiring Diagrams
max.
5 mm
2-4 mm
0 mm
6 mm
2 mm
VA-77xx-100x VA-77xx-820x
VA-7700-1001 24 VAC ±15% - 50-60 Hz - 3,2 VA
VA-7700-1003 230 VAC ±15% - 50-60 Hz - 4,9 VA
VA-7740-1001 24 VAC ±15% - 50-60 Hz - 3,2 VA
VA-7740-1003 230 VAC ±15% - 50-60 Hz - 4,9 VA
VA-7700-8201 24 VAC ±15% - 50-60 Hz - 3,2 VA
VA-7700-8203 230 VAC ±15% - 50-60 Hz - 4,9 VA
VA-7740-8201 24 VAC 15% - 50-60 Hz - 3,2 VA
VA-7740-8203 230 VAC ±15% - 50-60 Hz - 4,9 VA
IP54 (IEC 60529)
Tmin/max
Operation:
Storage:
-5...+55 °C, 10...90%RH, non condensing
-20...+65 °C, 10...90%RH, non condensing
Max 20 mm
10.5
8,8
sec/mm (50 Hz)
sec/mm (60 Hz)
Figure 6: Mounting on the valve
Figure 5: Mounting Positions
Figure 4: Mounting Positions
Ordering Codes
