VA9208-GGx-x Series Proportional Electric Spring Return Valve Actuators Installation Instructions 7
4. Insert the drive shaft into Side A (Figure 12).
5. Install linkage base on Side A using the two
#10 14 x 2.75 in long screws (Figure 13). The
recommended torque is 20 to 24 lb·in.
(2.3 to 2.7 N·m).
6. Insert fixed pointer and M4x0.7x83 mm long screw
into the Side B actuator hub. Direct the arrow on
the pointer to 0%.
7. Install the actuator on the ball valve. Tighten the
actuator mounting screw to a torque of
10 to 12 lb·in. (1.1 to 1.4 N·m) and snap the large
adjustable pointer into place.

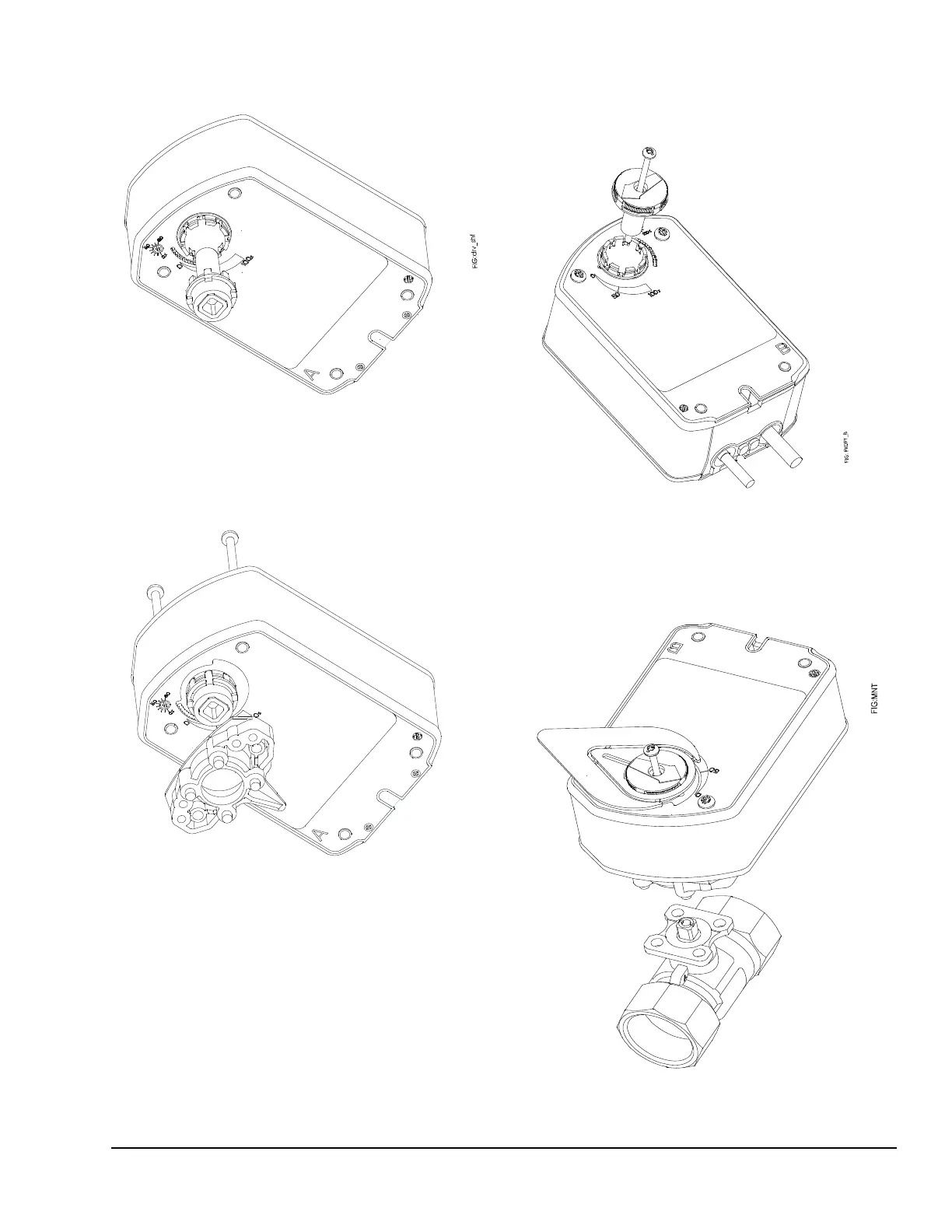

Figure 12: Inserting the Drive
Figure 13: Installing the Linkage
Figure 14: Installing the Fixed Pointer
Figure 15: Mount the Actuator
