10 Installation Guide
www.johnsoncontrols.com Issue Number: 2
Observe the following guidelines when mounting a drive:
• Mount the drive on a vertical surface with the heatsink fins orientated vertically.

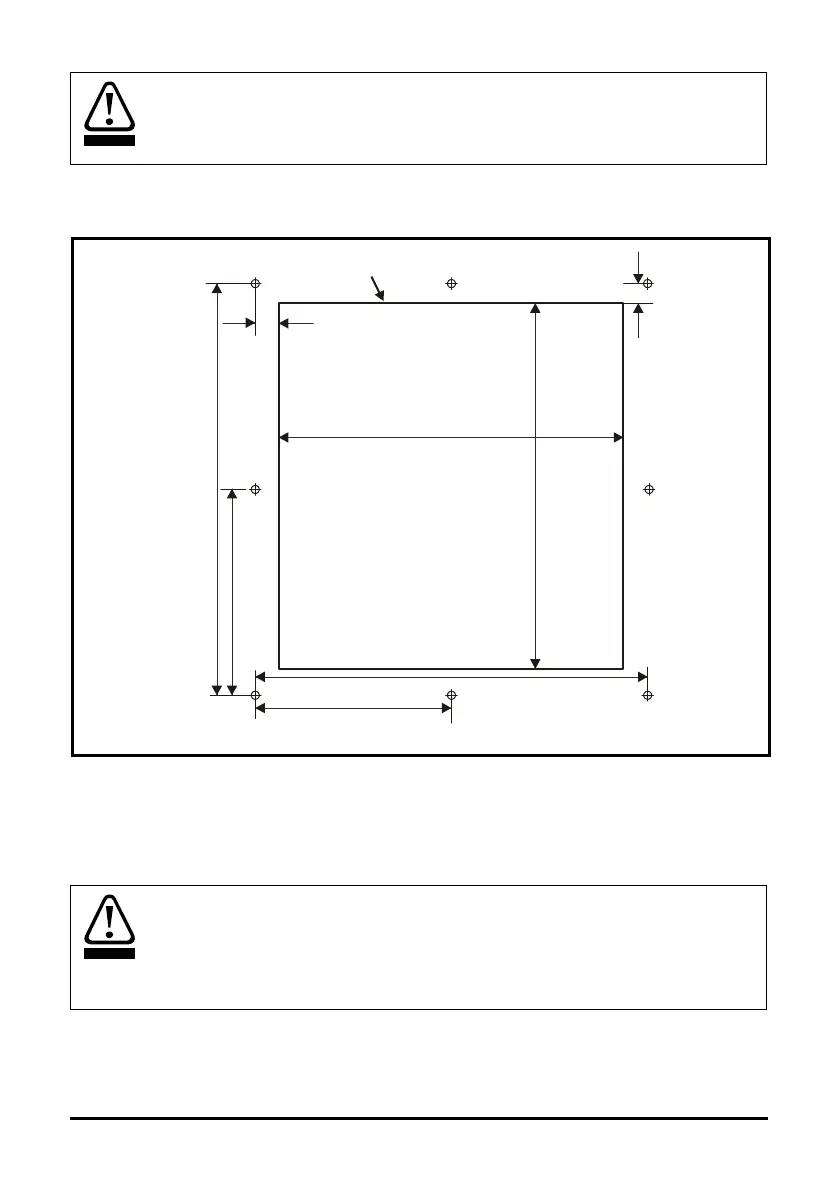

Figure 3-2 Mounting the drive
Store and mount the drive in a location protected from condensation, explosive vapors, corrosive
gas, water and dust.
The drive has an Ingress Protection rating of 00 (UL 'Open type' enclosure rating).
The weight of the drive is 1 kg (2.2lb).
The drive has an open chassis with exposed live parts, therefore it must not be
accessed while the AC supply is connected.
Enclosure
The drive is intended to be mounted in an enclosure which prevents access except by
trained and authorized personnel, and which prevents the ingress of contamination. It
is designed for use in an environment classified as pollution degree 2 in accordance
with IEC 60664-1. This means that only dry, non-conducting contamination is
acceptable.
6.0in
(15.24cm)
6.38in
(16.21cm)
0.31in (0.79cm)
3.25in
(8.26cm)
6.5in
(16.5cm)
3.5in
(8.9cm)
7.0in
