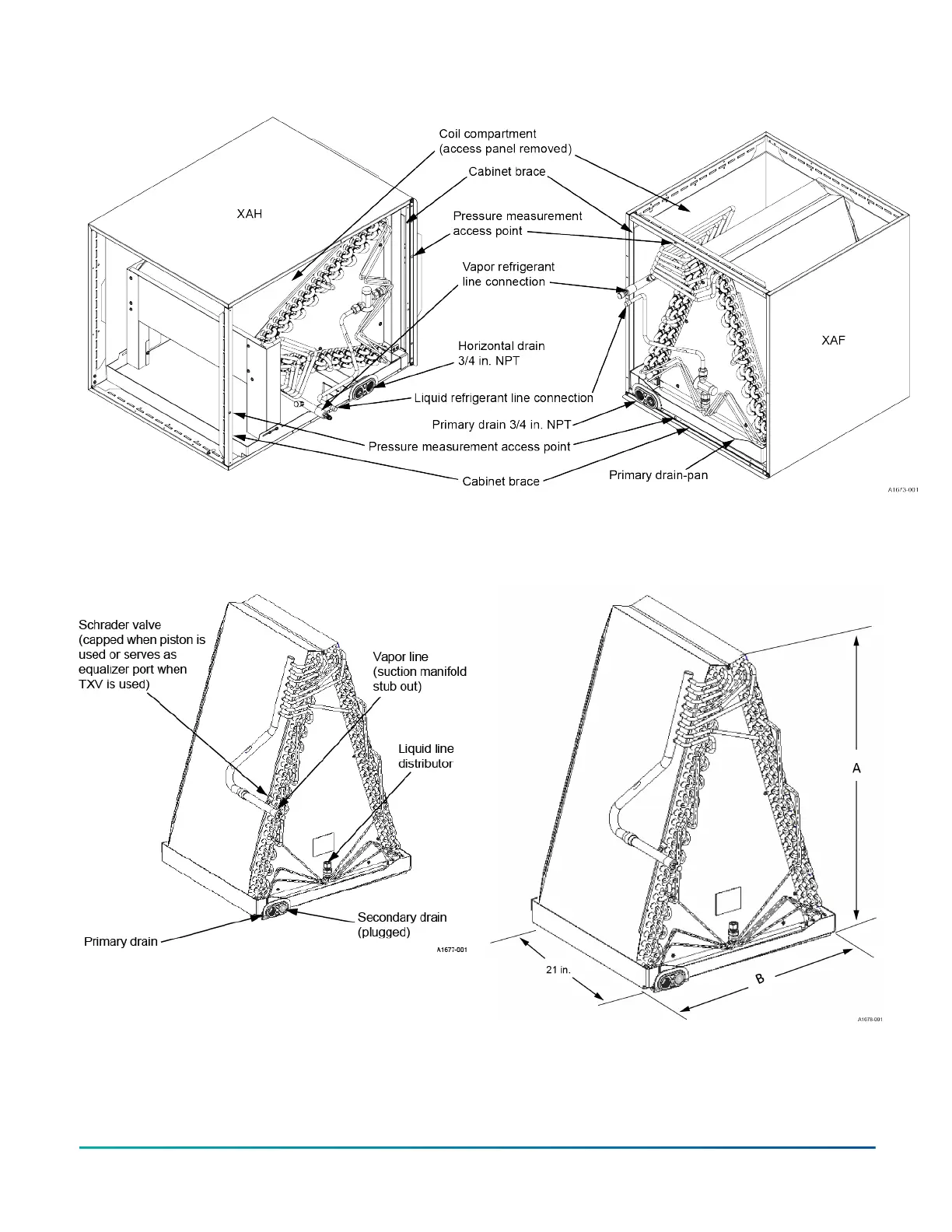

Figure 7: Component location with access panel removed - XAF and XAH coils
Figure 8: Component location - XAU uncased upflow or
downflow coil
Figure 9: Dimensions - XAU uncased upflow or
downflow coil
Installation Manual: XAF, XAH, and XAU Series - Full Cased and Uncased Coils for Cooling and Heat Pumps 11
