Johnson Controls XAF Series - Page 34

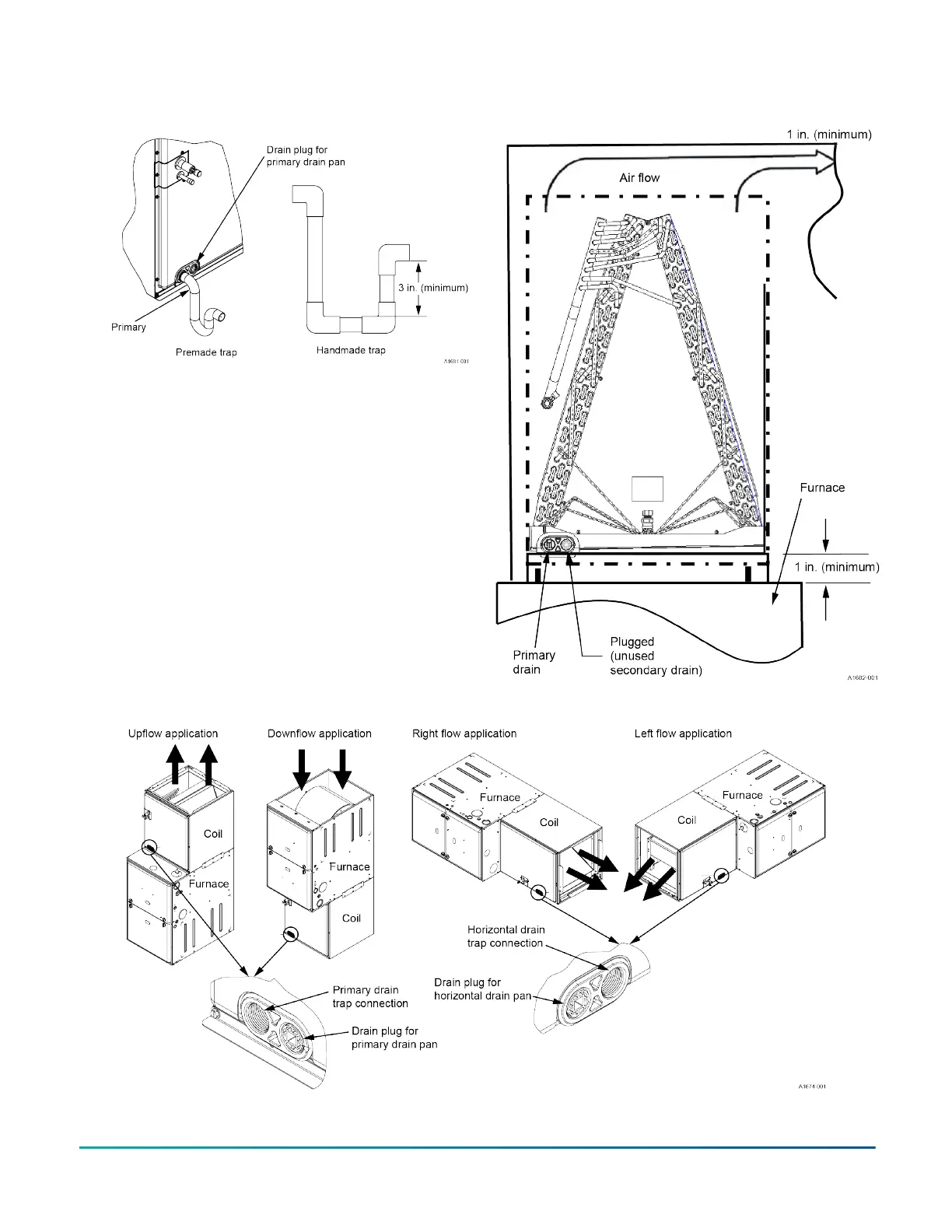

Figure 39: Drain traps Figure 40: Location of trapped and plugged drain
connections - XAU
Figure 41: Location of coil trapped and plugged drain connections with furnace - XAF and XAH
Installation Manual: XAF, XAH, and XAU Series - Full Cased and Uncased Coils for Cooling and Heat Pumps34
Johnson Controls Ducted Systems
