Johnson Controls ZU Seies - ZUT06 through T12 Unit Electrical Entry; ZUT06 through T10 Unit Side Duct Openings

5566218-TIM-B-1118
14 Johnson Controls Ducted Systems

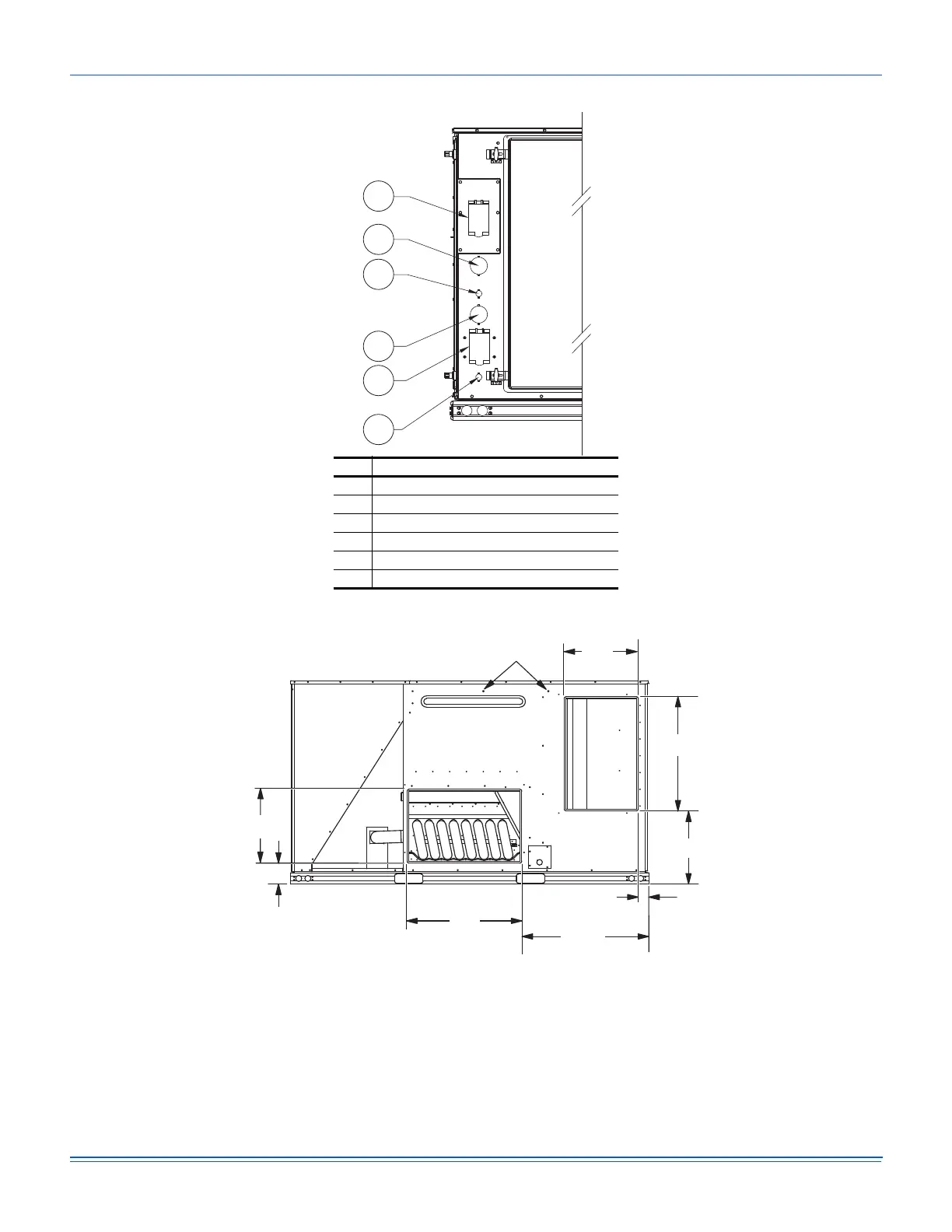

Figure 11: ZUT06 through T12 unit electrical entry
Figure 12: ZUT06 through T10 unit side duct openings
Item Description
A Disconnect switch cover
B Power entry Ø 2-1/2
C Control entry Ø 7/8
D Power entry Ø 2-1/2
E Convenience outlet cover
F Convenience outlet power entry Ø 7/8
A
B
C
D
E
F
D o t P l u g s
5 - 5 /3 2
3 1 - 1 1 /1 6
2 - 3 1 /3 2
1 8 - 1 /4
Return
Air
Supply Air
A
B
C
D
