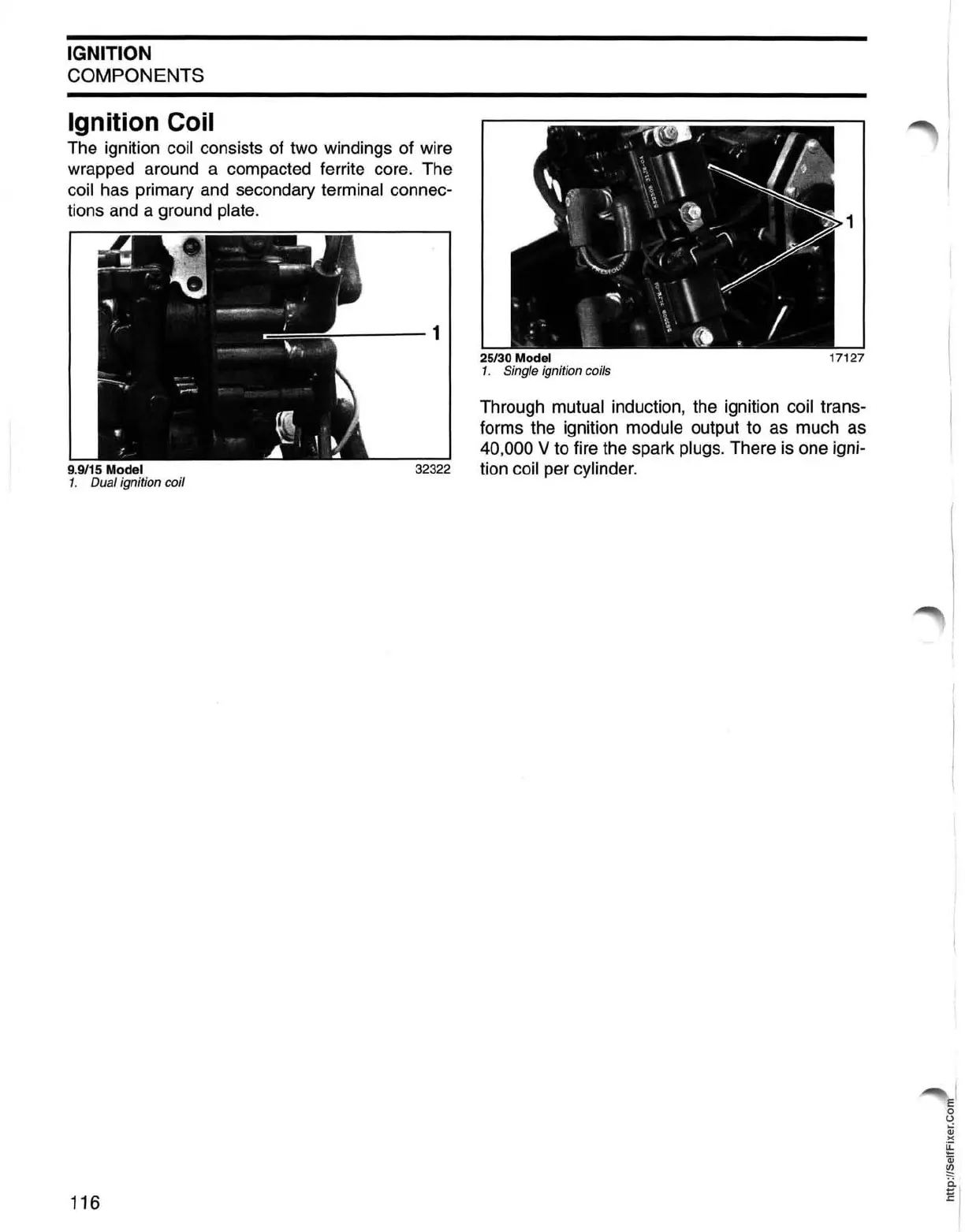

IGNITION
COMPONENTS
Ignition Coil
The ignition coil consists of two windings of wire
wrapped around a compacted ferrite core. The
coil has primary
and
secondary terminal connec-
tions and a ground
plate.
----1
25130
Model
17127
1. Single ignition coils
Through mutual induction, the ignition coil trans-
forms the ignition
module output to
as
much
as
40,000 V to fire the spark plugs. There is one igni-
32322 tion coil per cylinder.
9.9/15 Model
1. Dualignition coil
116
