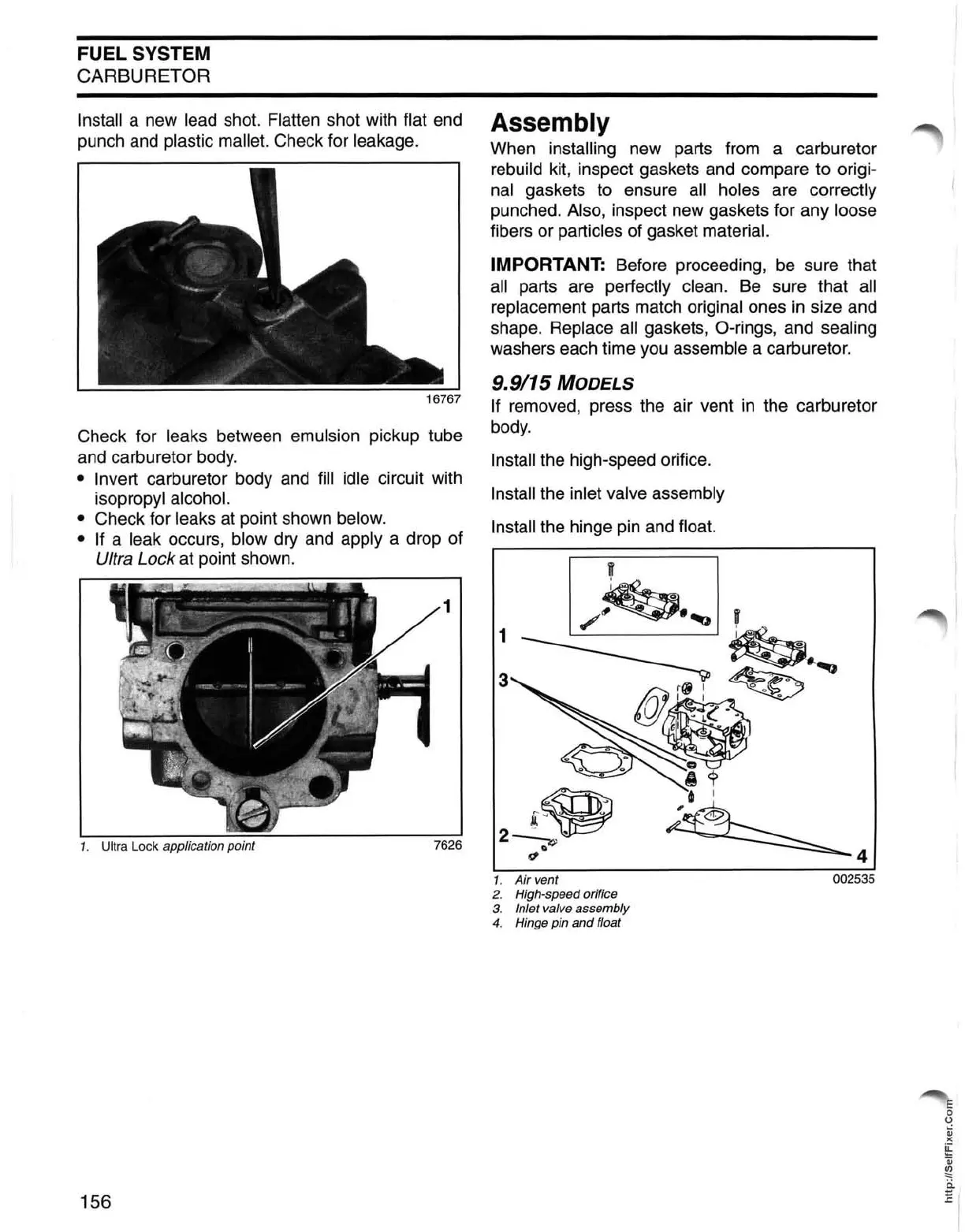

FUEL SYSTEM
CARBURETOR
Install a new lead shot. Flatten shot with flat end
punch
and
plastic mallet. Check for leakage.
Check for leaks between emulsion pickup tube
and carburetor
body.
• Invert carburetor body and fill idle circuit with
isopropyl alcohol.
•
Check for leaks
at
point shown below.
•
If
a leak occurs, blow dry and apply a drop of
Ultra Lock at point shown.
1
1.
Ultra Lock application point
7626
156
Assembly
When installing new parts from a carburetor
rebuild
kit,
inspect gaskets and compare to origi-
nal gaskets to ensure all holes are correctly
punched. Also, inspect new gaskets for any loose
fibers or particles of gasket material.
IMPORTANT: Before proceeding,
be
sure that
all
parts are perfectly clean. Be sure that all
replacement parts match original ones
in
size and
shape.
Replace all gaskets, O-rings, and sealing
washers each time you assemble a carburetor.
9.9/15 MODELS
If
removed, press the air vent
in
the carburetor
body.
Install the high-speed orifice.
Install the inlet valve assembly
Install
the hinge pin and float.
1.
Air
vent
2. High-speed orifice
3. Inlet valve assembly
4. Hinge pin and float
4
002535
