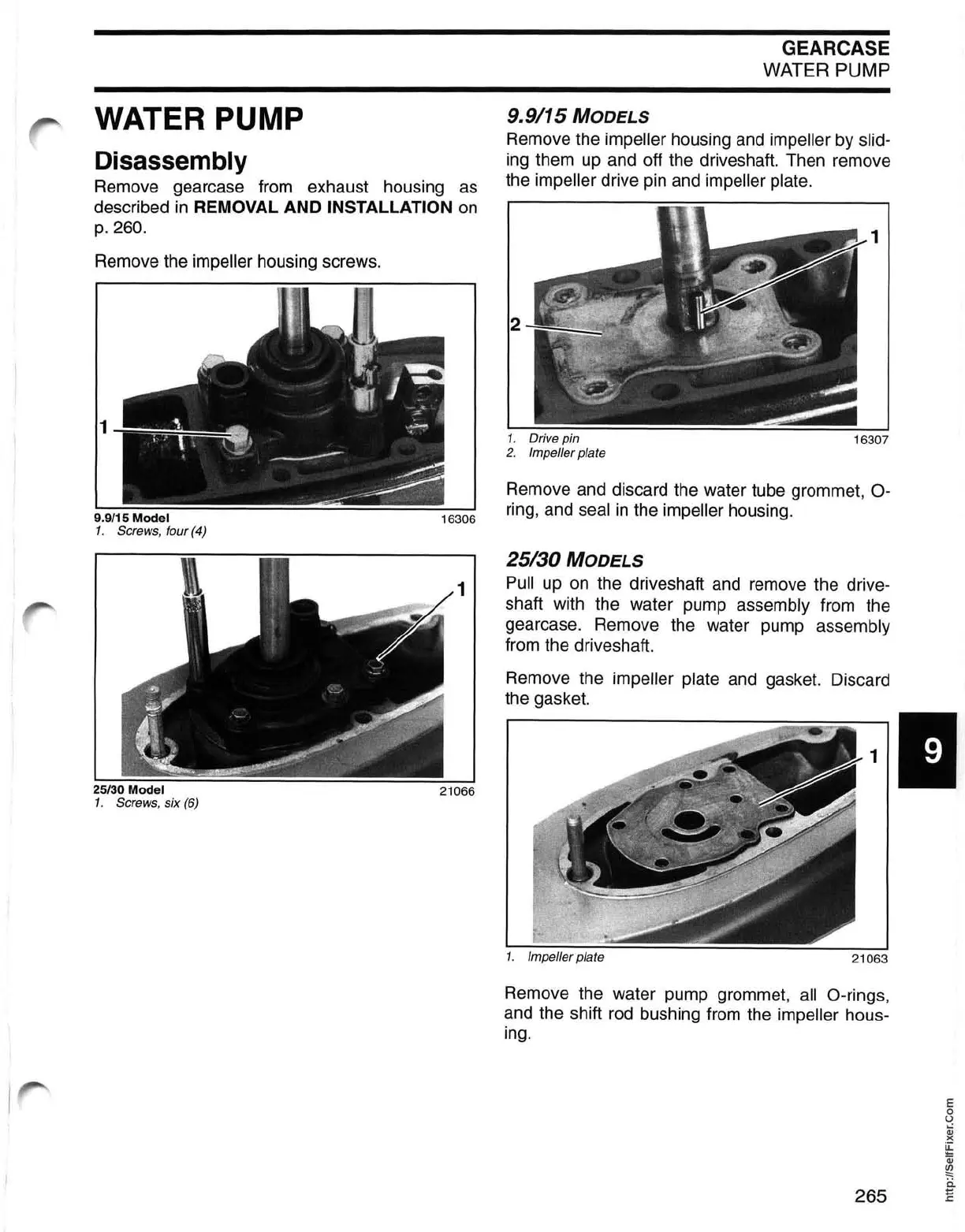

WATER PUMP
Disassembly
Remove gearcase from exhaust housing
as
described
in
REMOVAL AND INSTALLATION
on
p.260.
Remove the impeller housing screws.
9.9/15 Model
16306
1. Screws, four (4)
9.9/15
MODELS
GEARCASE
WATER PUMP
Remove the impeller housing and impeller by slid-
ing them
up
and off the driveshaft. Then remove
the
impeller drive pin and impeller plate.
, 1
2
1, Drive pin
16307
2, Impeller plate
Remove and discard the water tube grommet, D-
ring, and seal
in
the impeller housing.
25/30
MODELS
Pull up
on
the driveshaft and remove the drive-
shaft with the water pump assembly from the
gearcase. Remove the water pump assembly
from the driveshaft.
Remove the
impeller plate and gasket. Discard
the gasket.
Remove the water pump grommet,
all O-rings,
and the shift
rod
bushing from the impeller hous-
ing.
E
o
U
Qj
)(
~
Qj
~
ii
265 E
