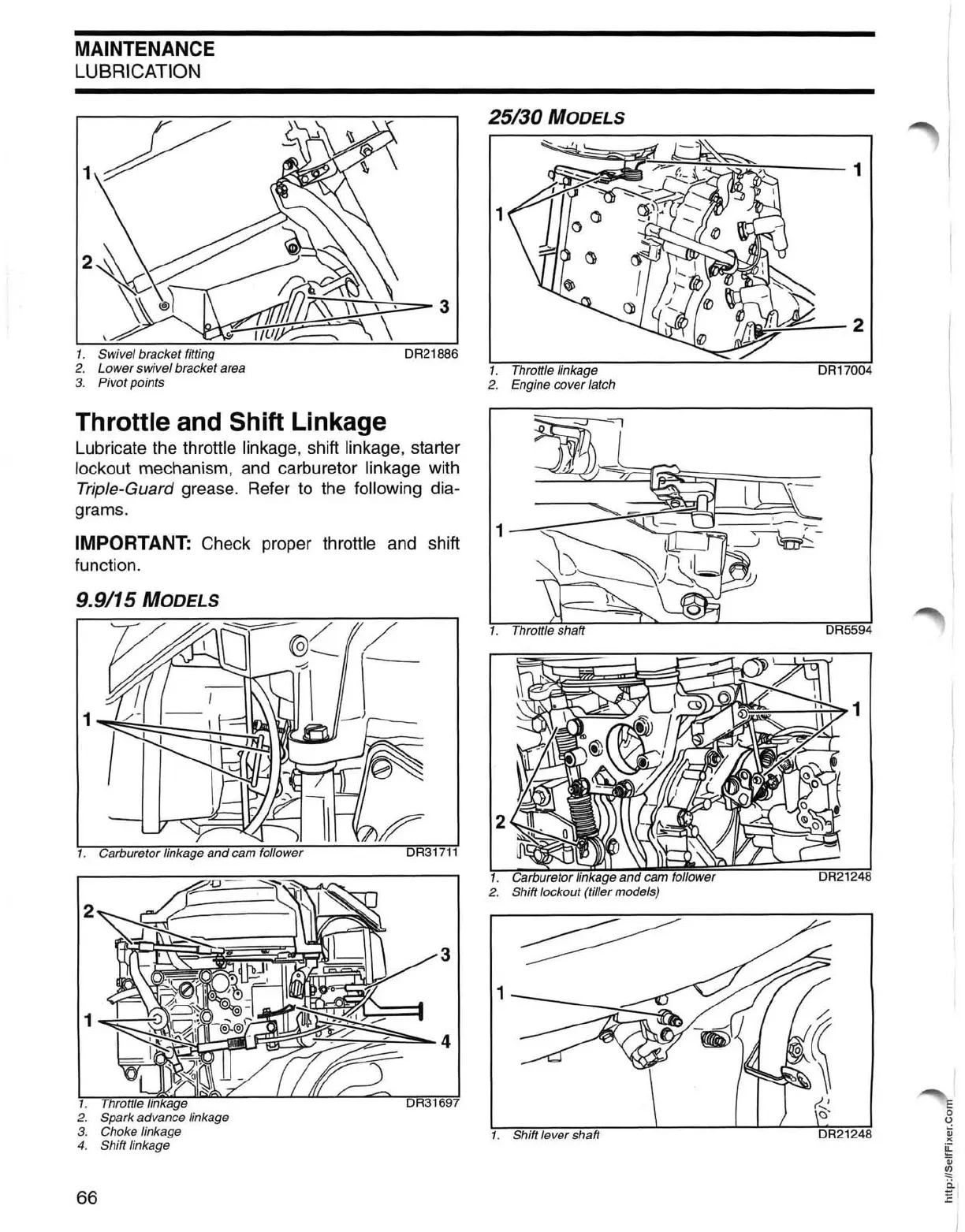

MAINTENANCE
LUBRICATION
1. Swivel bracket fitting
2. Lower swivel bracket area
3. Pivot points
Throttle and Shift Linkage
DR21886
Lubricate the throttle linkage, shift linkage, starter
lockout mechanism, and carburetor linkage with
Triple-Guard grease. Refer to the following dia-
grams.
IMPORTANT: Check proper throttle and shift
function.
9.9/15 MODELS
66
25/30 MODELS
1
1. Throttle linkage
2. Engine cover latch
1.
Shift lever shaft
Q!.:..,~-- 2
DR17004
DR5594
DR21248
o
o
~
><
~
OJ
~
ii i
~ I

Johnson J30ELSRE Specifications

General

Horsepower	30 hp
Cylinders	3
Starting System	Electric
Engine Type	2-Stroke
Fuel Induction	Carbureted
Steering	Remote
Gear Ratio	2.00:1
Alternator Output	6 Amps
Full Throttle RPM Range	5000 - 6000 rpm
Shaft Length	20 in (508 mm)
